Fan Coil Unit Cassette - 4 Pipes and 1 Spigot

Pictures

Features Embedded in the Part

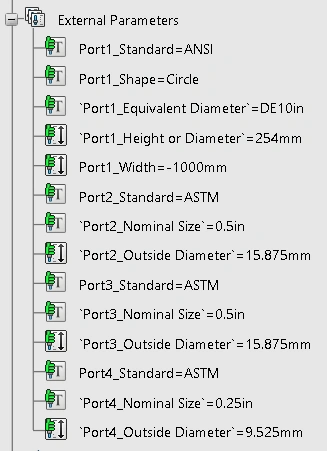

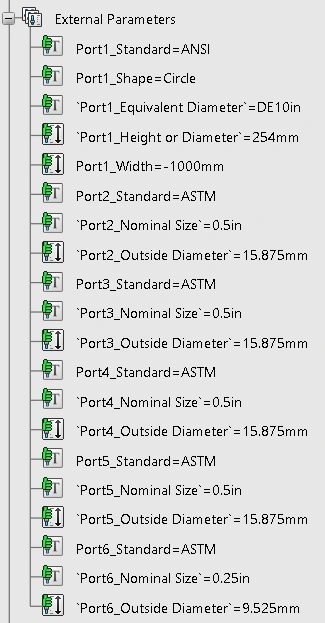

Configurable port parameters that control the geometry of the piping ports and spigot.

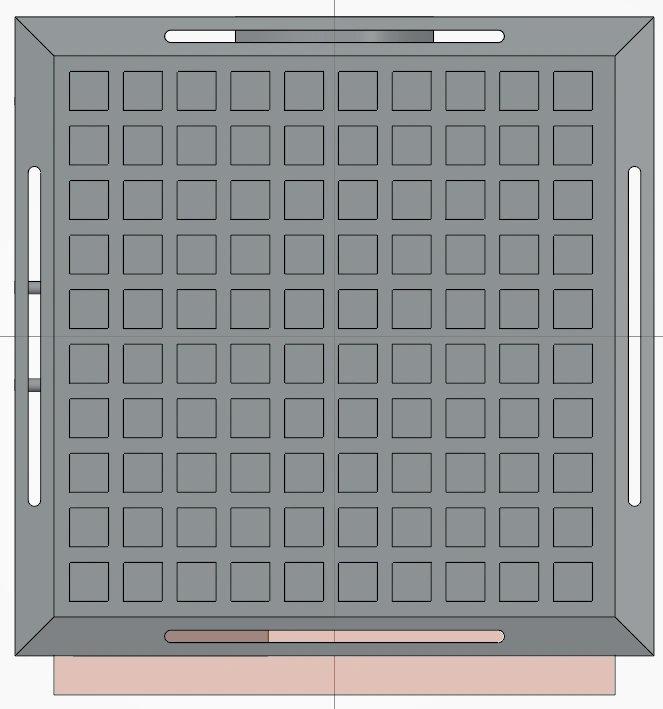

1. Finish: Select the type of cover plate

   1. Grill



   2. Solid

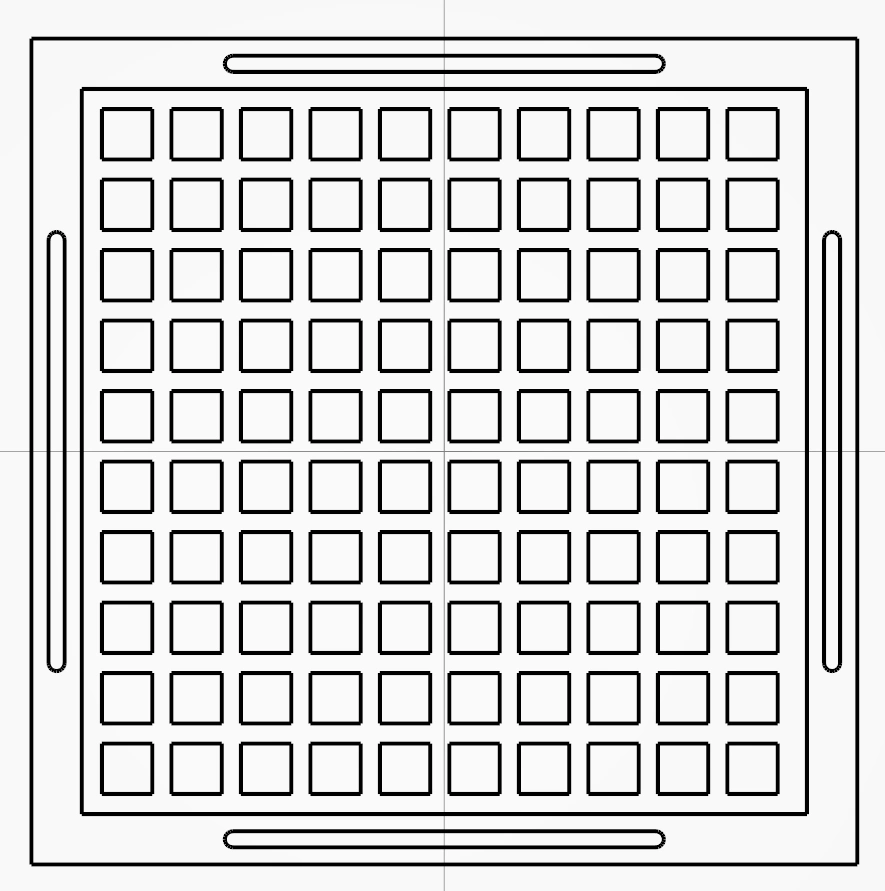

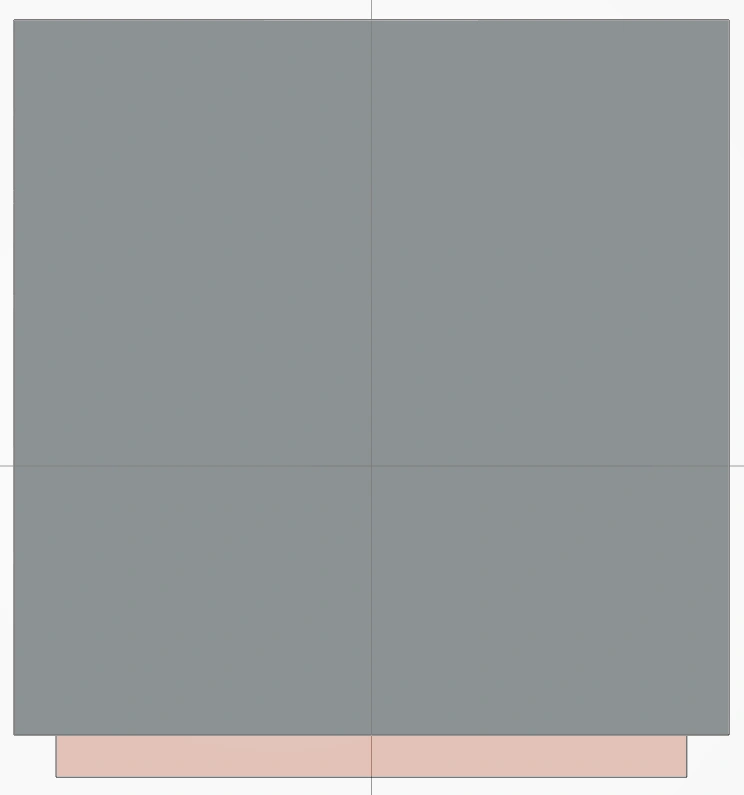

2. Visibility: Change the visibility of the equipment between 3D representation, 2D representation or both.

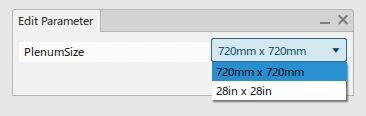

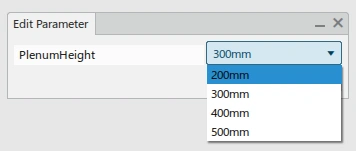

3. Plenum Size/Height: Select the overall size of the chilled beam plenum.

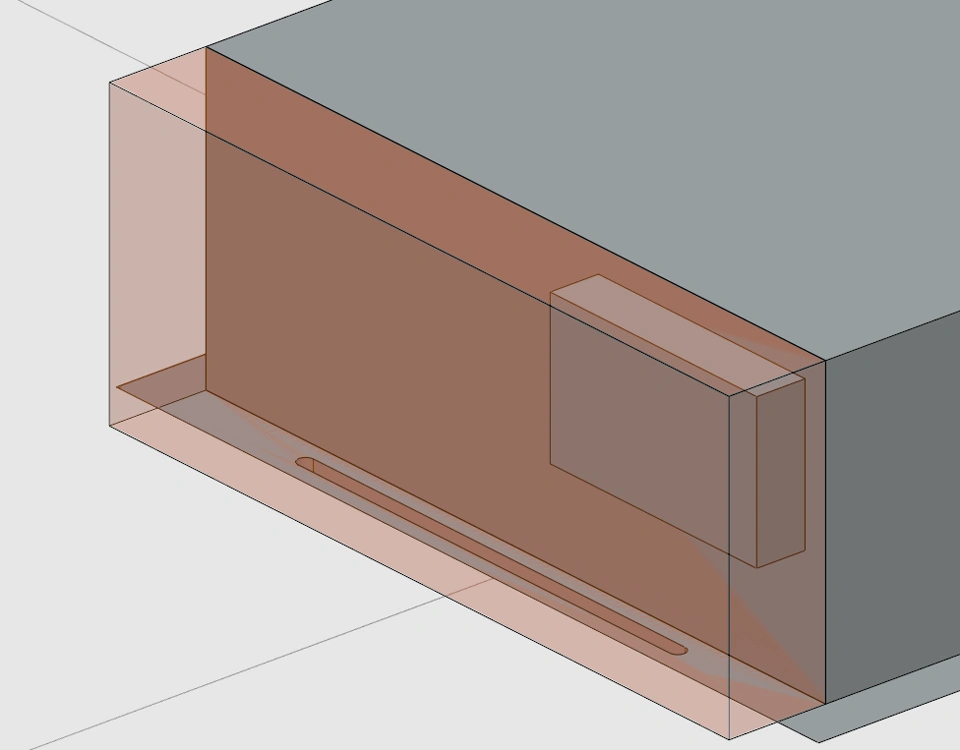

4. Electrical box location/Clearance: Configure the location of the electrical box and the size of the required clearance around it.

5.

   Chilled/Heated/Drain ports and Spigot horizontal and vertical offsets:

   1. Horizontal: Controls the horizontal location of the ports using a ratio of the total width referenced from the mid-plane



   2. Vertical: Controls the horizontal location of the ports using a ratio of the total width referenced from the mid-plane


6. Plate Thickness: Change the thickness of the cover plate.

3DXML
