Chilled Beam - Passive - 2 Pipes

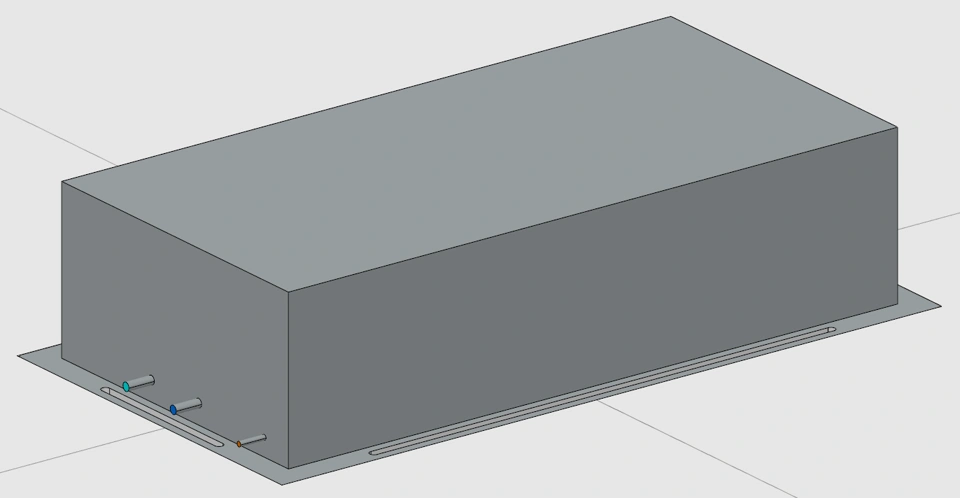

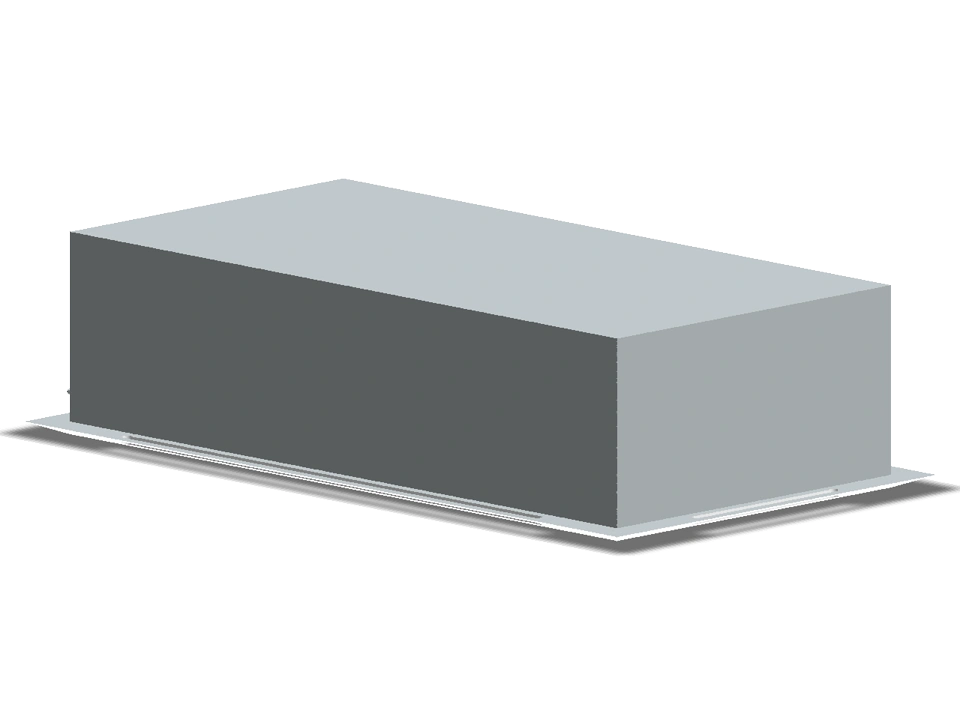

Pictures

Features Embedded in the Part

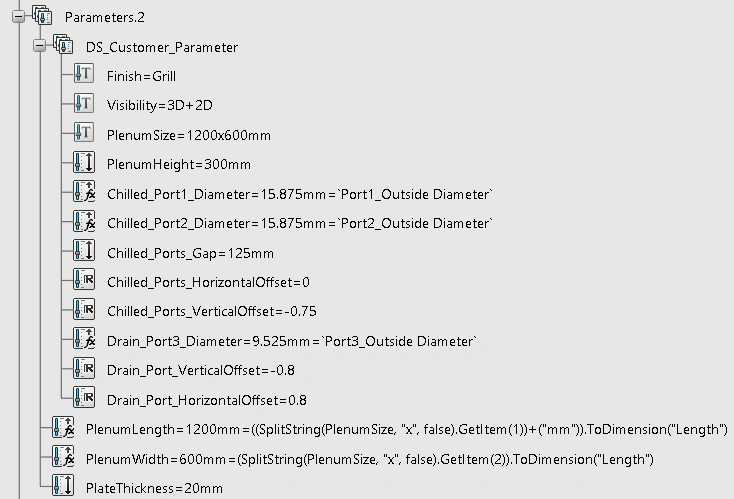

Configurable port parameters that control the geometry of the piping.


1. Finish: Select the type of cover plate

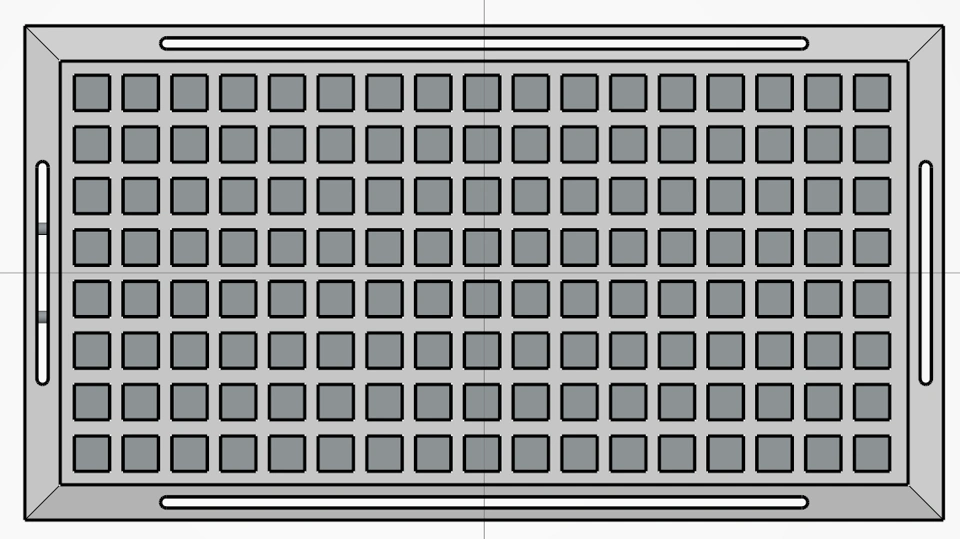

   1. Grill



   2. Solid


2. Visibility: Change the visibility of the equipment between 3D representation, 2D representation or both.
3. Plenum Size/Height: Select the overall size of the chilled beam plenum
4. Chilled/Heated/Drain ports horizontal and vertical offsets:

   1. Horizontal: Controls the horizontal location of the ports using a ratio of the total width referenced from the mid-plane



   2. Vertical: Controls the horizontal location of the ports using a ratio of the total width referenced from the mid-plane


5. Plate Thickness: Change the thickness of the cover plate.

3DXML
