Part and Assembly Design

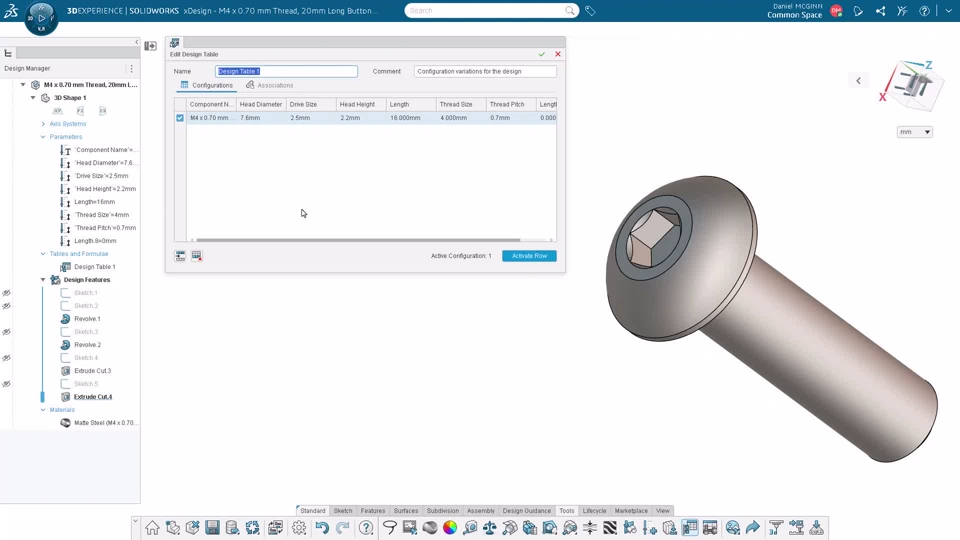

Create Part Families with Design Tables

Create and manage part families from a single master design to streamline product development and reduce repetitive work. Define key parameters and use design tables to generate multiple configurations, each representing a unique variation of the part. Organize these configurations into part families, validate instances before creation, and generate them in bulk with confidence. Update designs efficiently by modifying the master model and regenerating the family, or create new revisions to propagate changes across all variants. Reduce manual modeling effort, ensure consistency, and accelerate the creation of configurable product designs.

Additional Enhancements

• Visual settings are now preserved across sessions, so your display preferences remain consistent each time you return.
• Attach hole callouts to either the inside or outside edge of a counterbore for clearer drawings.
• Component updates now correctly reflect the modification date and time for physical products.
• Apply recommended settings in one click with a new welcome message for platform administrators, or anytime from the settings menu on the landing page.
