Electrical 3D

The following enhancements apply to SOLIDWORKS Electrical 3D with a single-user license and a device term license.

Analyze Changes across SOLIDWORKS Electrical Schematic and SOLIDWORKS 3D

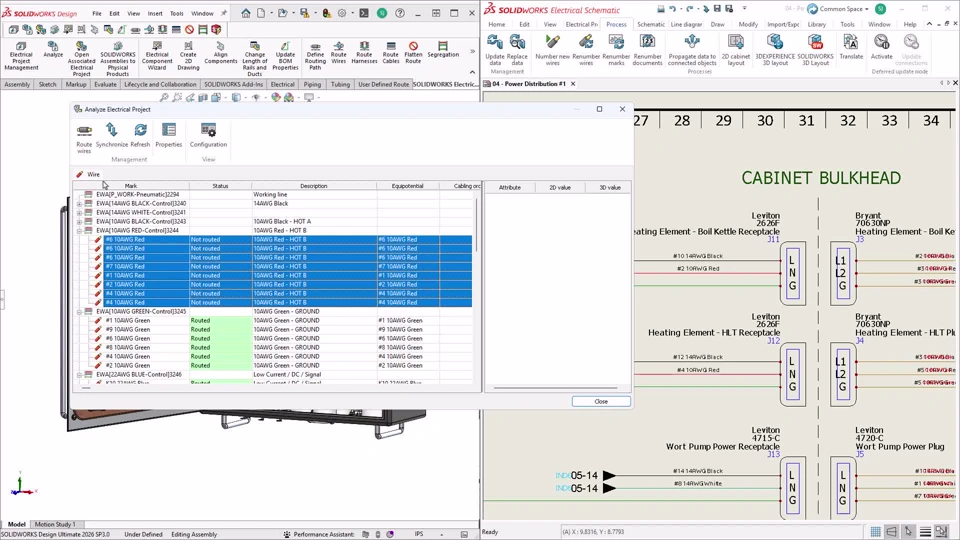

Keep your electrical projects fully consistent from schematic to assembly without the manual back-and-forth. Now in SOLIDWORKS Electrical 3D, you can compare your 3D assembly directly against your 2D electrical schematic, checking locations, components, wires, cables, and harnesses side by side, then resolve any gaps right there without leaving the dialog. This tackles a common pain point in complex multi-drawing projects where mismatches between 2D and 3D go undetected until late in the routing process, forcing time-consuming corrections and risking costly errors downstream.
