The following enhancements apply to DraftSight Professional, Premium, and Mechanical with a named-user license, and Collaborative Designer for DraftSight.

Core Drafting Improvements

Entity LWeight and Plot Control

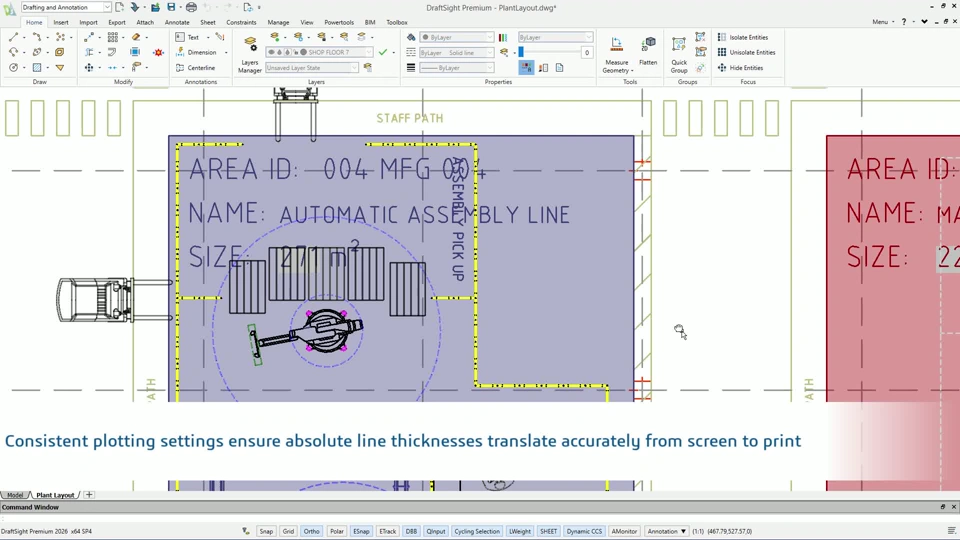

The new LWeight command lets you define and manage absolute entity thicknesses by layer or block, ensuring clarity on screen and when plotting.

Model/Sheet Status Bar Icon Toggle

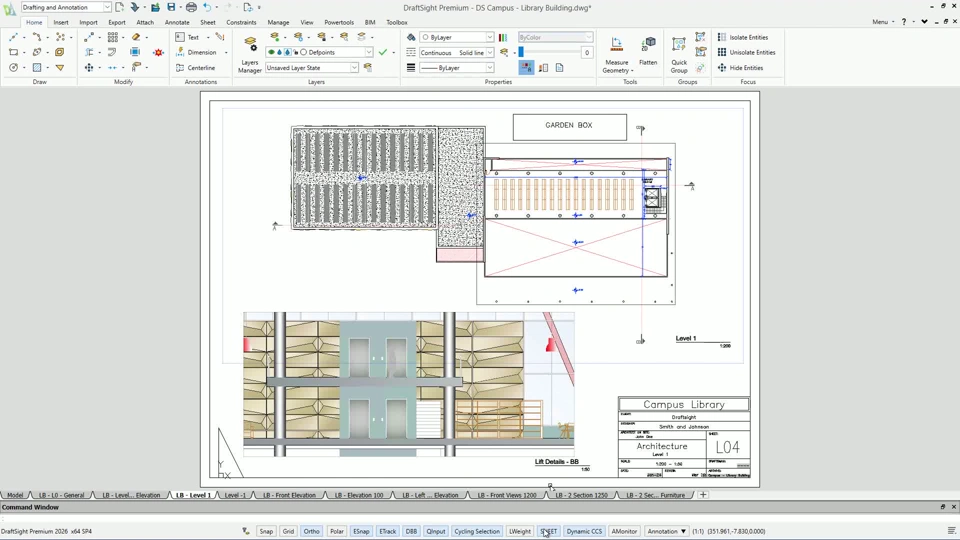

Use the dynamic status bar button to streamline navigation between Model and Sheet. From the Model tab, jump instantly to your most recently accessed layout sheet. From a layout sheet, toggle between editing the sheet and activating a viewport for model space edits.
