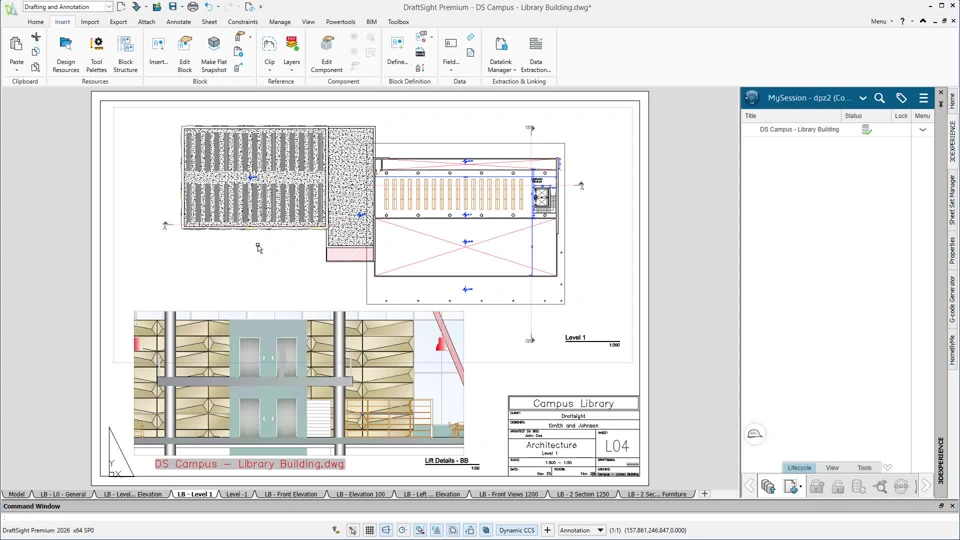

Our Favorites

These 6 features represent the most impactful enhancements in this release, chosen for their ability to significantly improve workflow efficiency and user productivity.

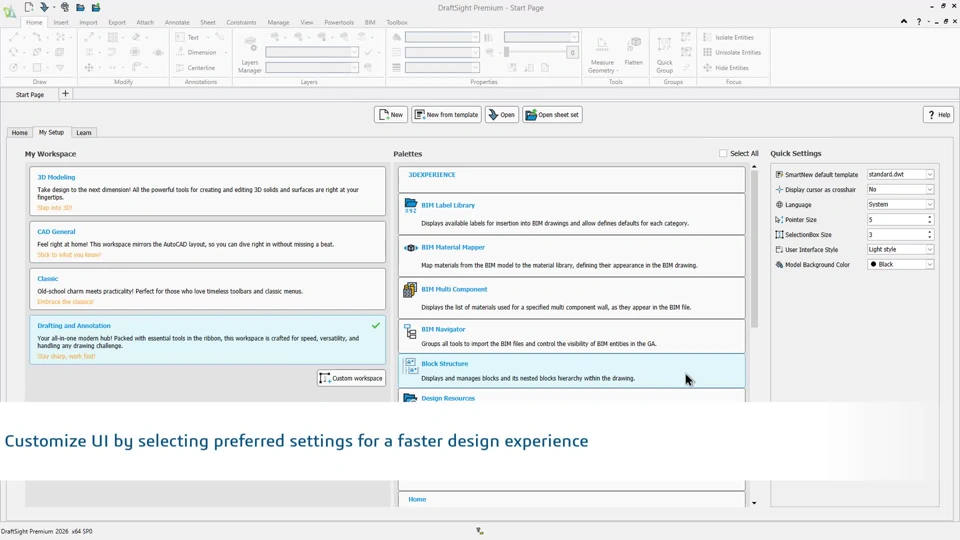

Start Page Tab: Opens DraftSight faster and puts your recent files, templates, and common tools right at your fingertips - no more hunting through menus to get started.

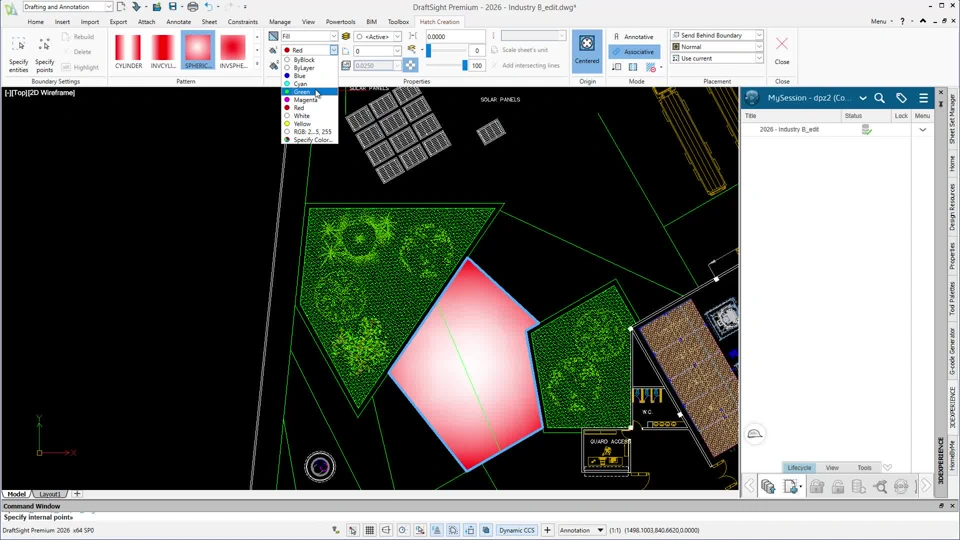

Contextual Ribbon for Gradients and Patterns: The hatching and pattern tools now appear exactly when you need them, so you're not searching through ribbons while you're in the middle of working.
Floating Document Window: Pop out any drawing into its own window and drag it to a second monitor. Perfect for comparing drawings side by side or referencing one file while working on another.

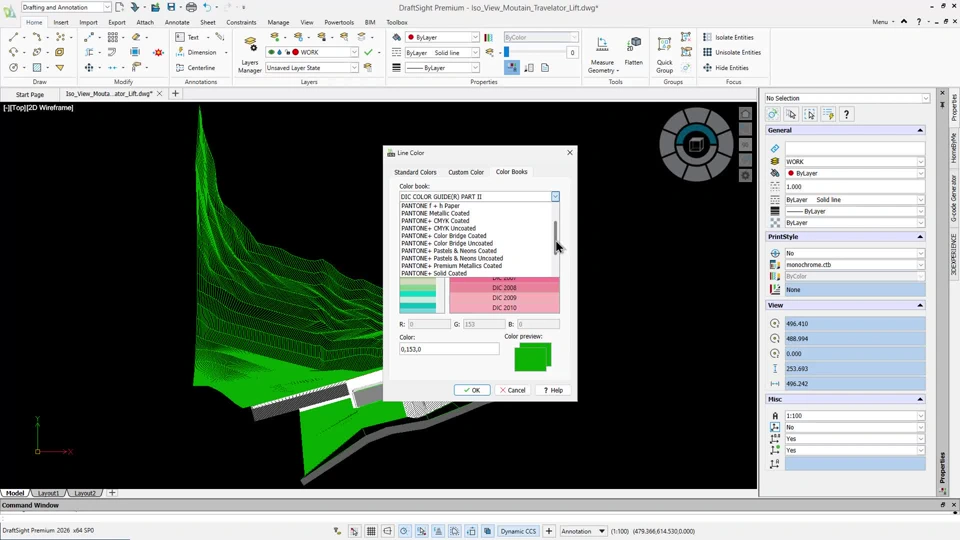

Color Books: Access industry-standard color libraries like PANTONE or RAL directly in DraftSight. Great for maintaining brand colors or meeting specific industry color requirements.
DIESEL Expressions: Automatically update text fields in your drawings (like project names, dates, or part numbers) without manual editing. Your title blocks and labels stay current as file properties change - no more forgetting to update revision dates.
Power Dimension Tool: Automatically picks the right dimension type as you click, so you can dimension faster without constantly switching tools. Less clicking, more accurate dimensions.

User Interface

[NEW] Start Page Tab ⭐

Streamline startup workflow and improve productivity from the moment DraftSight is launched. The centralized landing page reduces navigation time by putting all frequently used functions and resources right at the user's fingertips.
• Applicable to DraftSight Premium, and Mechanical only

[NEW] Contextual Ribbon for Gradients and Patterns ⭐

Enhance productivity by accessing hatching and pattern tools exactly when needed, reducing the time spent searching for commands and improving workflow efficiency with a contextual ribbon dedicated to the HATCH and PATTERN commands.

Applicable to DraftSight Professional, Premium, and Mechanical

Workspace Management

[ENHANCED] Manipulating ViewTiles

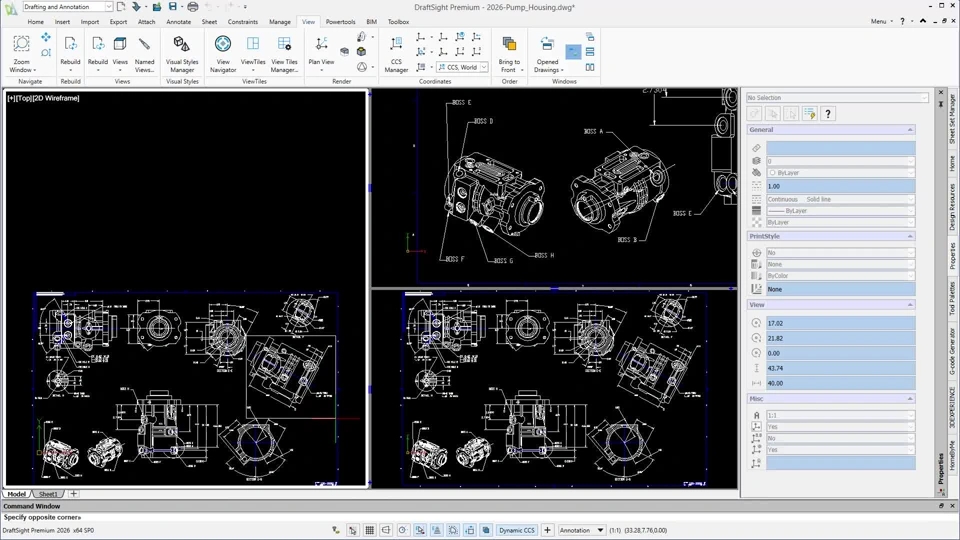

Customize workspace layout dynamically for optimal viewing of multiple drawing areas, improving multitasking capabilities and workspace flexibility by easily resizing, merging, and creating new ViewTiles with enhanced functionality.
• Applicable to DraftSight Premium and Mechanical only

[NEW] Floating Document Windows ⭐

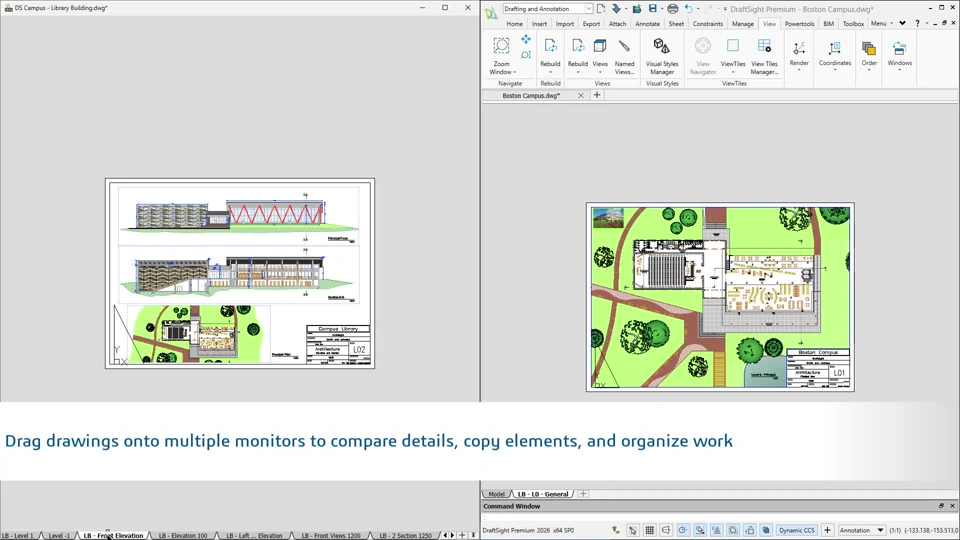

Enhance convenience with multi-monitor support and side-by-side drawing comparison, making it easier to copy, paste, and multitask across different projects by utilizing the floating document windows outside the main application.

Applicable to DraftSight Premium and Mechanical only

Customization

[NEW] Color Books ⭐

Maintain precise color standards for branding, industry compliance, or consistent material representation, ensuring professional results that meet industry requirements by providing access to standardized custom color palettes (color books) within projects.
• Applicable to DraftSight Premium and Mechanical only

References and Data Management

[ENHANCED] Insert Formula Column in Data Extraction

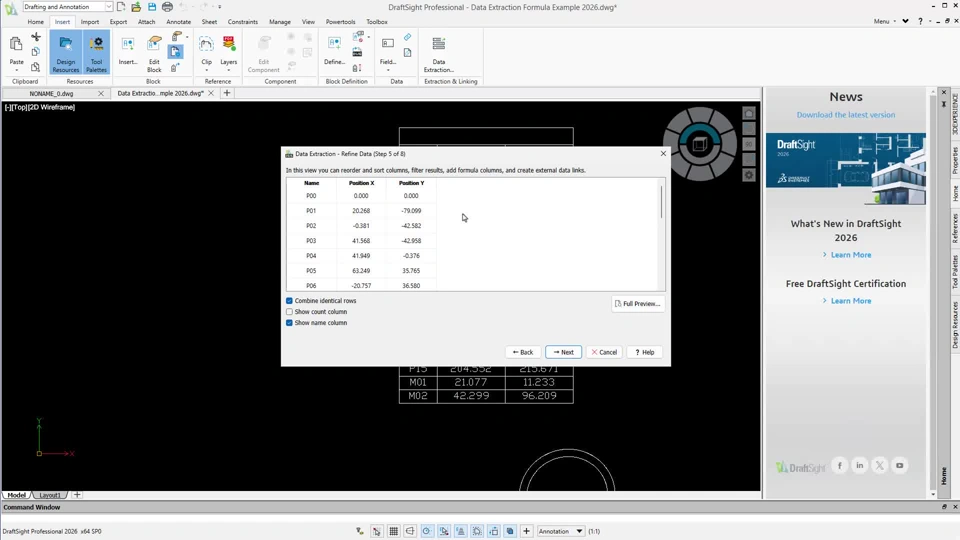

Extract and analyze drawing data more effectively with custom calculations, enabling advanced data processing and reporting capabilities directly from drawings through the ability to output as CSV and include customized fields for mathematical formulas.
• Applicable to DraftSight Professional, Premium, and Mechanical

Dynamic Content

[NEW] DIESEL Expressions ⭐

Create intelligent, self-updating drawings that maintain accuracy automatically as properties change, reducing manual updates and the risk of outdated information through the support of DIESEL Expressions in the FIELD command.

DIESEL: Direct Interpretively Evaluated String Expression Language

* Applicable to DraftSight Professional, Premium, and Mechanical

Dimensioning

[NEW] Power Dimension Tool ⭐

Create accurate dimensions faster with intelligent automatic dimension type selection, ensuring consistency across technical drawings while reducing the chance of dimensioning errors through the use of the Power Dimension tool.
• Applicable to DraftSight Mechanical only
