[SOLIDWORKS] 3D Structure Creator

AB

Functional Value

Experience design freedom with new methods for creating structure members and the ability to define custom plate profiles. Create a structure member by selecting a point and specifying a length or by selecting 2 existing members to add a secondary member between them. Break free from the standard plate libraries and design your own unique profiles based on a 2D sketch.

User Experience Value

Get a better view of your product structure with improvements to the product structure in the Design Manager & Breadcrumbs. Platform-wide user profiles facilitate a consistent user experience across all design applications. User preferences are saved to the platform so settings, such as mouse navigation settings, are consistent between applications.

I

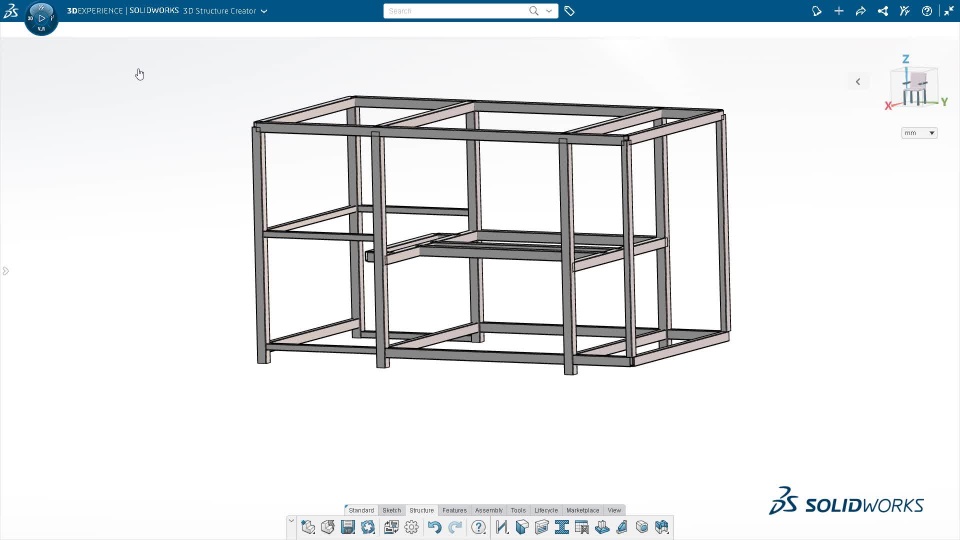

Highlights of the new 3D Structure Creator features and improved user experience.

I

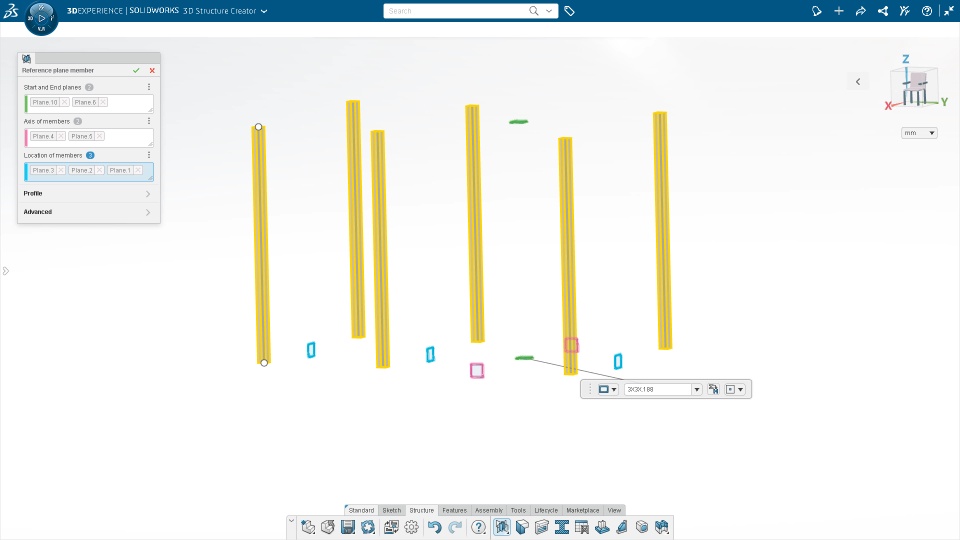

Improve productivity when creating complex shape structures with intersection based structure members.

I

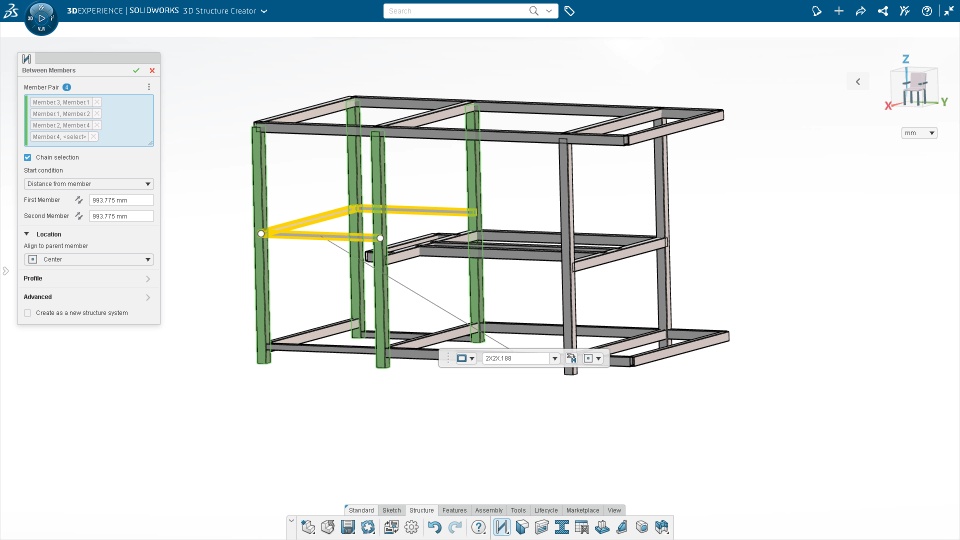

Create structure systems faster with the ability to define a secondary member between two other members.

I

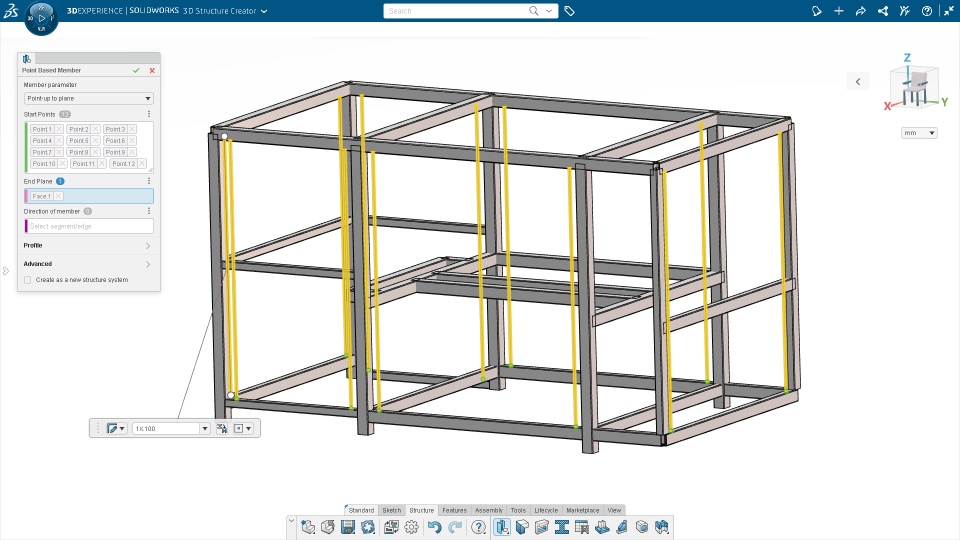

Increase your productivity with point based members. Spend less time sketching and more time designing.

I

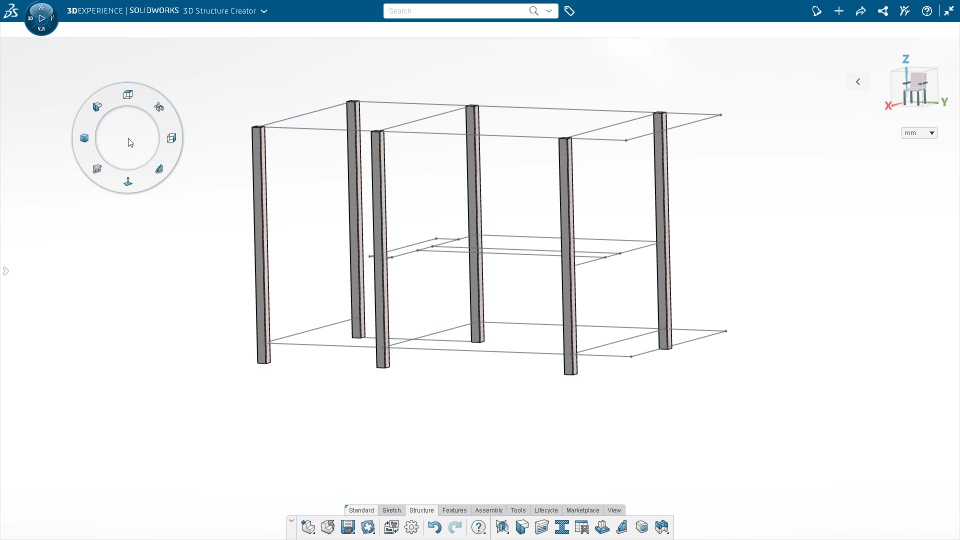

Reduce mouse travel and access common commands quickly with shortcut rings.

I

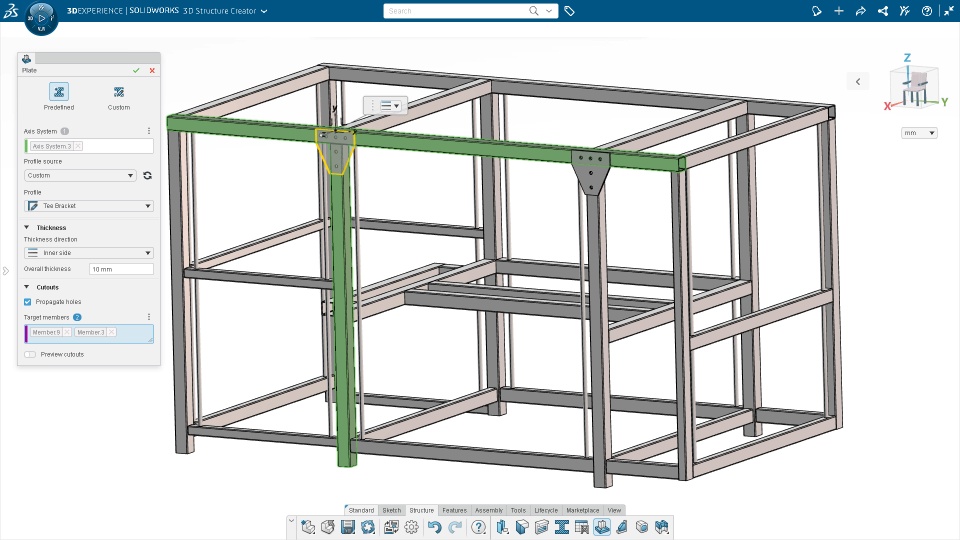

Experience design flexibility by creating custom plates and reusing them anywhere in the design.

I

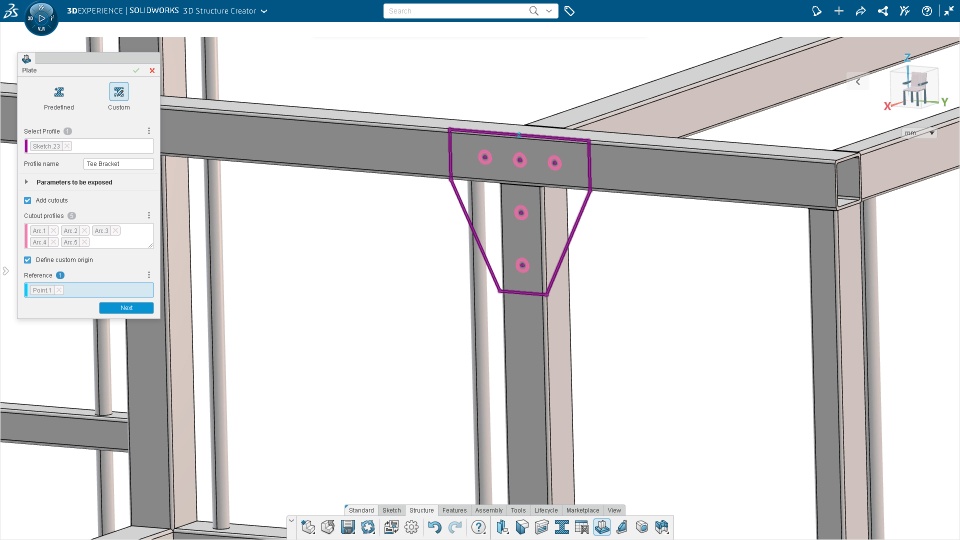

Save time and ensure proper hole alignment by propagating holes from custom plates to structure members.
