[SOLIDWORKS] 3D Mold Creator

Functional Value

Improved undercut detection and ability to use the undercut volume for modeling.

User Experience Value

Speed creation of mold inserts that share a common profile by creating multiple inserts from a single sketch.

I

I

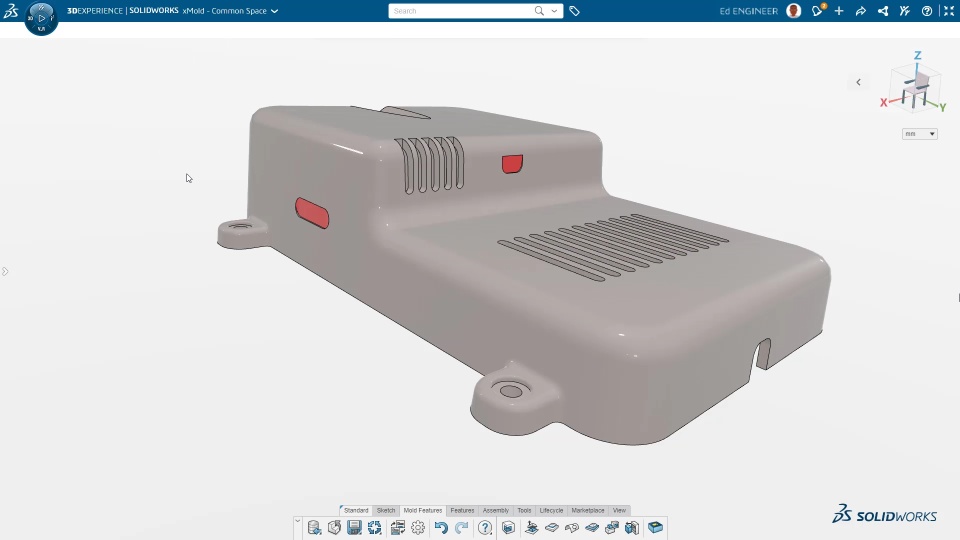

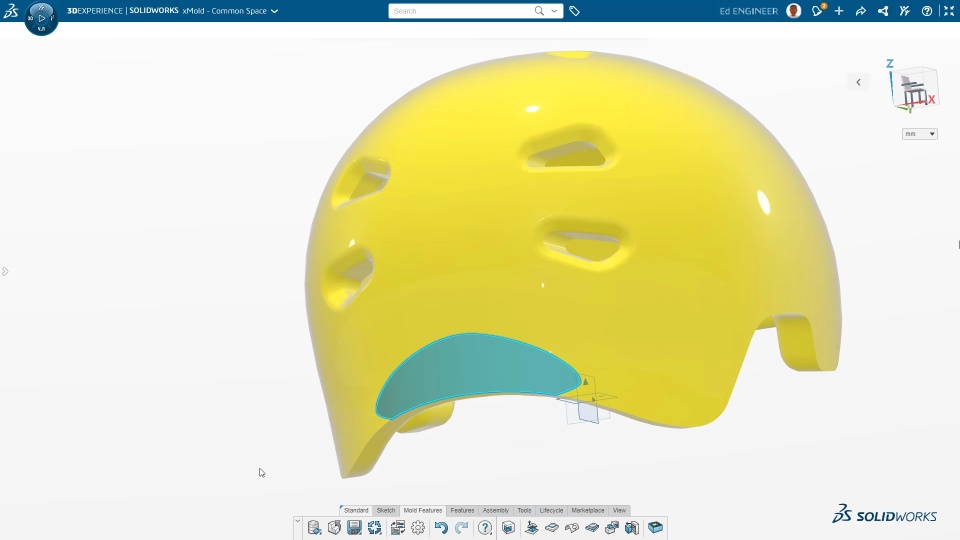

Displaying the volume of material that is trapped by an undercut improves understanding of undercut issues

I

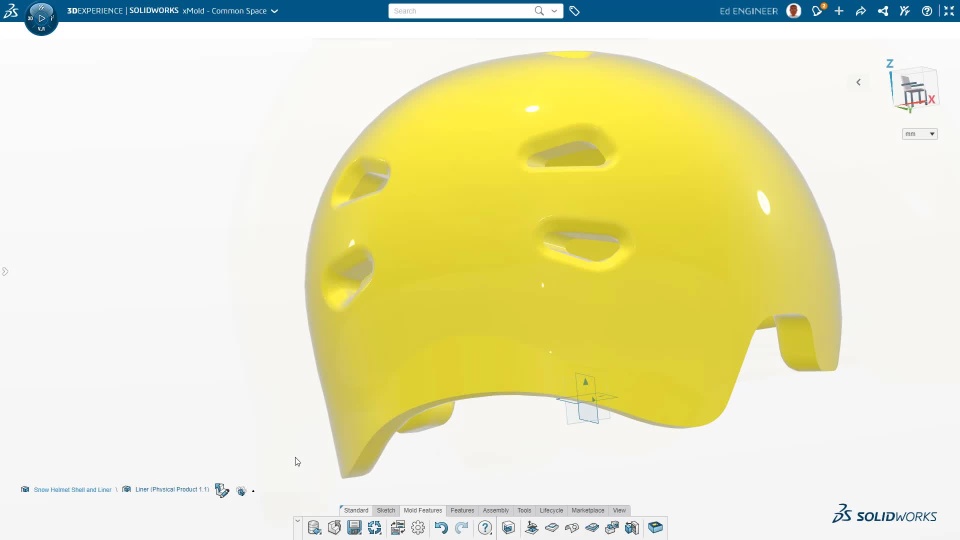

Repurpose undercut volumes to fill in part undercut areas and reduce the number of mold inserts required in the mold

I

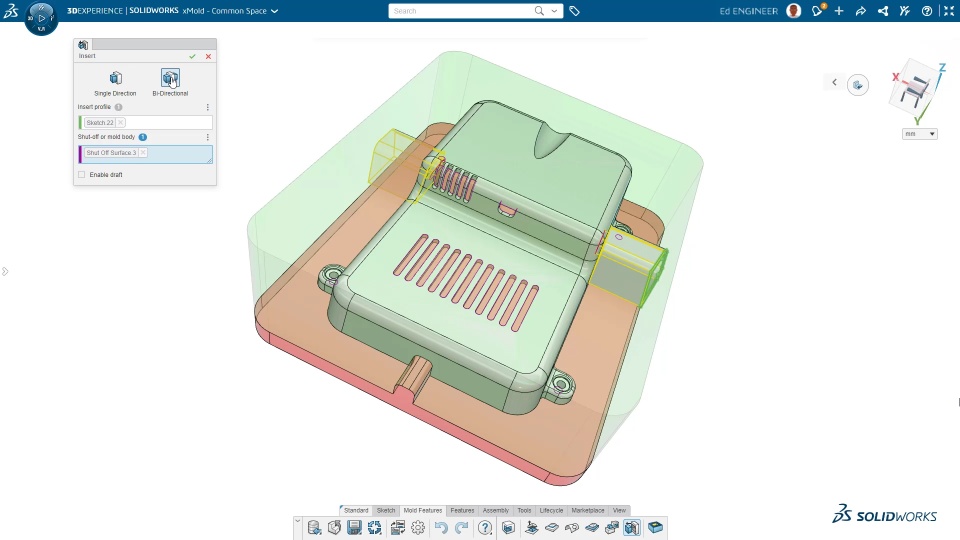

Improved mold inserts functionality speeds creation for symmetric parts with new flip and bi-directional options
