[DELMIA] Spare Parts Illustrator

AB

User Experience Value


Offers a dedicated solution for Spare Parts Illustration creation :
- Provides a web experience for model-based Spare Parts Illustration authoring. Leverages 3D data of spare items to be illustrated in the right context with views creation, items position manipulation and marker definition.

I
Streamline the creation and management of spare parts catalogs by leveraging service engineering data.

I

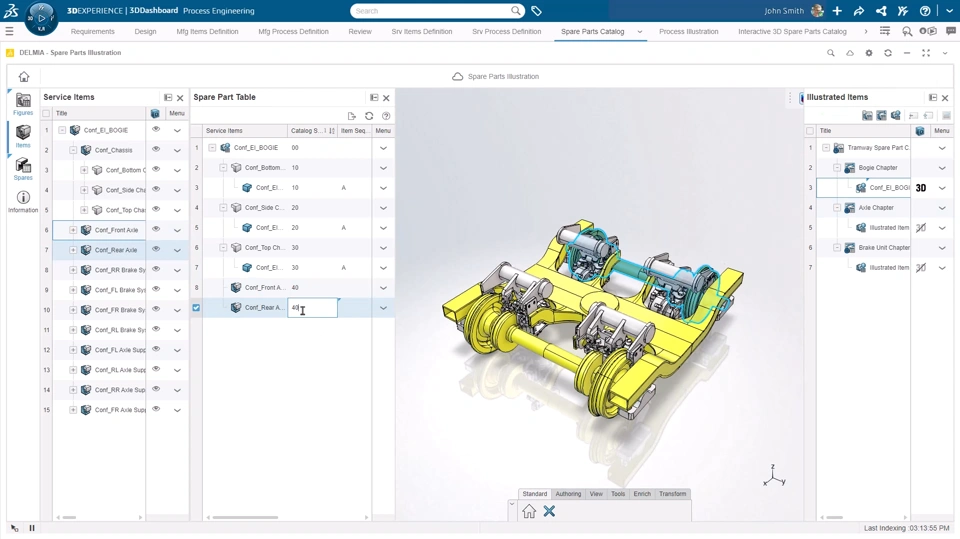

Assigning items to a figure populates its Spare Part Table. A codification (10, 20, ...) is automatically allocated for each assigned item.

I

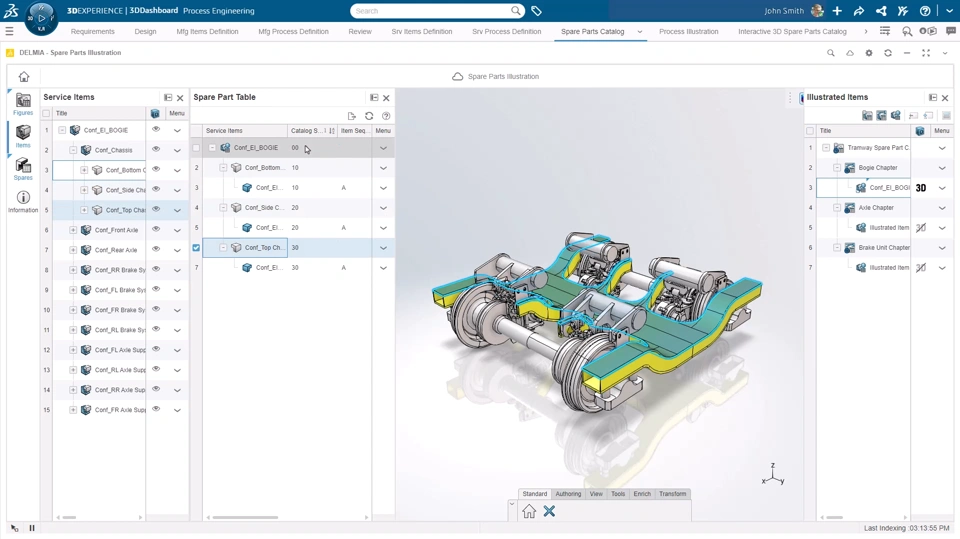

User can rework item codification in table. Giving same codification to different items will group them and display quantity accordingly.

I

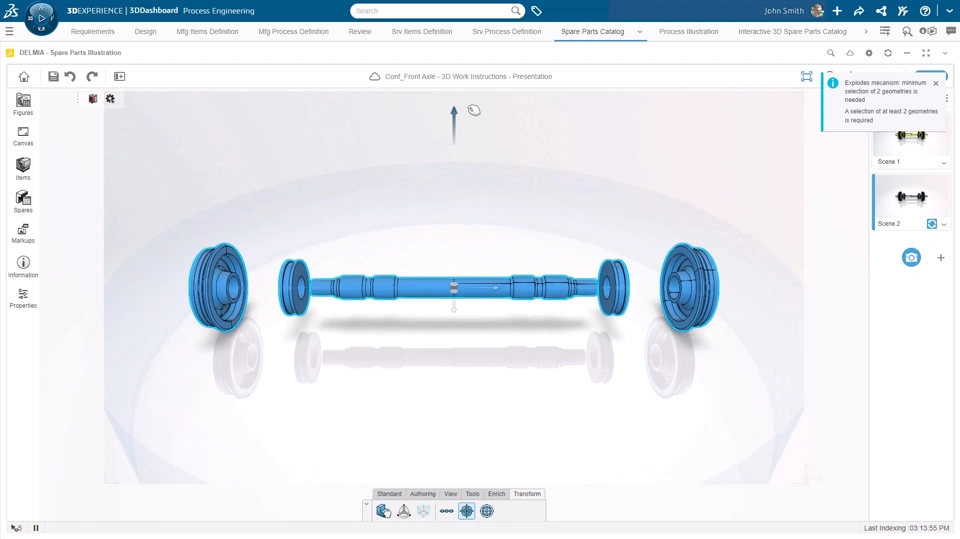

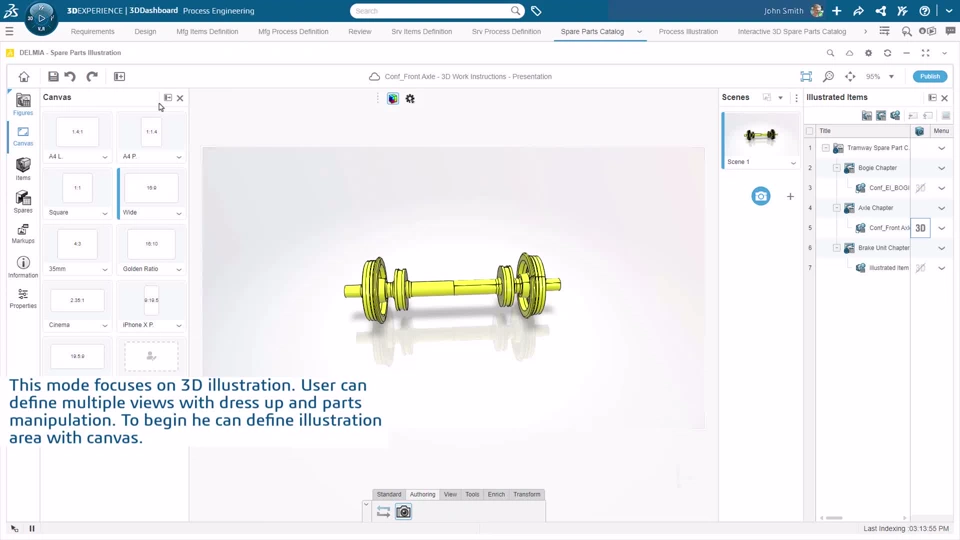

In illustration mode user can create exploded views by manipulating parts manually or by using available explode tools.

I

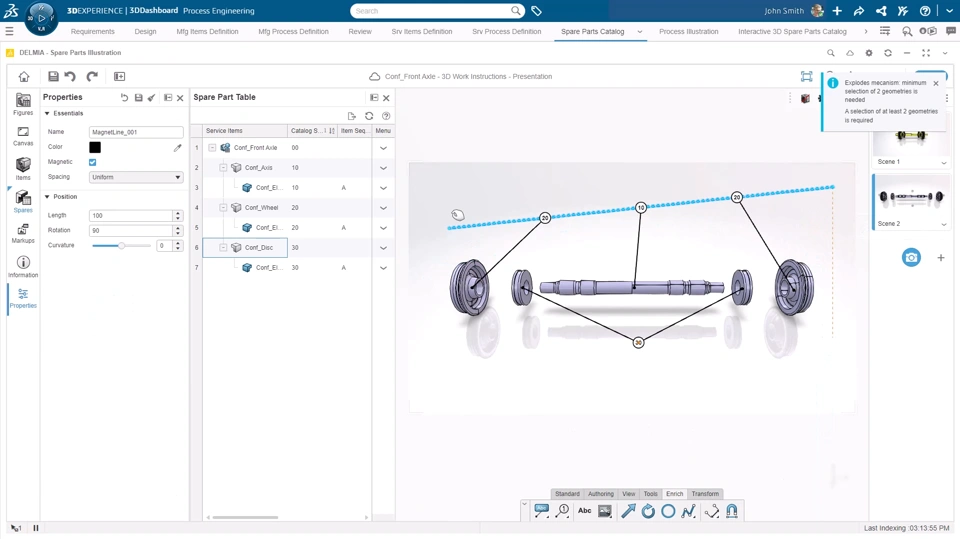

In illustration mode, in order to identify parts user can create callouts. Their value is driven by items' codification valuated earlier in Spare Part table.

I

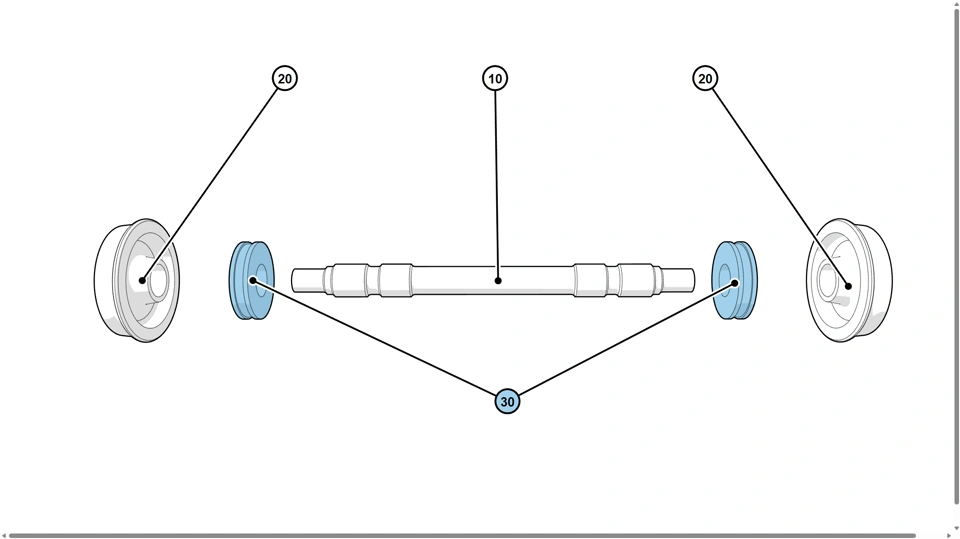

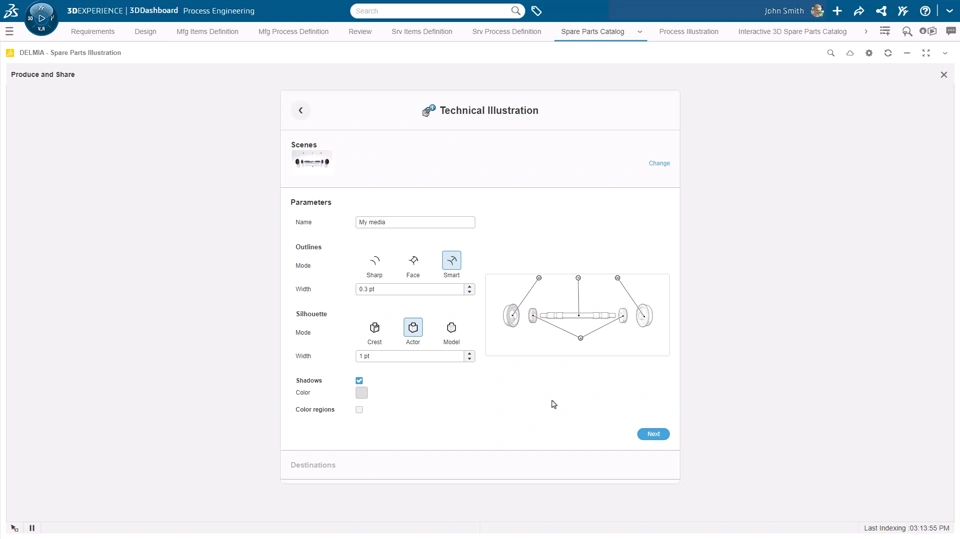

Main Spare Parts Illustrator output is interactive svg. It can be generated by selecting ''Technical Illustration''. Generated media can be downloaded or attached to figure.

I
Interactive SVG published with Spare Parts Illustrator can be integrated in technical documentation.
