[DELMIA] Factory Simulation Engineer

Functional Value

Improve space reservation capabilities for future equipment positioning by managing 3D extruded volumes generation out of any kind of 2D footprint.

User Experience Value

To better assess a complex discrete event simulation with several streams, the user can easily identify in 3D the critical path of the production. This information can also be exposed within output reports for further downstream review.

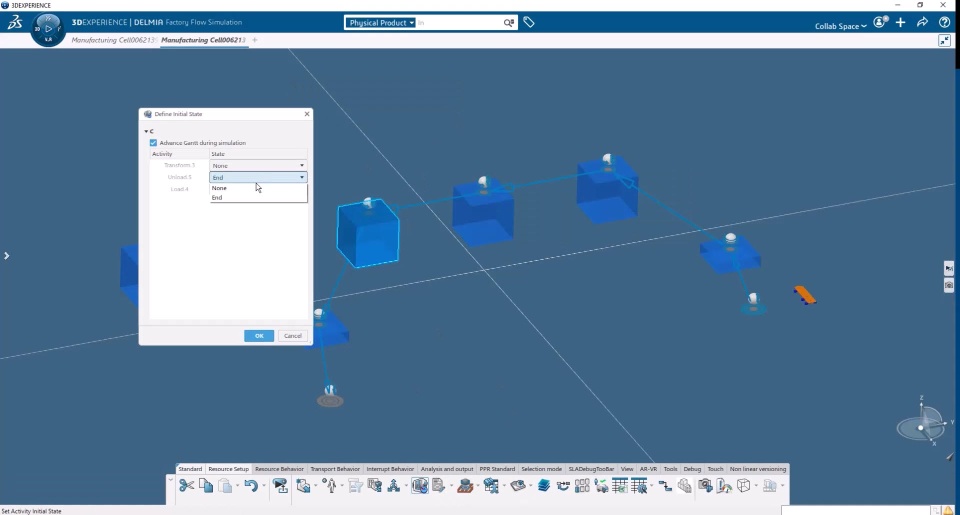

During a complex simulation with several streams, the user wants to see in 3D and in a graphical view of the line the critical path of the production to understand the behavior of the production system.


Display a graphical view of the line with the critical path of the production.

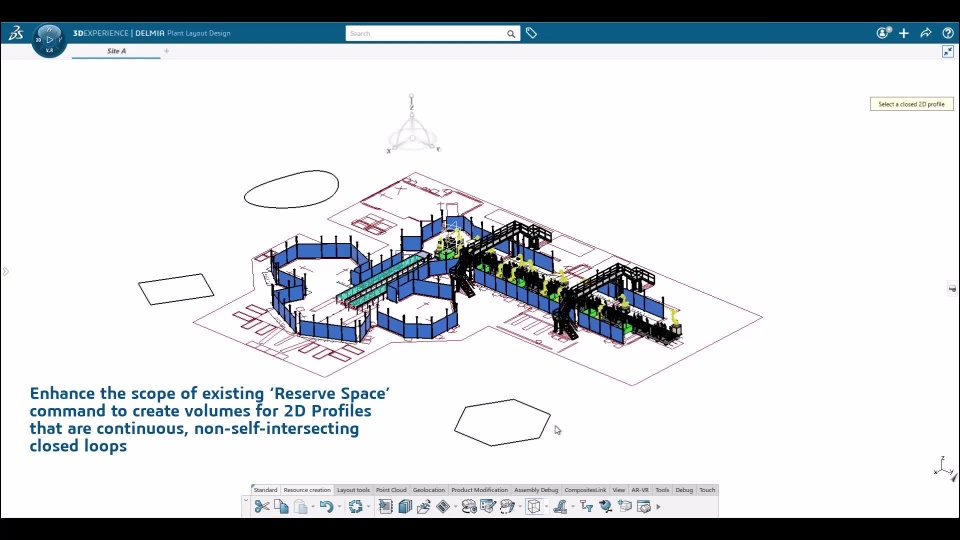

Extend the volume generation for all 2D profiles that are continuous and non-self-intersecting to allow space reservation for future equipment positioning.

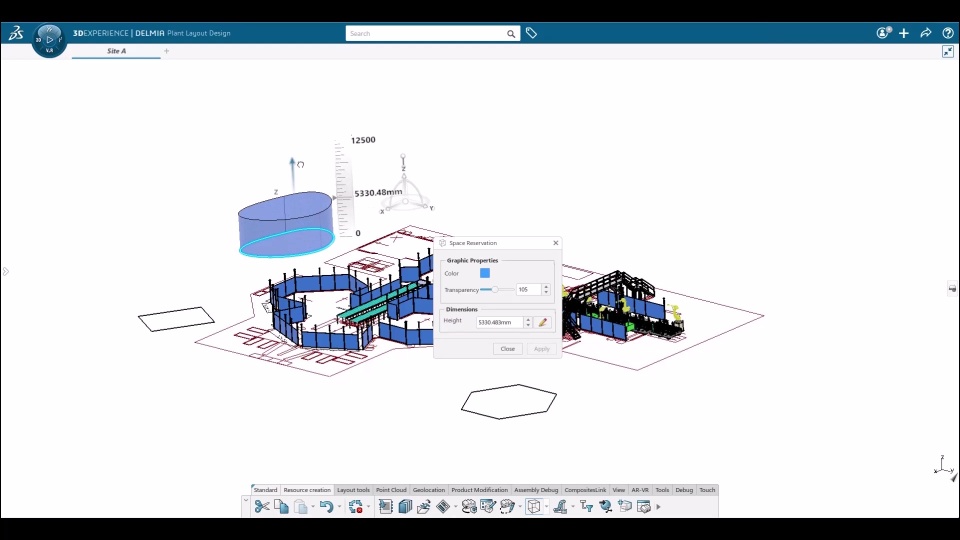

Create volumes "Space Reservation" for 2D Profiles that are continuous, non-self-intersecting closed loops.
