[CATIA] Style & Class-A Modeler

Functional Value

Improvements in OmniFillet, OmniBlendCurve, and OmniSurf ensure precise and error-free surface modeling, while enhanced shaders provide more realistic visualizations. These updates collectively streamline workflows, reduce errors, and elevate the overall design experience.

User Experience Value

Enjoy the latest updates for ICEM Design Experience which significantly enhance usability and surface modeling quality. Users benefit from a more intuitive interface with redesigned icons, expanded menus, and centralized controls, making navigation and tool access faster.

I

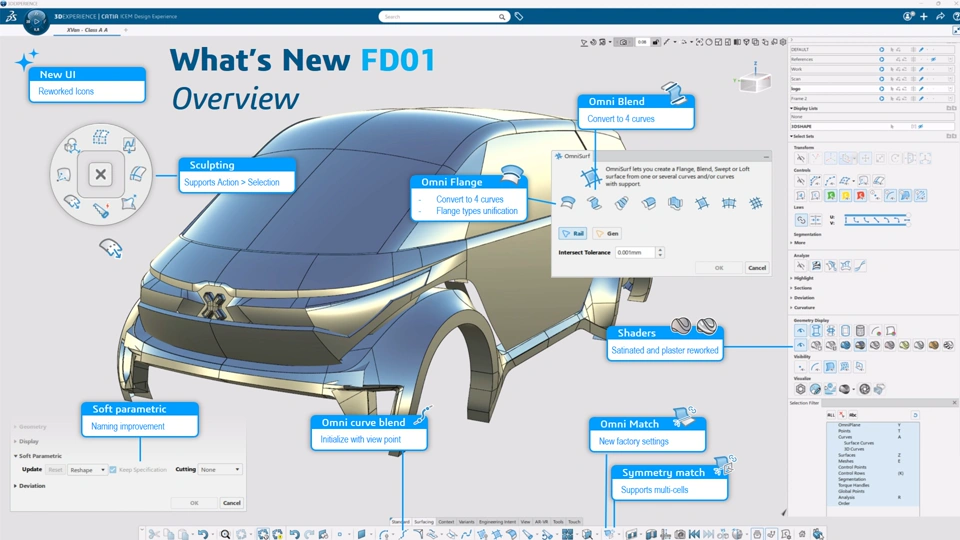

What was already delivered with 3DX-R2025x FD01

I

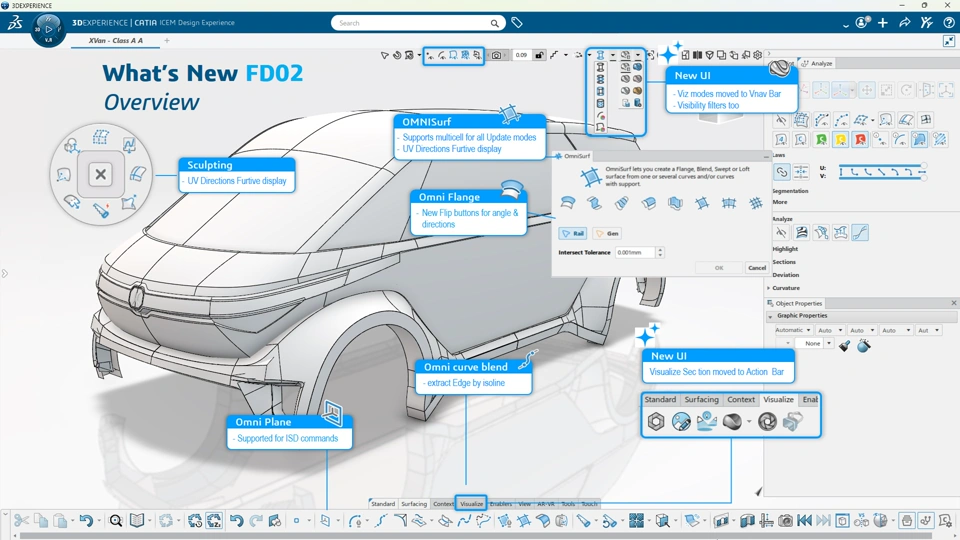

What is additionally provided with 3DX-R2025x FD02

I

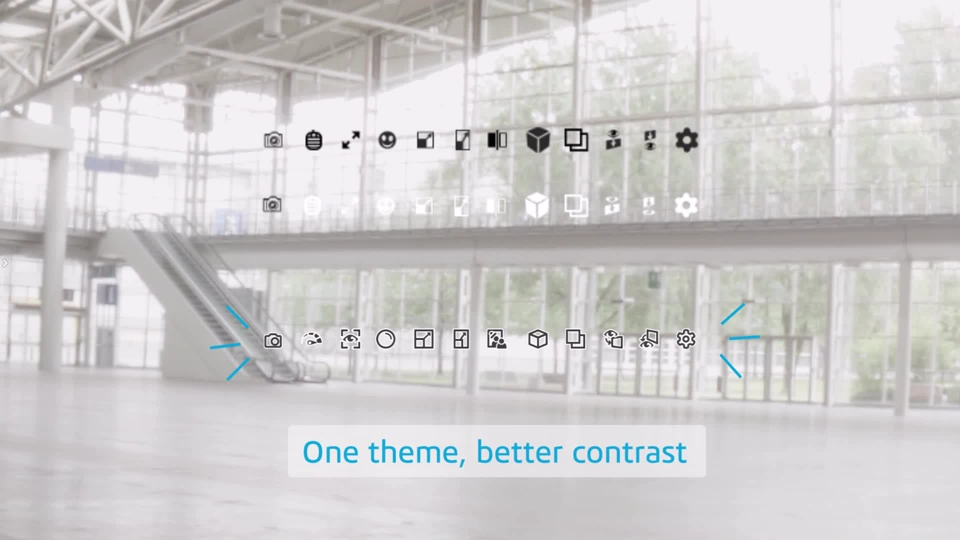

Enjoy a more intuitive and modern interface with fully redesigned icons, making it easier to identify and use tools efficiently (FD01).

I

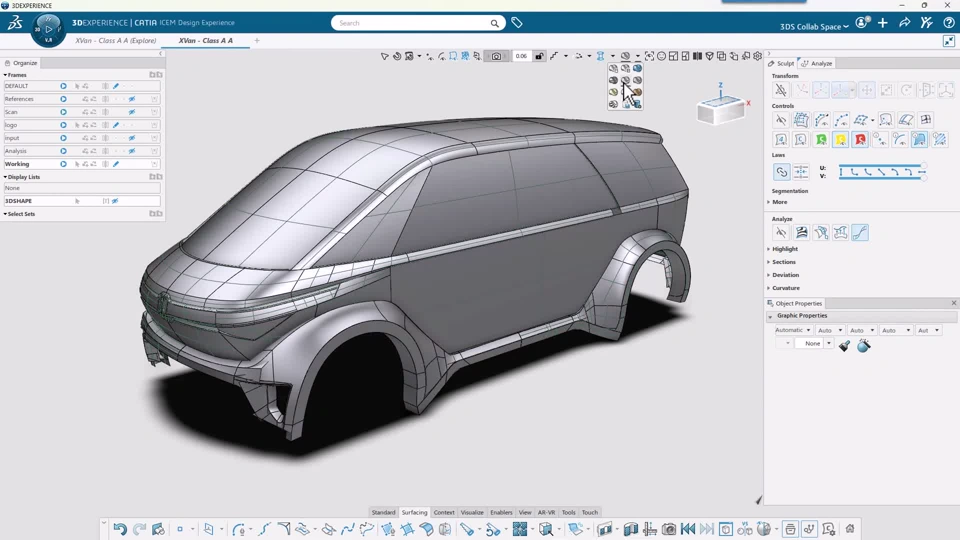

Centralized V-Nav Bar: Focus on your design with a streamlined V-Bar that removes unnecessary Rotate/Pan/Zoom options, reducing clutter and improving usability, and easily access pre-defined shaders, visualization modes, and visibility filters directly from the V-Nav bar, enhancing your design experience. Optimized command lay out: find all ‘Visualize’ commands conveniently located in a new section of the Action bar, making it faster to switch between different visualization modes.

I

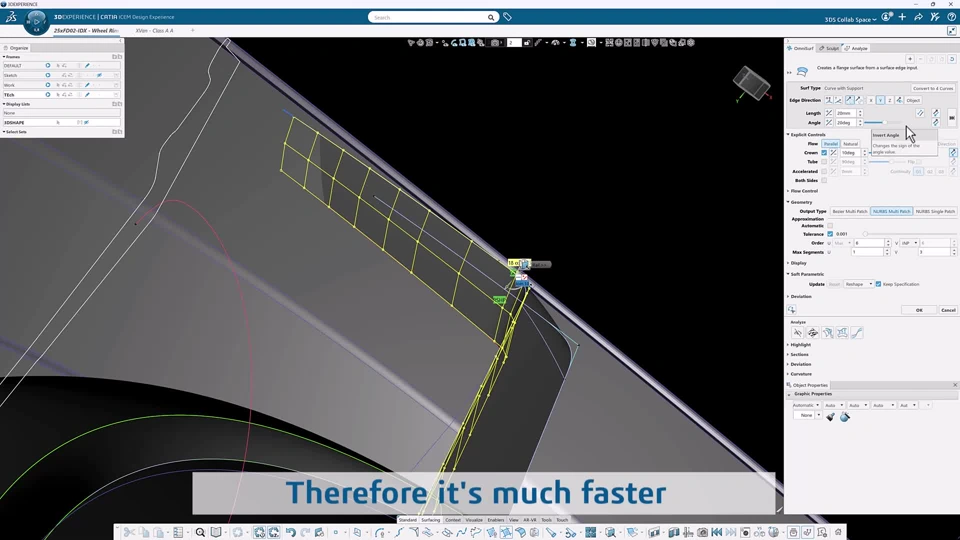

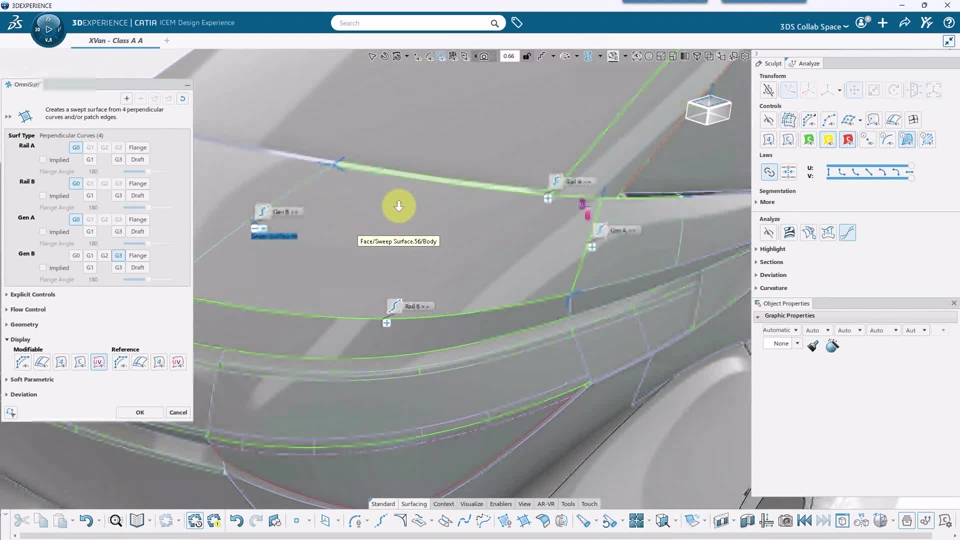

Enhanced UI: Manage Flange length/angle values and revert directions with a new, user-friendly interface, making complex surface adjustments simpler and more efficient.

I

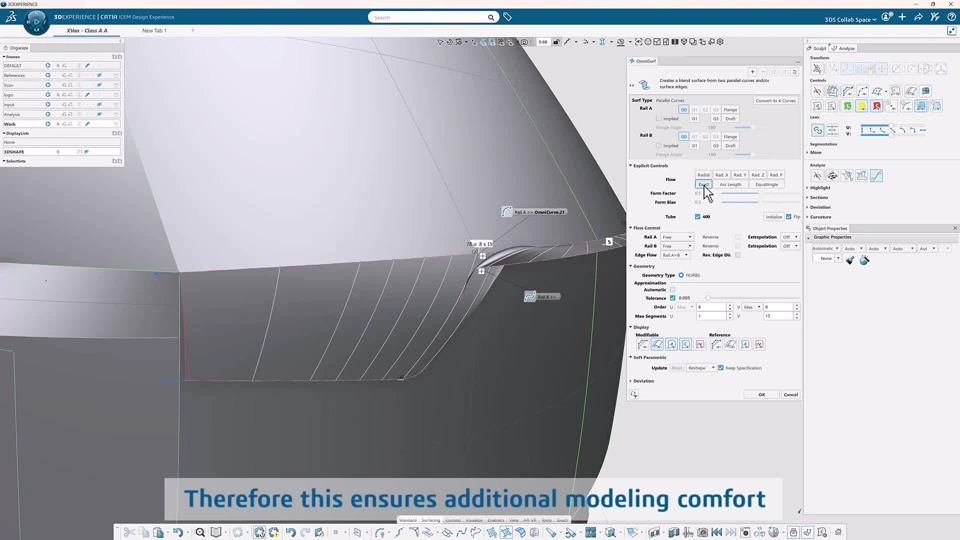

GSD/ISD Feature Support: Utilize OmniPlane as a plane or direction in GSD/ISD features, providing more flexibility and precision in your surface modeling.

I
Multi-Cells Situations: Ensure high-quality surfaces with condition checks and measurements for multi-cells situations, reducing errors and improving overall design integrity.

I

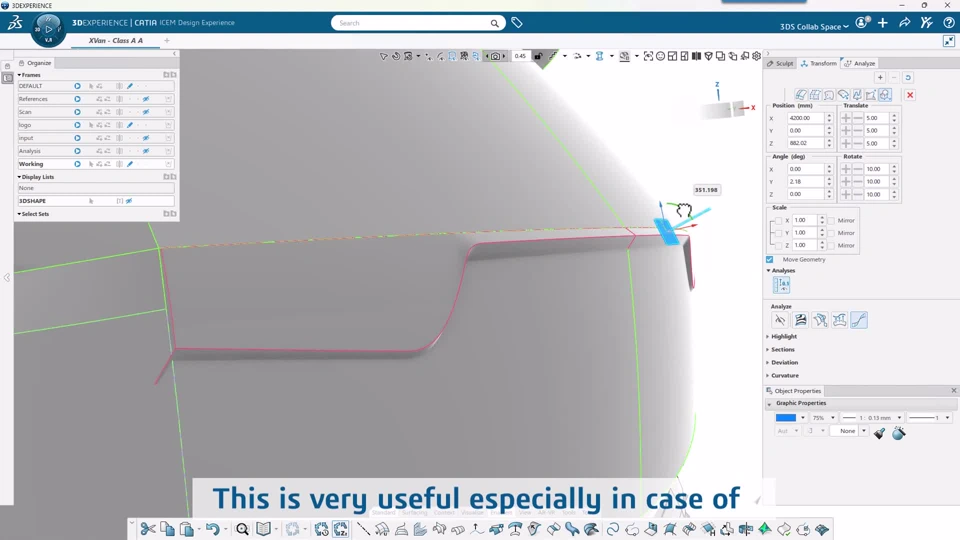

Furtive Display of U & V Directions: Gain better control over your fillet design with the furtive display of U & V directions, providing clearer visual feedback.

I

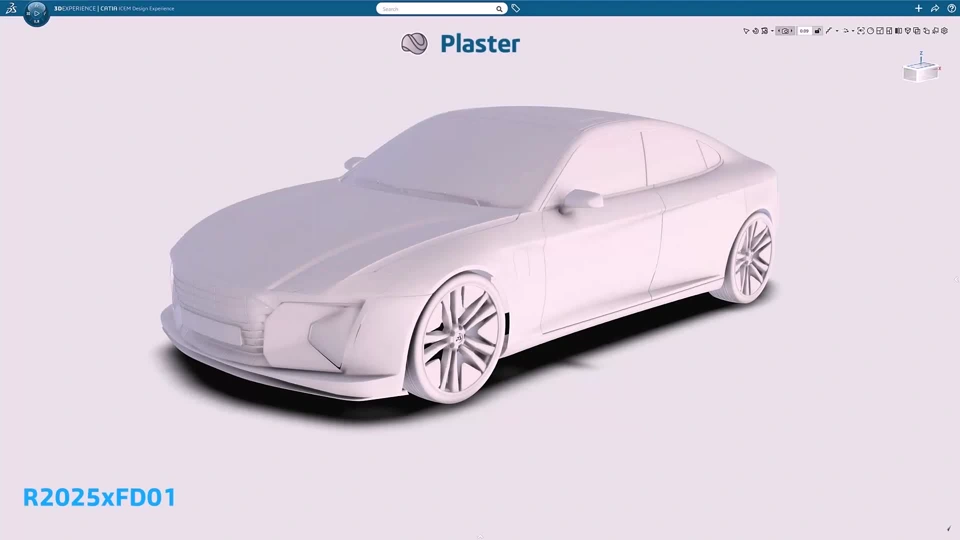

Improved Satinated & Plaster Shaders (FD01): Enhance your visualization with improved ground shadows, backplate, and lighting for Satinated and Plaster shaders, providing a more realistic and professional design presentation
