[CATIA] Structural Generative Designer

Functional Value

Improved overhang analysis with more realistic printability criteria and persistent result, for a faster compliance of design completion for additive manufacturing.

I
Video illustrating the Persistent Overhang Analysis command.

I

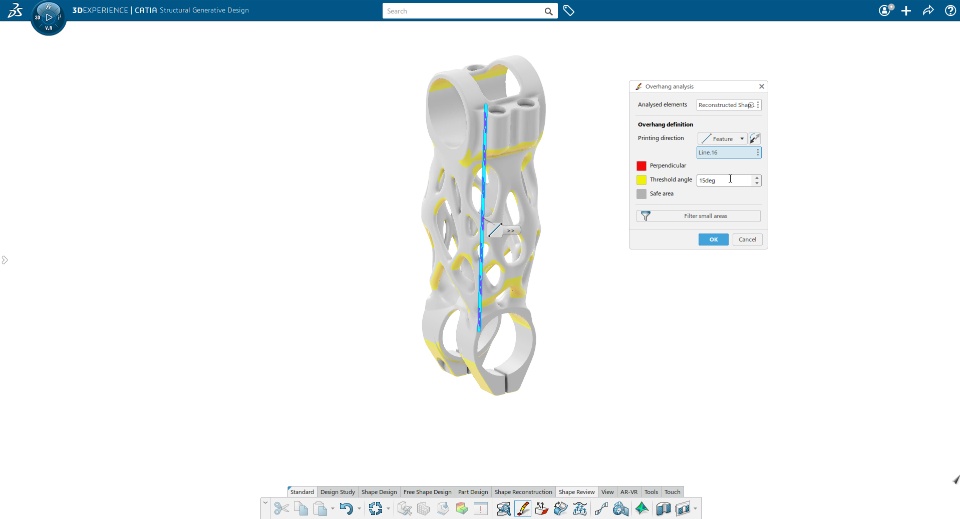

Overhang Analysis enables users to select a specific element (Line) as a Printing Direction.

I

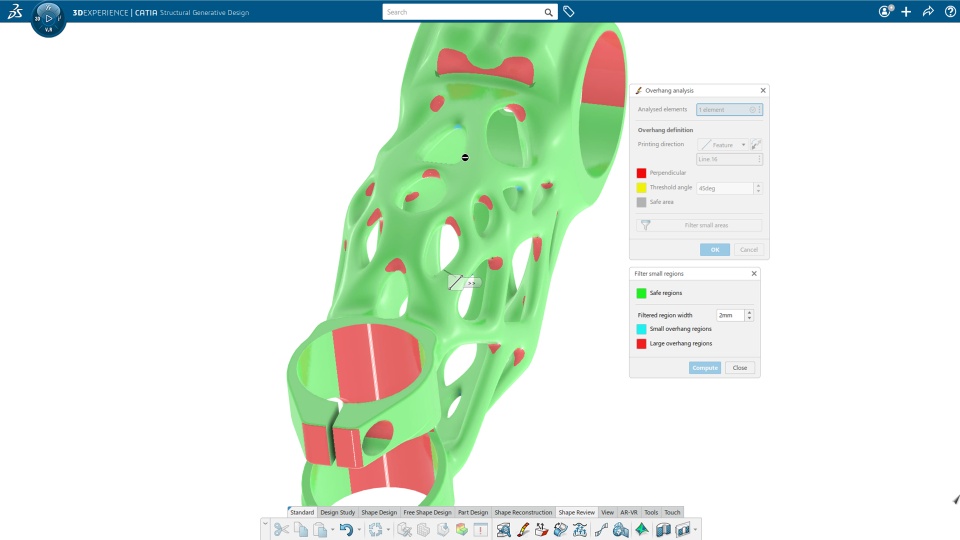

A Filter provides the capability to see which areas could be managed depending on printing machine specifications.

I

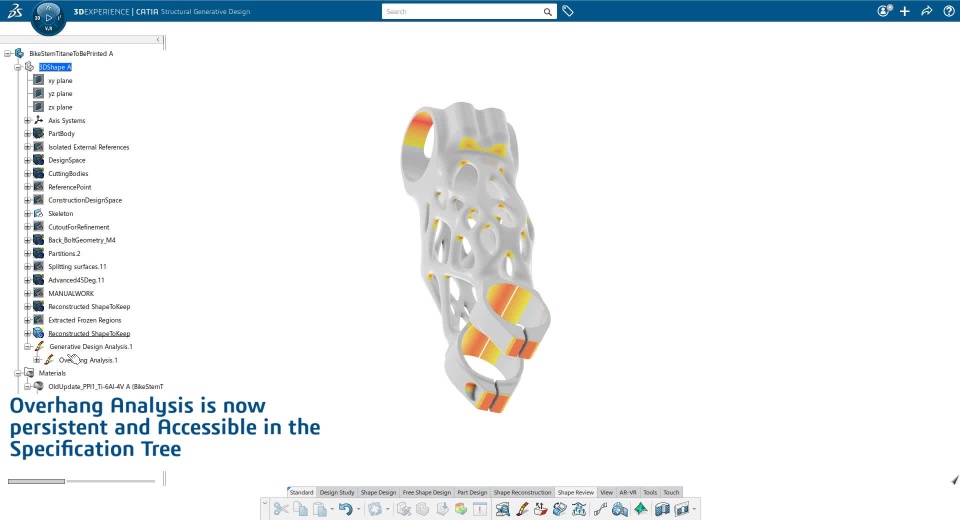

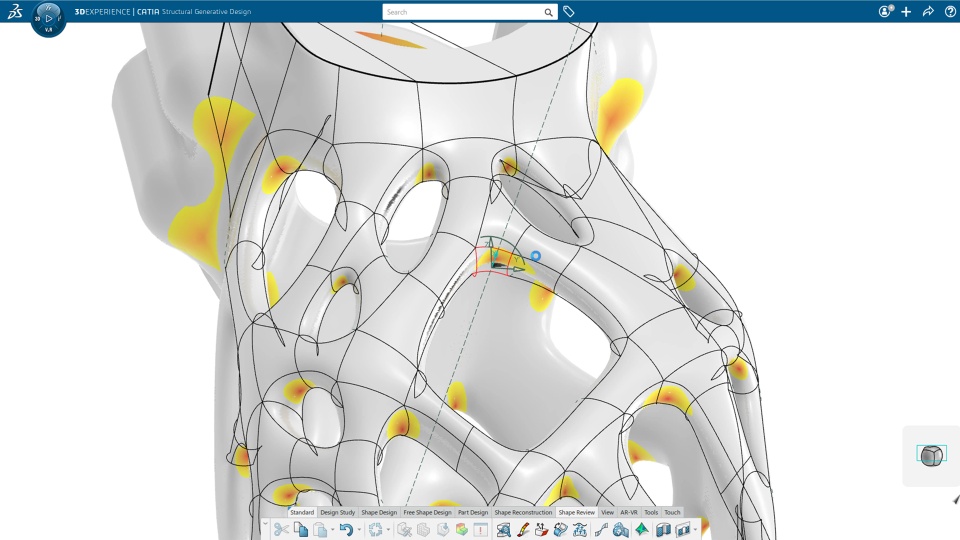

Overhang Analysis is now persistent and enables users to perform design modifications in a more easy manner.
