[CATIA] Stiffened Structure Engineer

Functional Value

Composites laminates exploration using the automation capabilities of 3DEXPERIENCE

I
Video that shows the new functionalities of the Stiffened Structure Engineer role

I

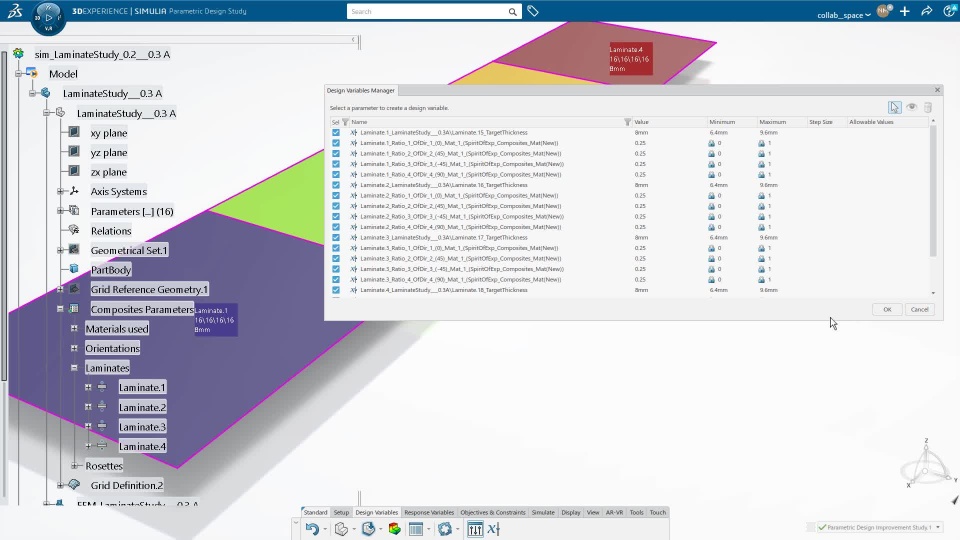

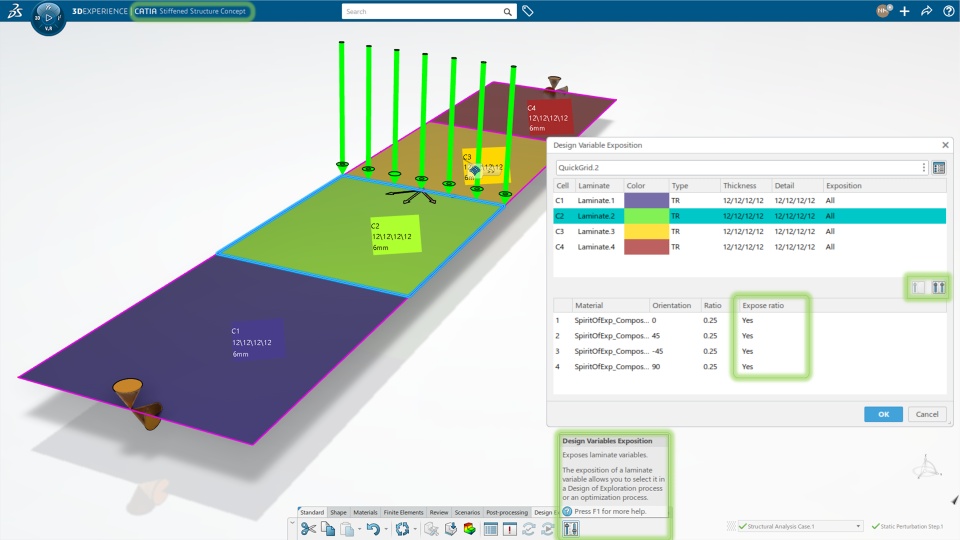

A new command named "Design Variables Exposition" ease the usage of composites parameters that are not exposed as knowledge parameters and enables a full or partial exposition of the laminates parameters.

I
Once the laminates parameters are exposed, they can be reused in a Parametric Design Improvement Study in the SIMULIA Parametric Design Study app (part of the Stiffened Structure Engineer role)

I

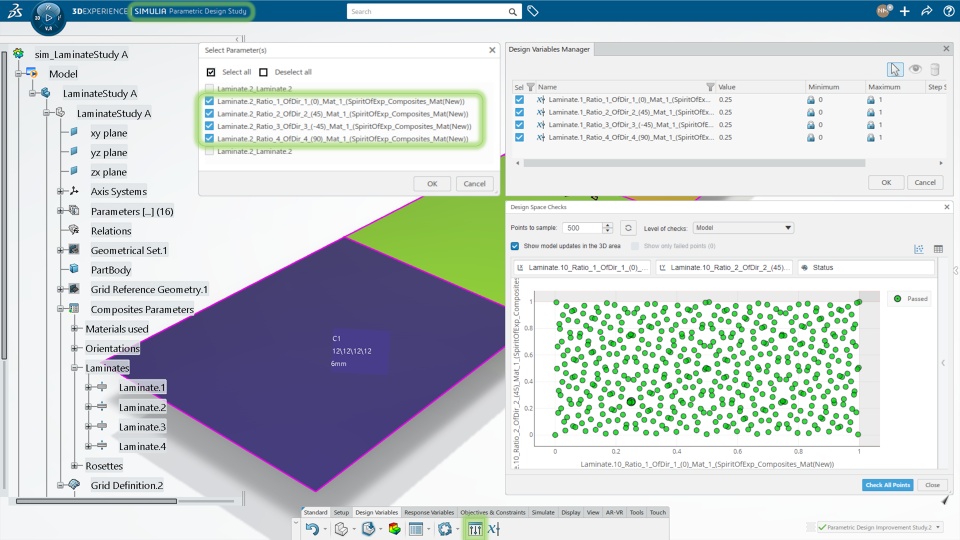

Laminates can be explored in a parametric design improvement study in the Parametric Design Study app (part of the Stiffened Structure Engineer role).

I

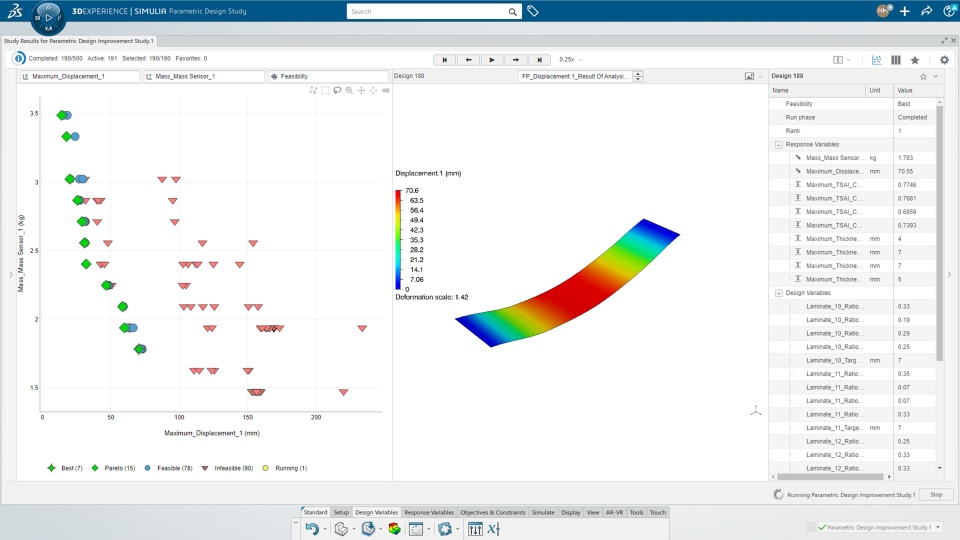

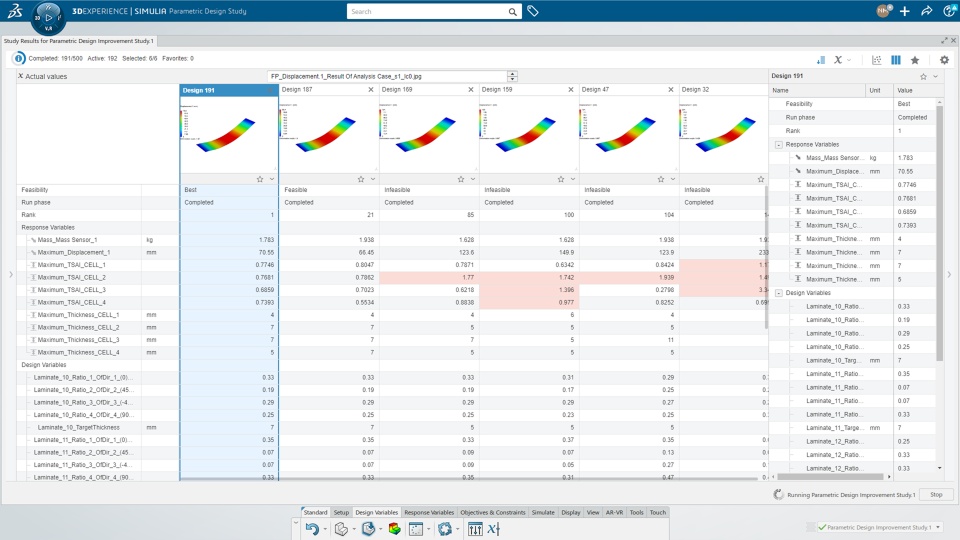

Comparison between design alternatives for a plate made of composites laminates in bending (minimize displacement, minimize mass and respect Tsai failure criteria < 0.95)
