[CATIA] Space Allocation Architect

Functional Value

-The user can decompose his system in 3D spaces. This division of working area into zones will allow concurrent design in the different disciplines.

-The role is expanded to all industries. This will allow to decompose any 3D system such as ships, aircrafts, buildings or plants, in reference zones that can be used during engineering and manufacturing downstream activities

I
Decompose a system (ship, aircraft, building) in 3D spaces, driving downstream designers in their choice during their business activities

I

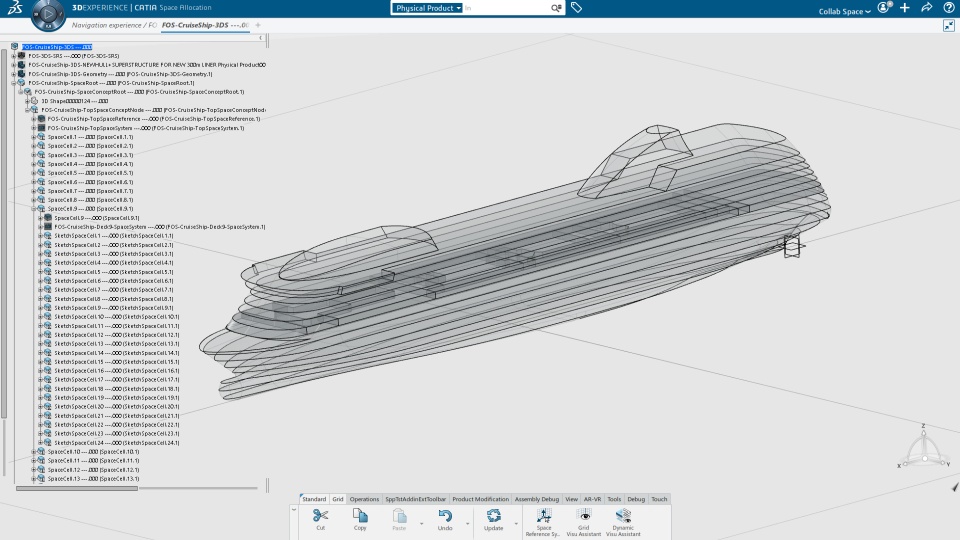

breakdown of a cruise ship in deck zones

I

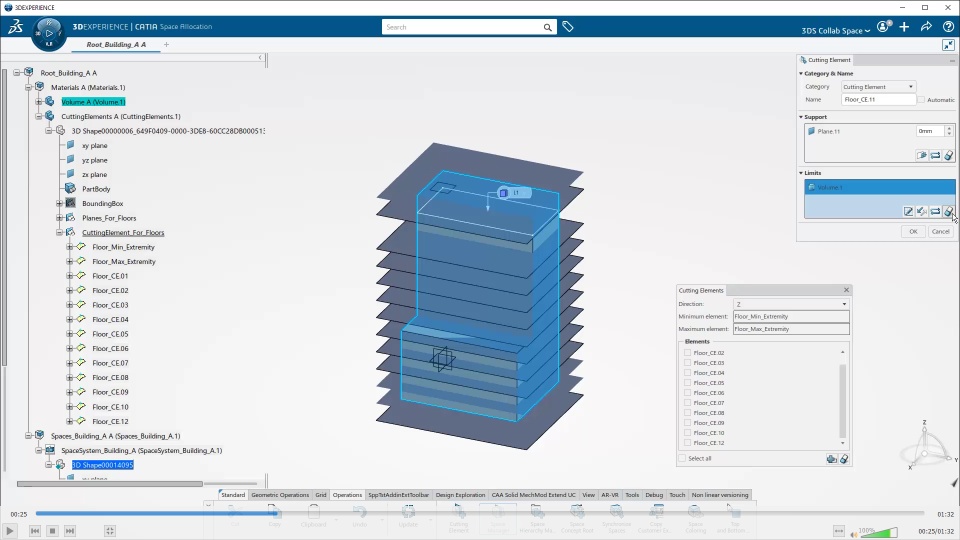

Breakdown of building in floor zones

I

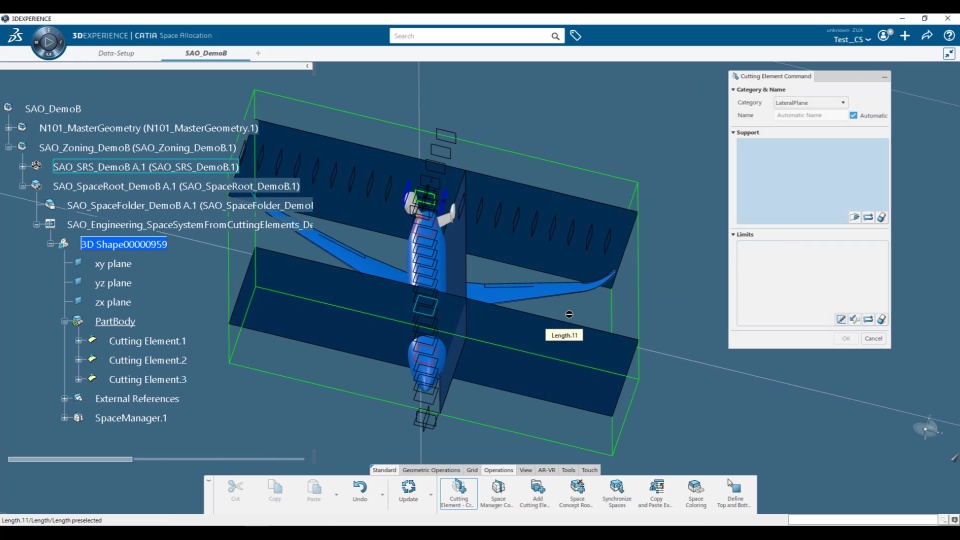

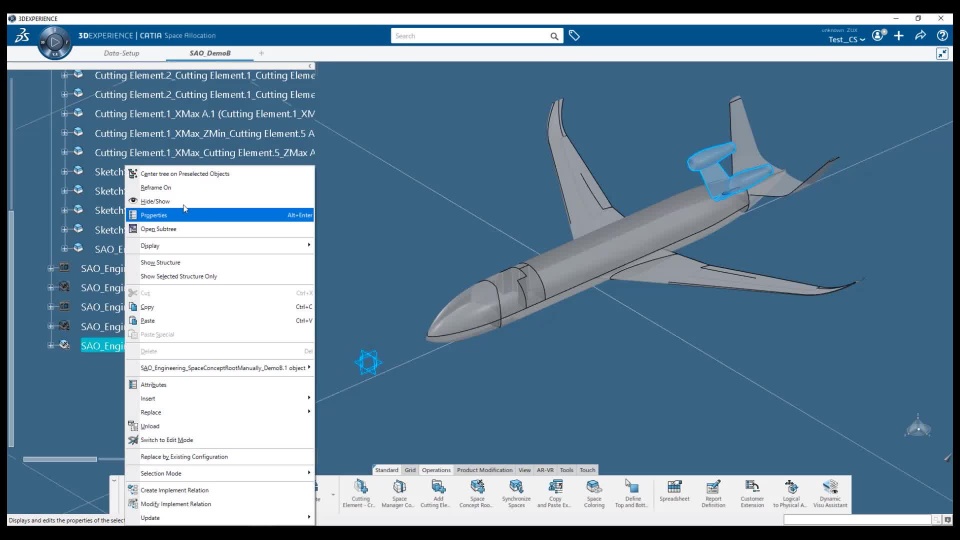

Breakdown of an aircraft in in engineering zones thanks to cutting plans
