[CATIA] Layered Product Designer

AB

Functional Value

1. Easily display every step of the pouch battery cell design by integrating binding process in the smart view

2. Generate more realistic rolling shape of cylindrical battery cells and facilitate their meshing process

I
Video showing the improvements for battery cells design to facilitate the meshing process and to easily represent every steps of the manufacturing process

I

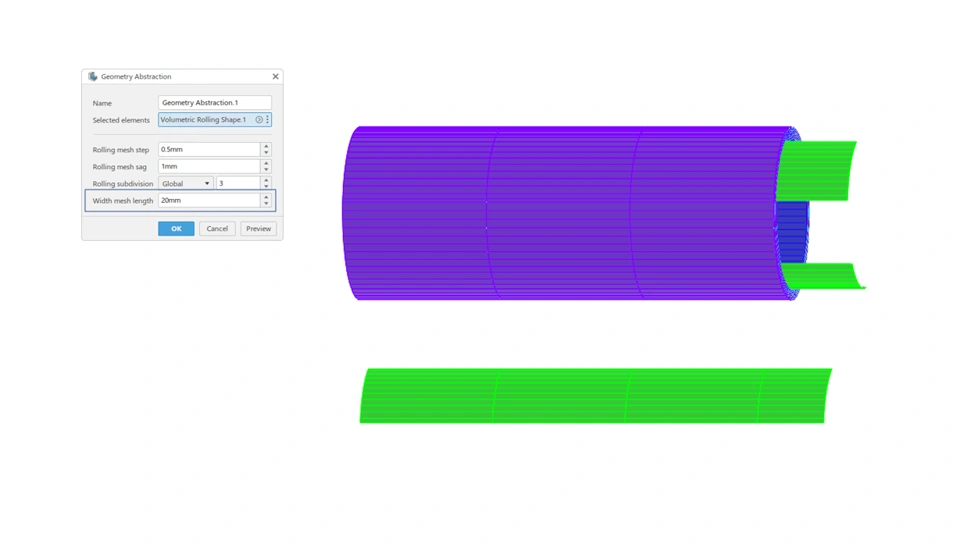

In the geometry abstraction, the width length subdivision is now a length which enables the proper splitting of layers of different widths

I

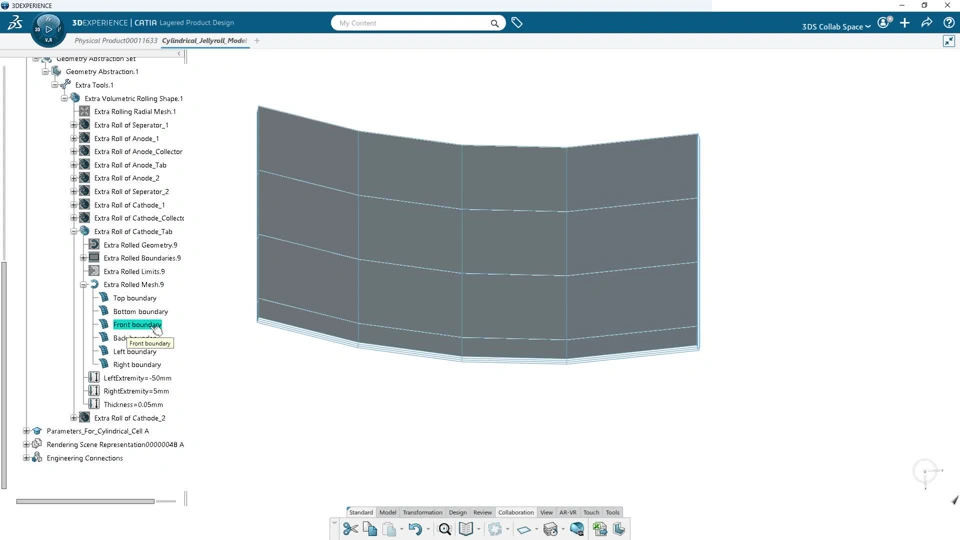

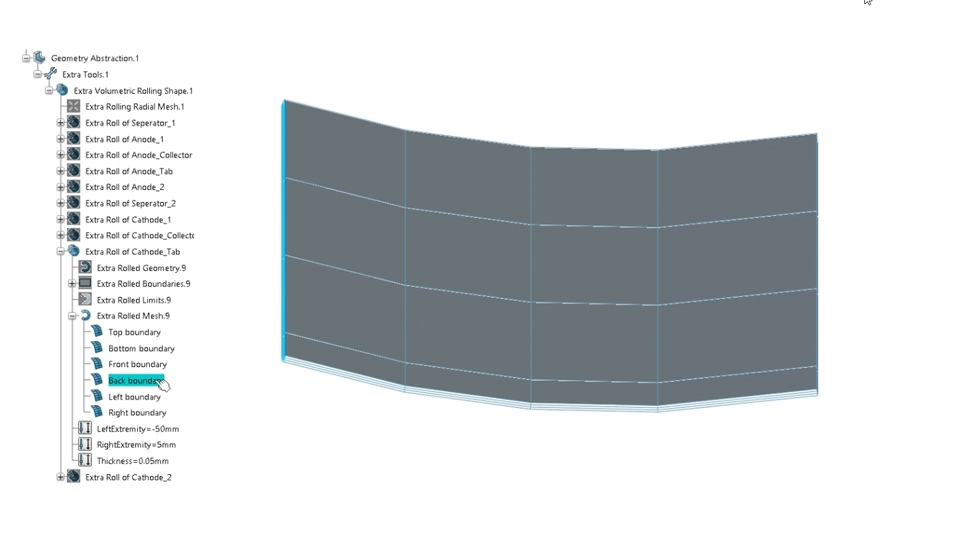

New surfaces have been exposed to facilitate the groups creation in the finite element model

I

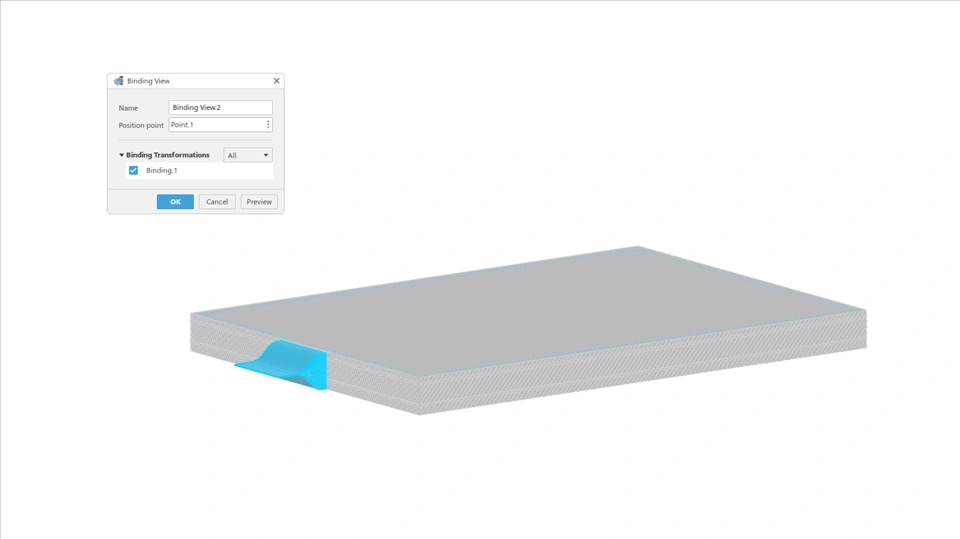

New binding view to easily generate a view of this manufacturing process
