[CATIA] Lattice Designer

Functional Value

1.Better control of the desired infill ratio and patterning with more predefined or user-defined unit cell types and with control of the unit cell orientation.

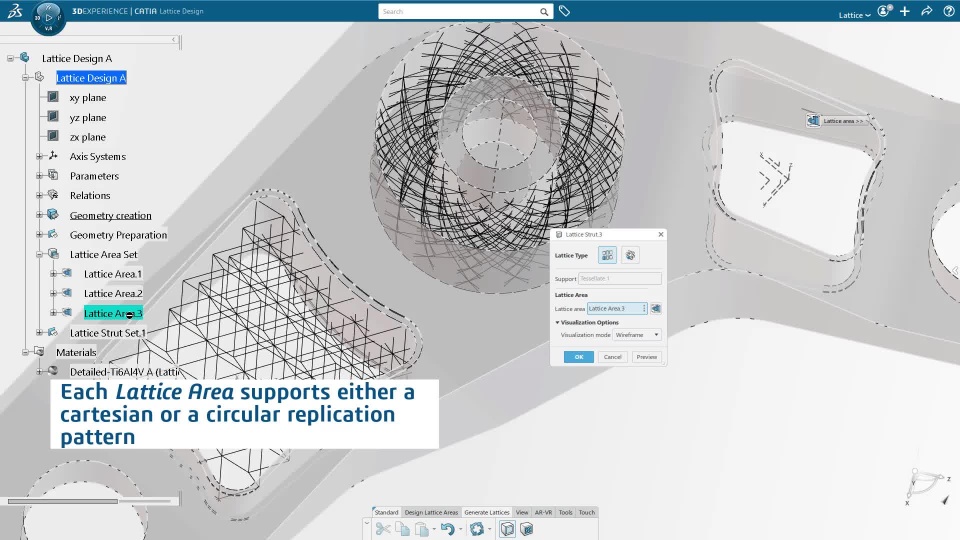

2.A wider range of achievable lattice design configurations with the ability to apply lattice specifications on local regions of the model, compatible with design exploration apps.

3.More accurate assessment of the product mechanical performances with advanced controls on the 1D finite element lattice modeling definition (element type and size).(*Simulation capabilities not included in the Lattice Designer role)

4.Better management of the produced data (conceptual and detailed geometries) for downstream usage.

I
What's new in the Lattice Designer role in 2022x release

I

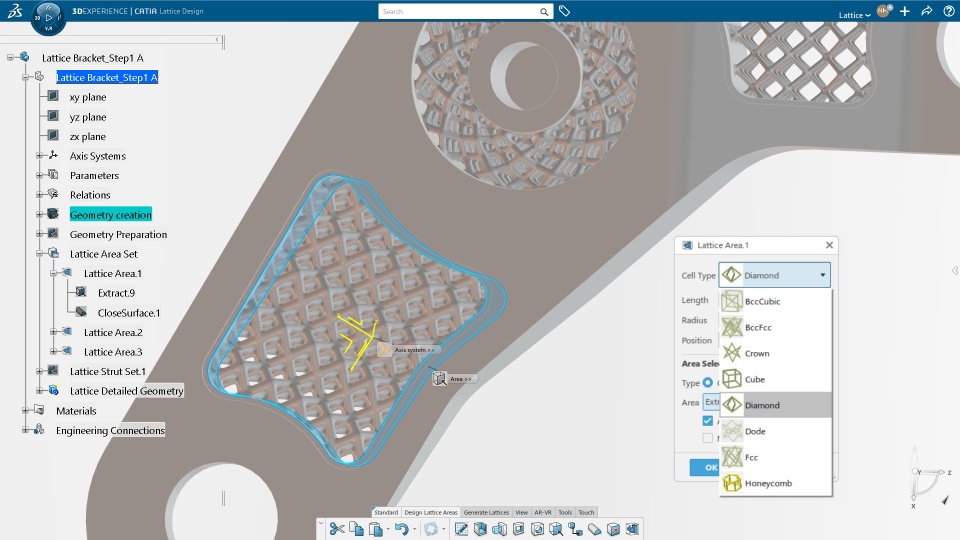

New predefined unit cell type

I

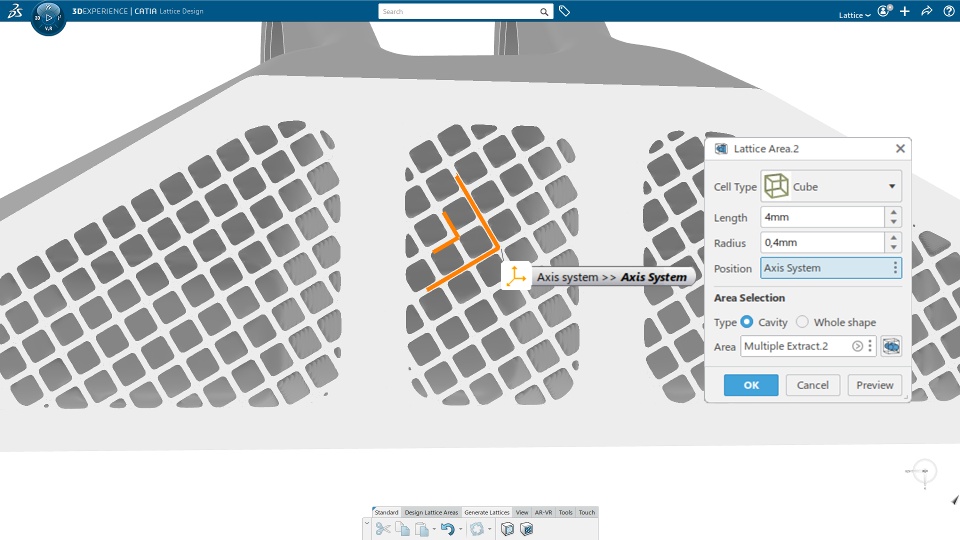

The orientation of the unit cell can be precisely defined (origin and orientation) with a user-defined axis system

I

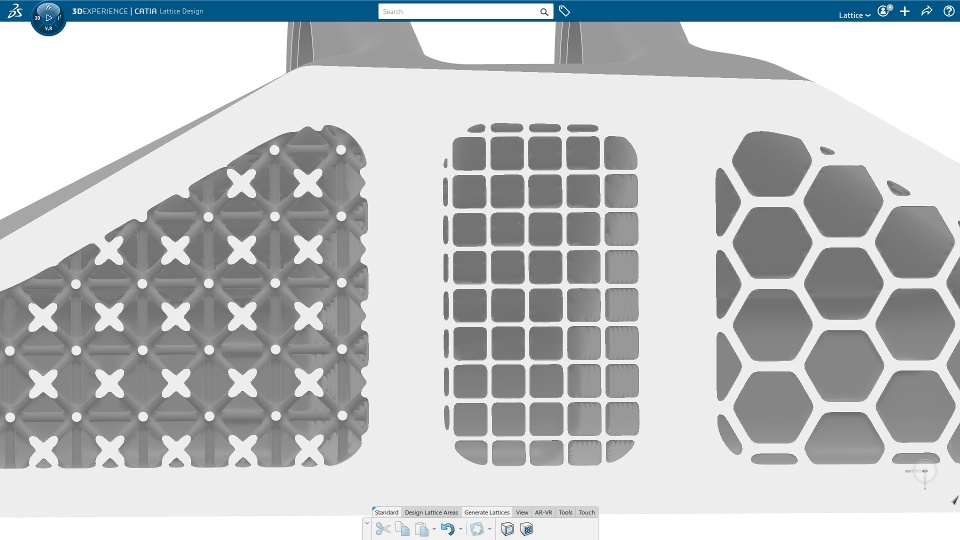

Lattice specifications can be applied to local regions of the model. Three Lattice Area on three regions of the model (from left to right : Body centered cubic, cube and honeycomb)

I

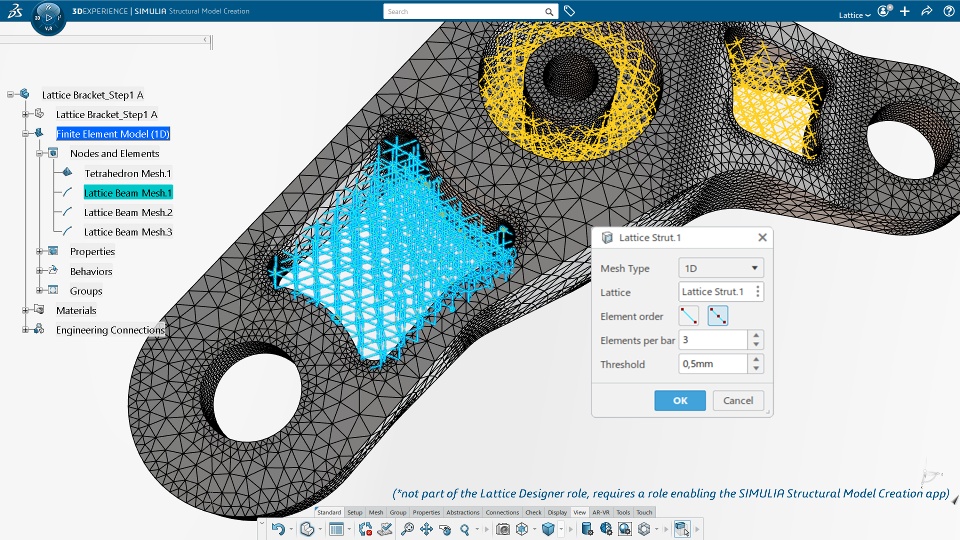

New options in Lattice FEM command: Element order (linear or quadratic), Number of elements per bar and Threshold

I

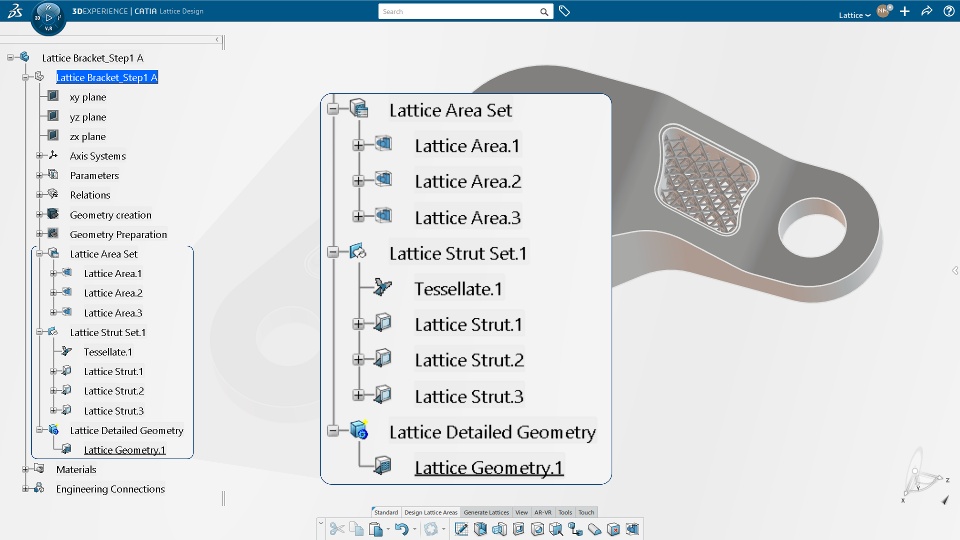

Better management of the produced data (conceptual and detailed geometries) for downstream usage.
