[CATIA] Function Driven Generative Designer

Functional Value

Improvement of Manufacturing constraint management per design space volume and integration of a new constraint that controls extrusion shape spacing and width (Rib reinforcement).

I
Video illustrating the new Rib manufacturing constraint with its options and the optimal result generated.

I

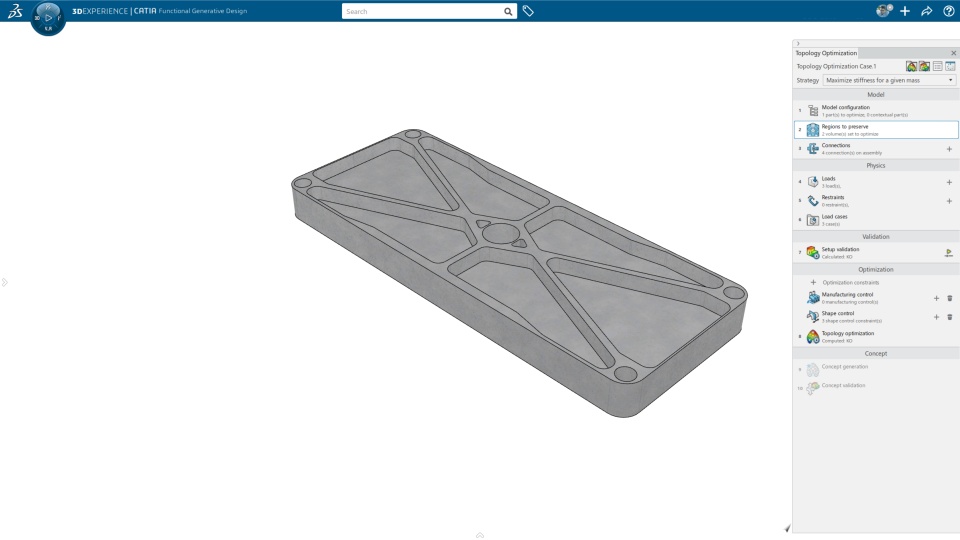

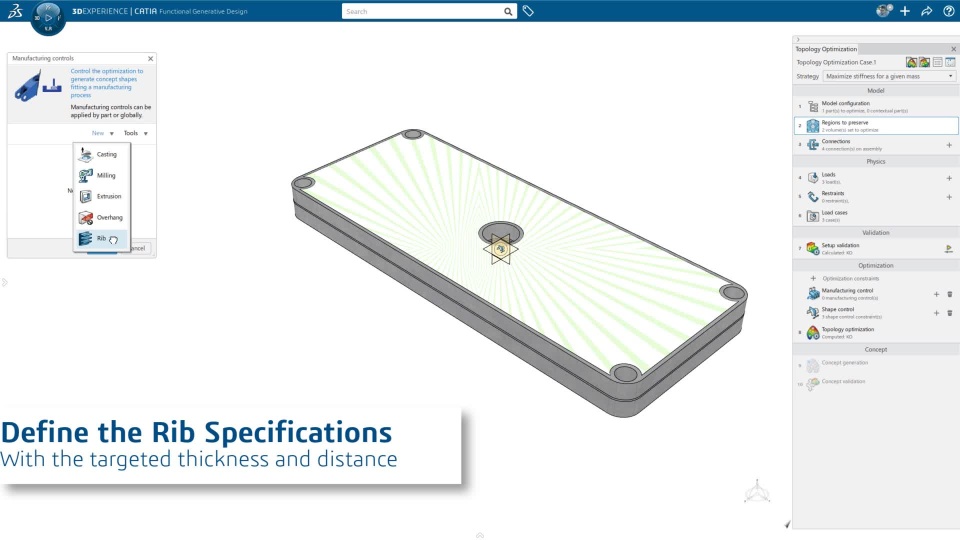

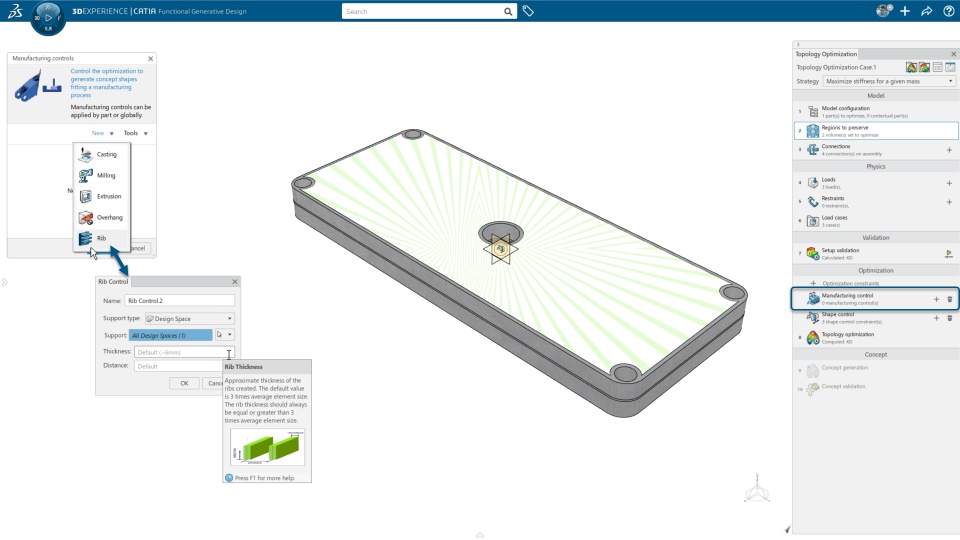

Image illustrating the new Rib manufacturing constraint options.

I

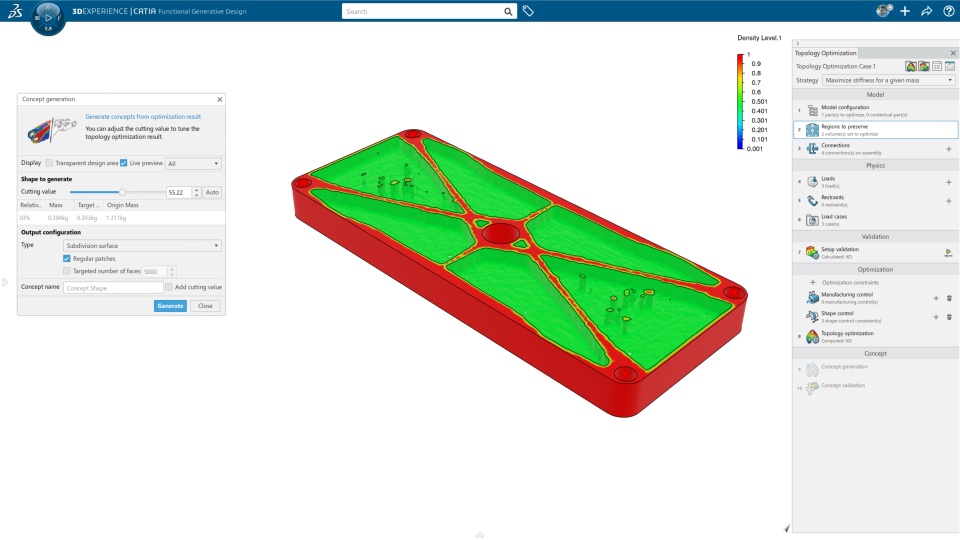

Image showing the optimal result with the Rib manufacturing constraint.

I
Example of manufacturing ready geometry reconstructed from the optimal result.
