[CATIA] Flow Driven Generative Designer

Functional Value

Extended scope for Surface Simplification and Shape Generation to speed up the convergence towards a high quality streamlined shape and provide smoother geometry for thickness reconstruction cases.

I
End to End Video that demonstrates all the new highlights and how to use them.

I

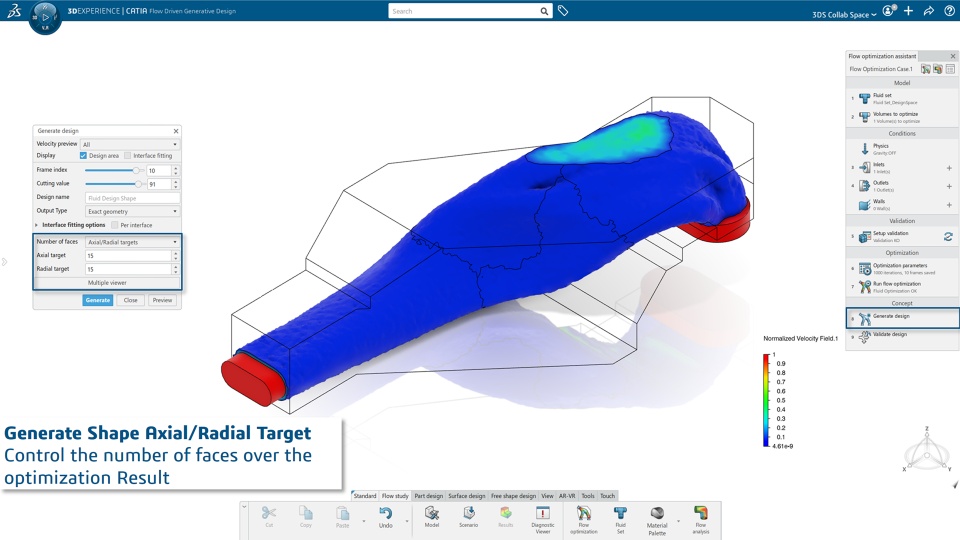

Image of the new Generate Shape Output-Axial/Radial Targets that controls Subdivision number of patch.

I

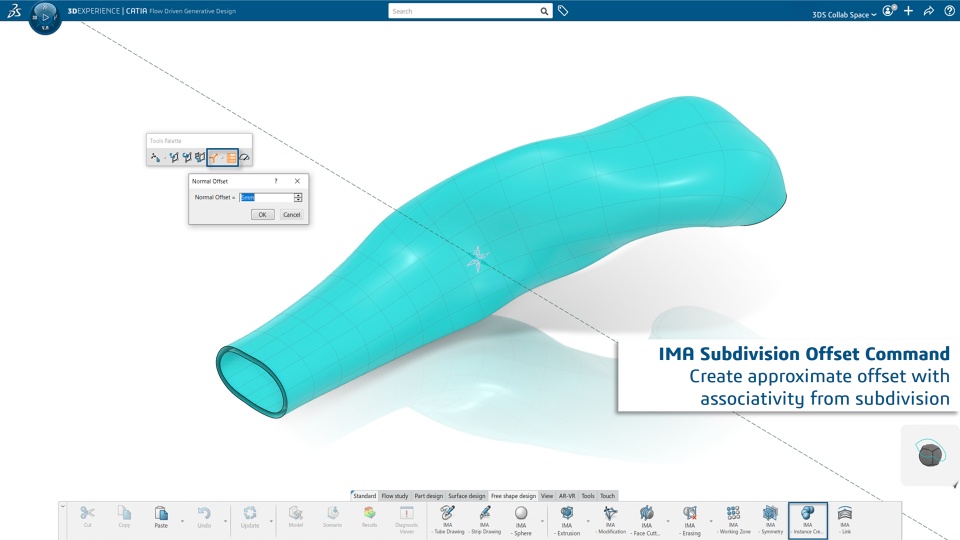

Image that shows the IMA Subdivision offset command that performs an approximate offset of a subdivision.

I

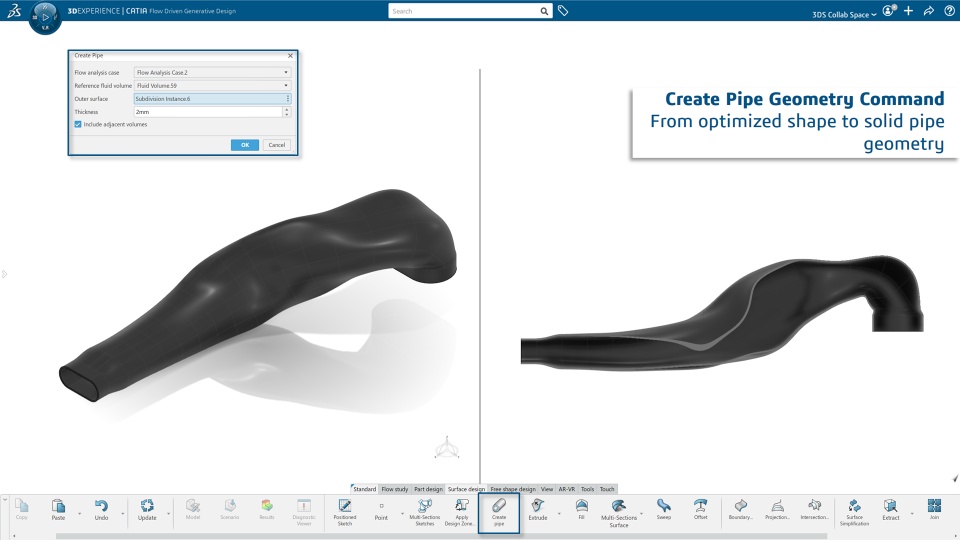

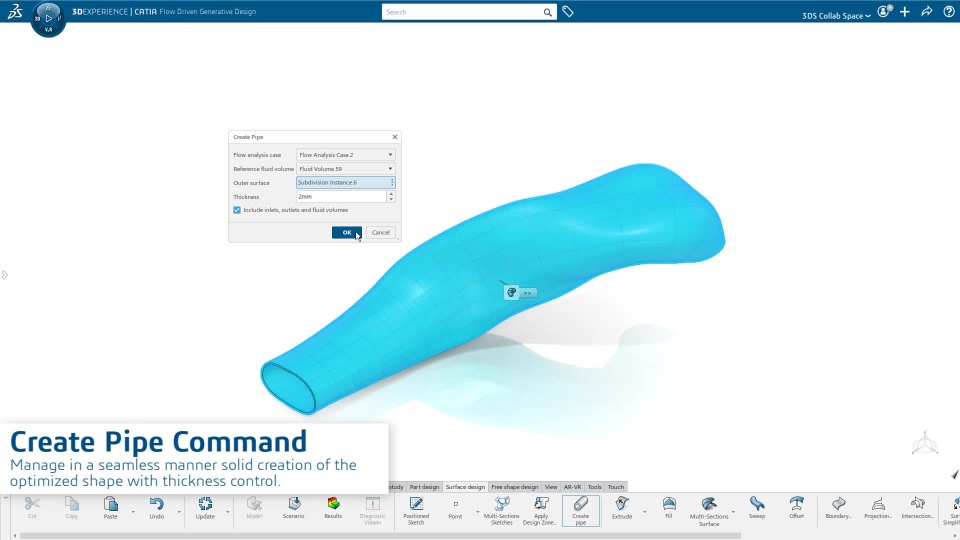

Illustration of the pipe reconstruction geometry command and result.
