[CATIA] Electrical 3D Systems Designer

AB

Functional Value

1. Extend the electrical harness bill of materials with the cable data model from now on fully integrated in every single aspects of the electrical end to end process

2. Manage and optimize backshell clocking (relative angular orientation of a connector and a connected backshell) so as to better secure the installed harness

3.Replace the legacy support type by the new primary support type providing extended added-values

User Experience Value

Optimize splice positions through advanced user experience

I

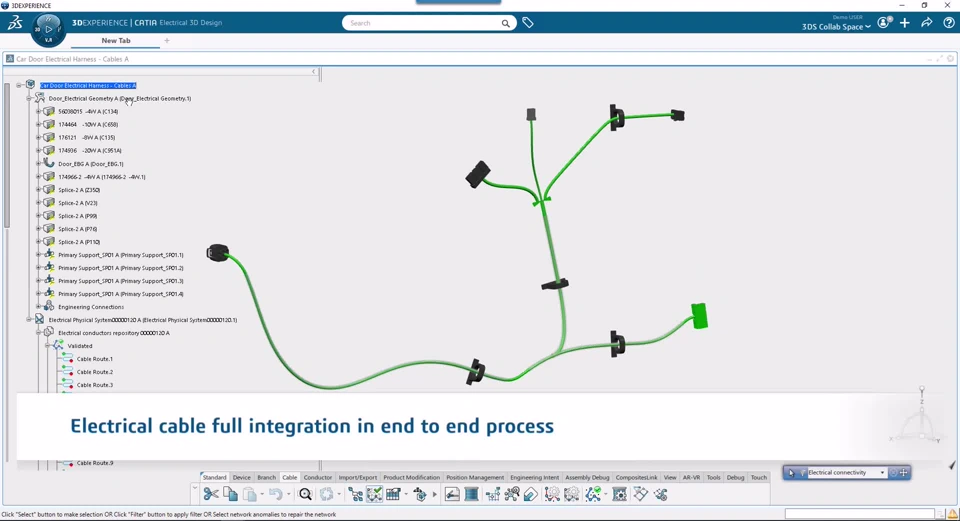

Cable full integration - What's new video

I

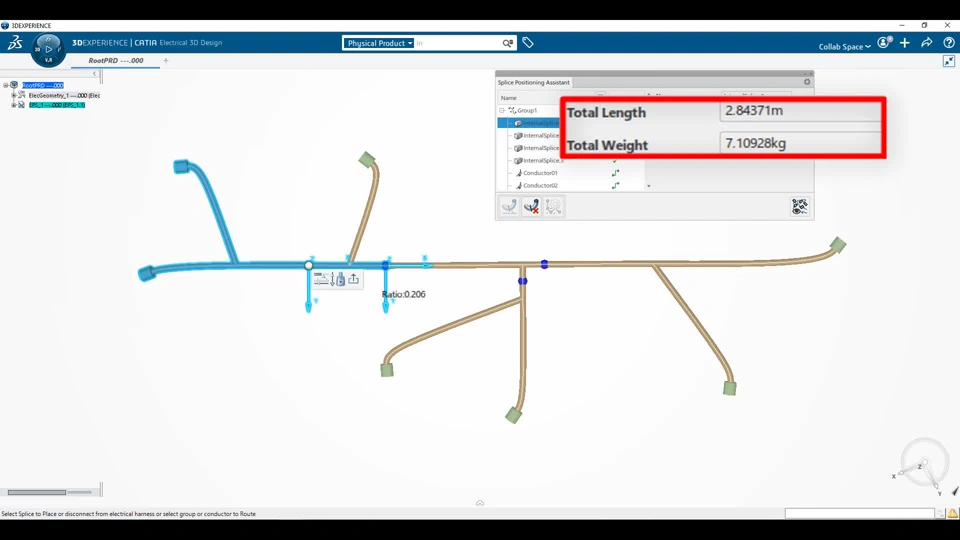

Splice positioning optimization

I

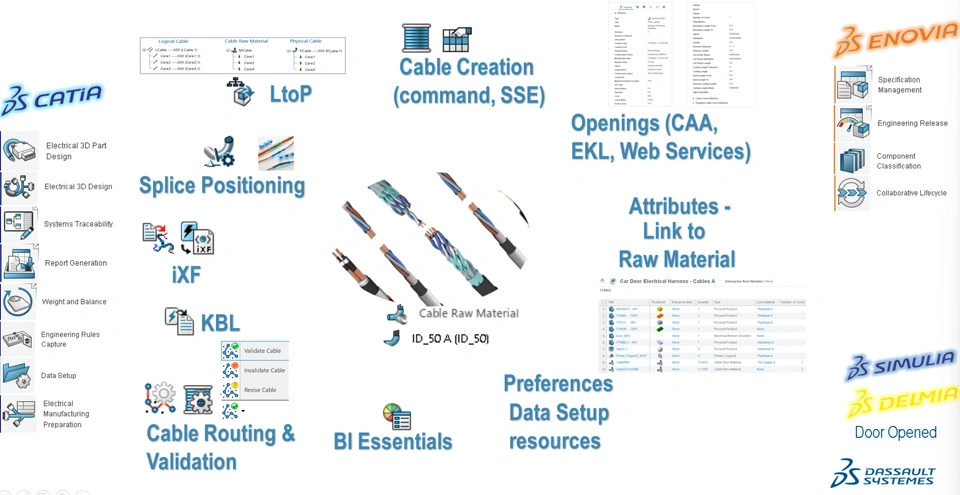

Cable integration overview

I

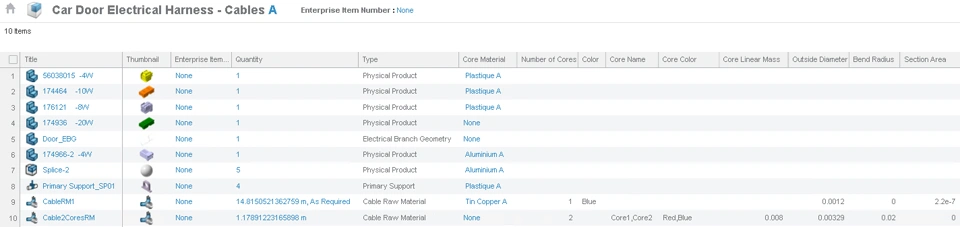

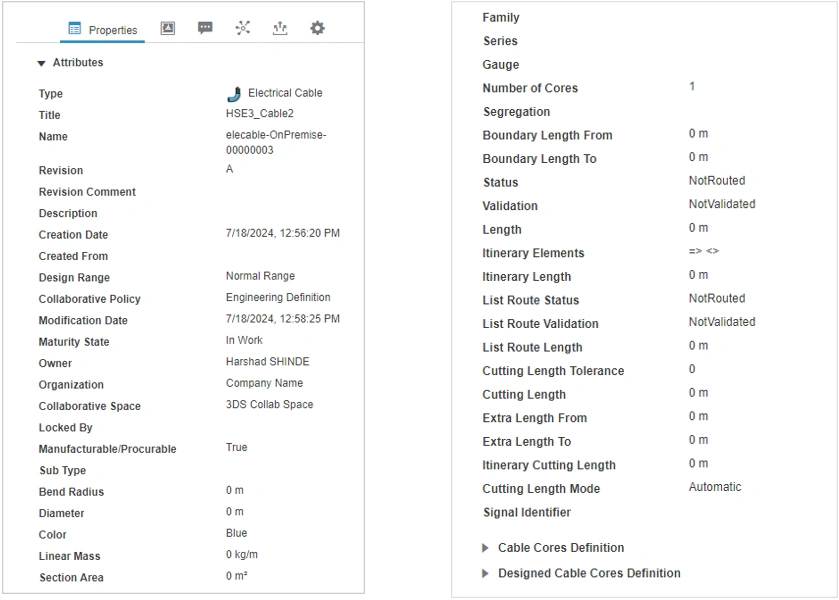

Cable attributes

I

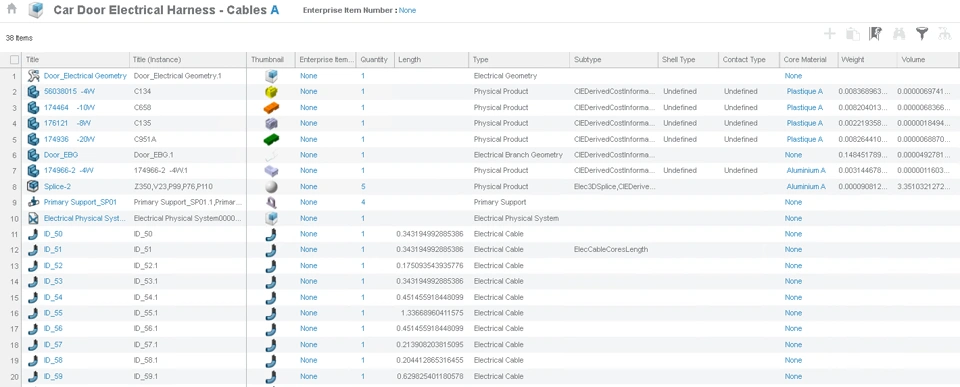

Cable length - individual

I
Cable length mono and multicore - Cumulated

I

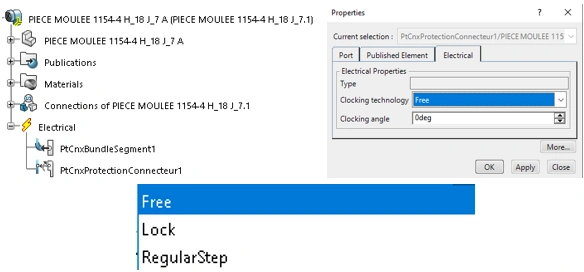

Backshell clocking attributes

I

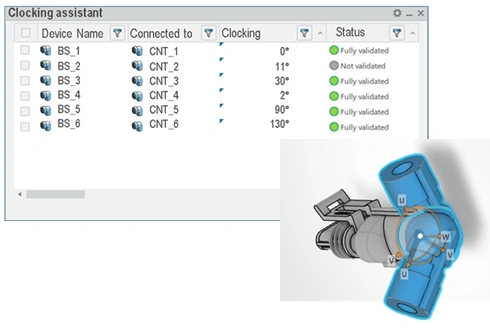

Backshell clocking management

I

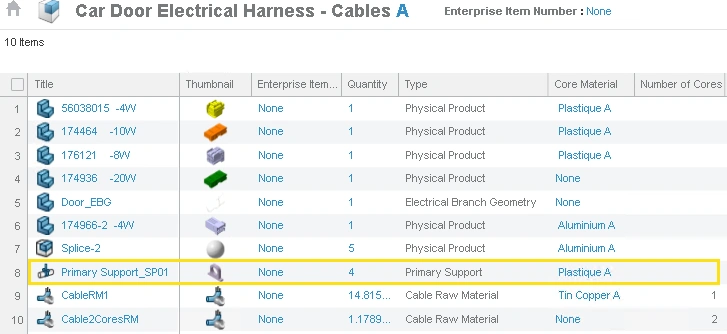

Primary support in bill of material
