Functional Value

Optimization of the Feasibility in Manufacturing by checking the compatibility of the generated layout with the harness shape & decreasing potential errors during assembly by limiting the torsion earlier in the process

- Form-board Process Optimization:

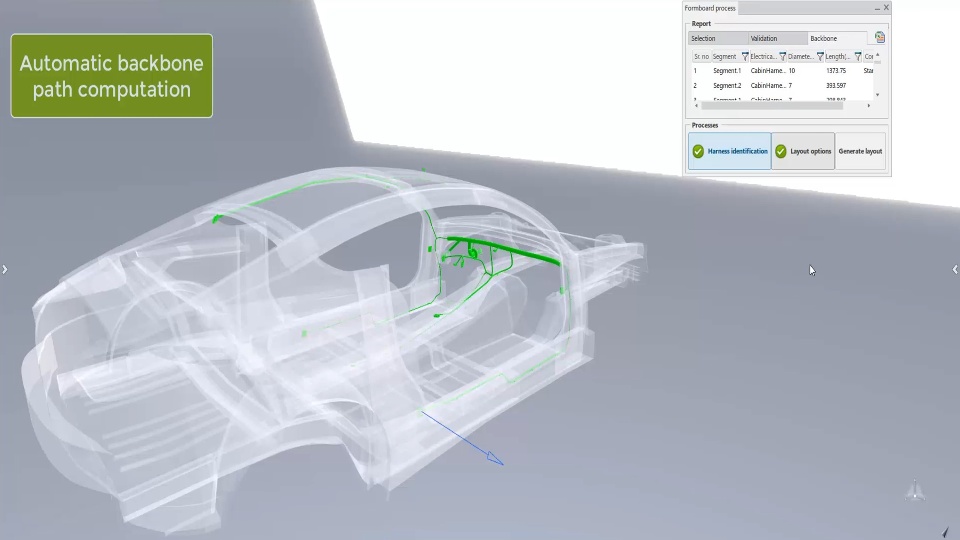

a. Automatic backbone path computation and display in pink in 3D

b. A more robust validation of the data to process and new checks performed in the behind scene

c. More information about the processed data : dashboarding with advanced reports for each step and cross-highlight capability

d. High level of User Interface targeting to minimize user interactions but manual modification is still available

e. A moving frame all along the backbone for caracteristic points detection

f. Pre-visualization of the flattening orientation in the 3D with orientation vectors

g. Reframe On capability on both harness and flatten data

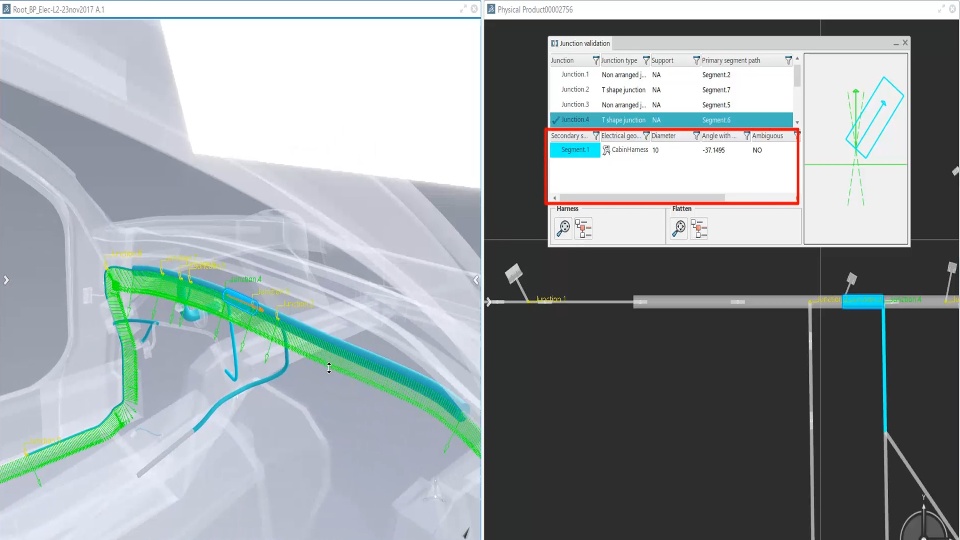

h. Ambiguity zone graphic view for torsion limitation

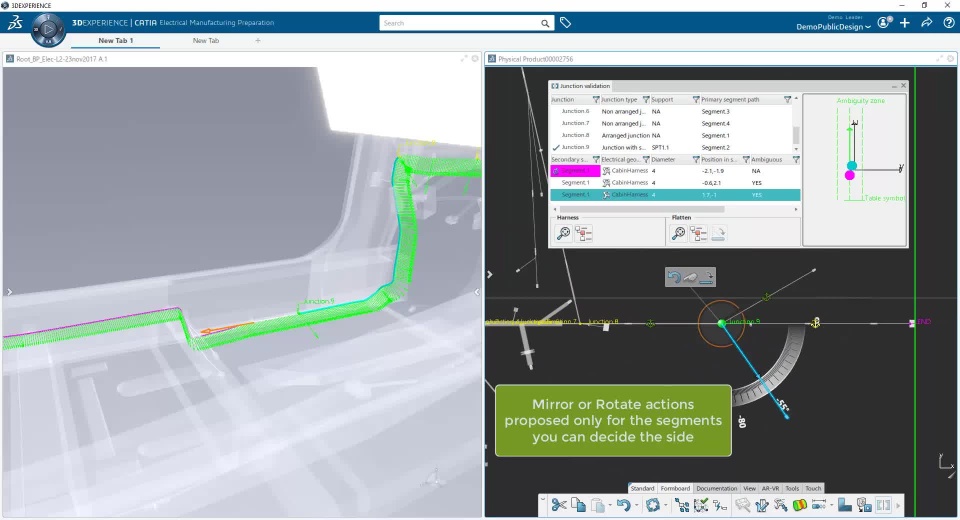

i. Mirror or Rotate actions proposed only for the segments you can decide the side

First Time Right Production. Saving Preparation Time & Leading to a faster generation of manufacturing plans
- Synchronization Process Optimization

a. Automatic path computation for backbone definition and display in pink in the 3D

b. More information about the processed data : advanced reports for each synchronization step with a high level of UI and cross-highlight cabapility between 3D and flattened data

c. Backbone shape retention thanks to the anchor roll selection

d. Previsualization of the future backbone for an optimized anchor roll selection

e. Multiple design scenarios for systematic comparison study and optimal design

f. Simulated synchronization enabling the user to validate or not the futur results as a decision maker

g. Semi-Automatic process where user is an actor and is asked to take decisions

h. Capability to identify the impacted tables
