[CATIA] Electrical 3D & Manufacturing Engineer

AB

Functional Value

1. Electrical harness completeness and full Digital Continuity from electrical 3D to harness documentation for cable component

2. Propagate any manufacturing intent (mounting instructions...) through annotations coming from the electrical designer to the harness documentation drawing.

3. Optimize the electrical harness documentation generation through an improved assisted generative process:

- Manage the electrical harness backbone for left-right orientation

- Visualize the drawing frame and title block for better and faster relative positioning within the frame

The goal is to minimize the back and forth modifications between the flatten layout and the drawing.

User Experience Value

Enhance user experience for managing electrical harness and flattened data relationship thanks to the introduction of a new relation between the two data. Note this relation is compatible with 3dxml export/import process.

I

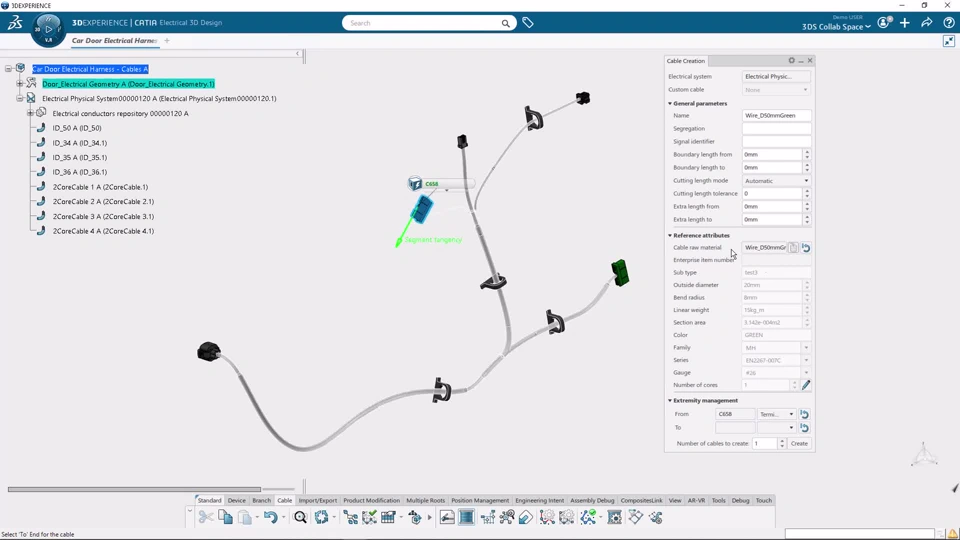

Cable full integration - What's new video

I

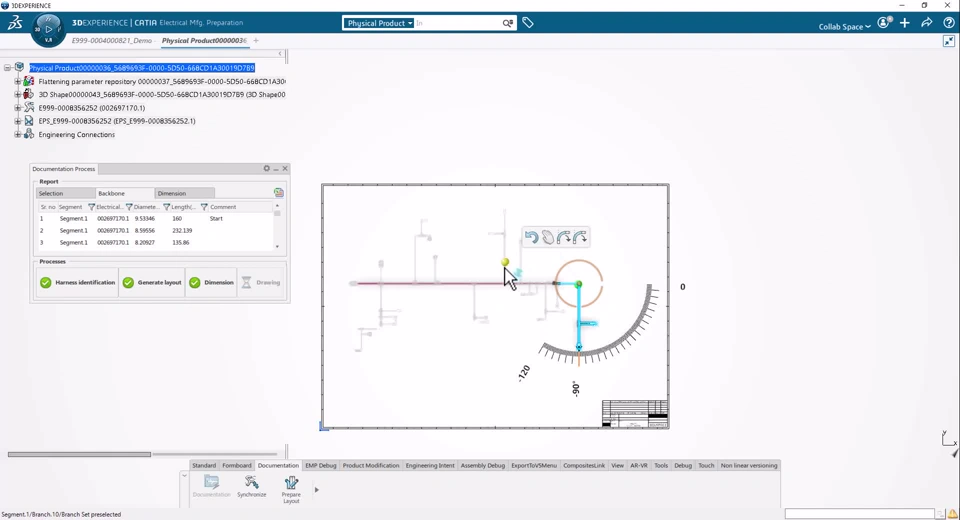

Visualize harness backbone and drawing frame & title block while generating the harness documentation

I
Advanced navigation process between electrical 3D harness and flatten data

I

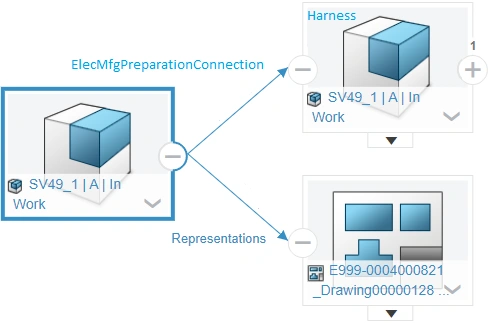

Enhanced user experience for managing electrical harness and flattened data relationship thanks to the introduction of a a new relation
