[CATIA] Composites Designer for Transportation & Mobility

AB

Functional Value


1. Generate a top surfaces for a given layer of the composites plies stack-up in order to streamline the creation of geometries required for interfaces with other parts
2. Create the Top Surface from Virtual Stacking for the cured or uncured thickness of plies
3. Enrich the grid design process with the ability to display information on the grid with a colorization of the cells
4. Allow multiple points or an explicit curve as geometrical input, using the dart creation command, enabling an easier definition of complex manufacturing notches
5. Streamline the creation of cut-pieces thanks to the ability to create splicing curves directly from the 3D Multi splice command
6. Automate the smoothing of the Top Surface from Virtual Stacking and Top Surface from Iso Thickness Area thanks to a dedicated auto fillet command
7. Ensure a proper fiber alignement of cut-pieces of plies with the automatic creation of producibility with double guide curve

I
What's New in R2026x video

I
Enrich the grid design process with the ability to display information on the grid with the colorization of the cells

I

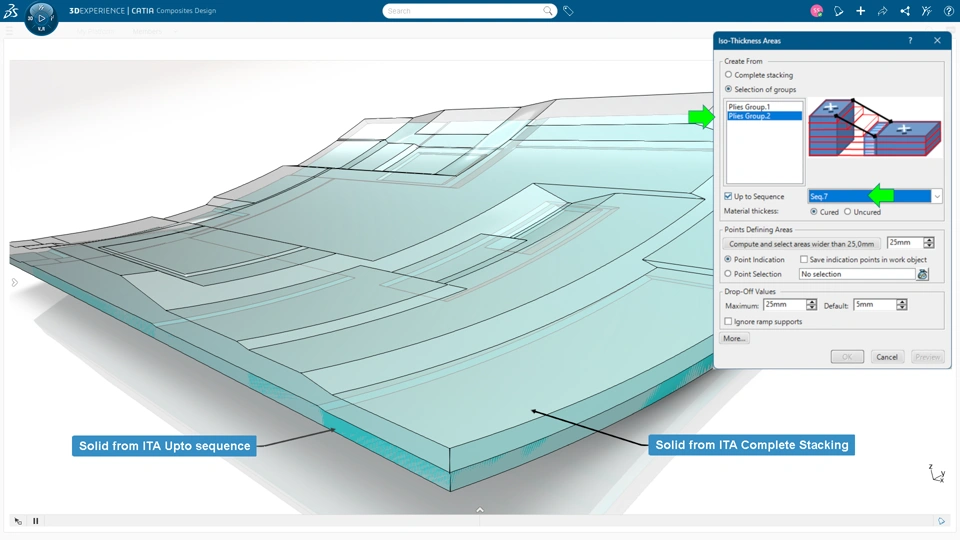

Calculate the generation of top surfaces for a given layer of the composite plies stack-up in order to streamline the creation of geometrical outputs required for relational design

I

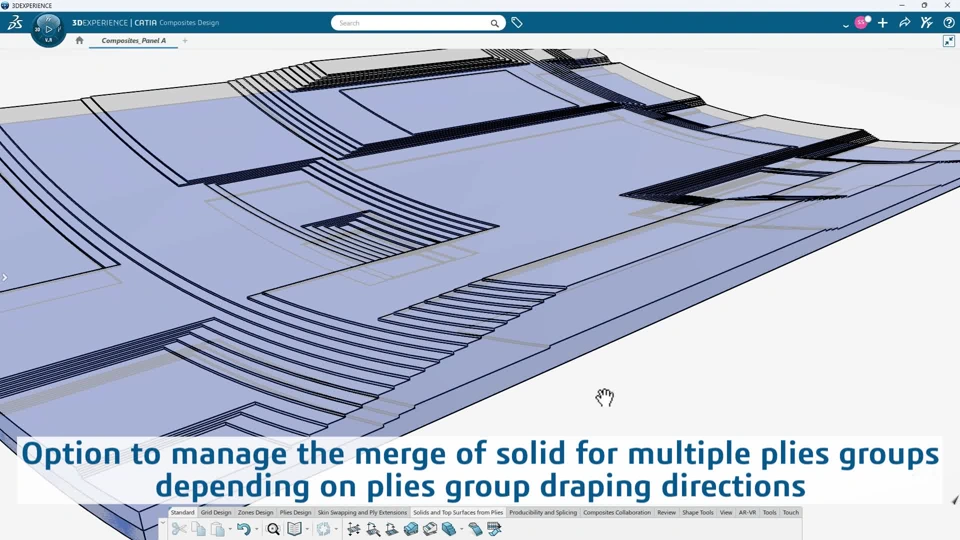

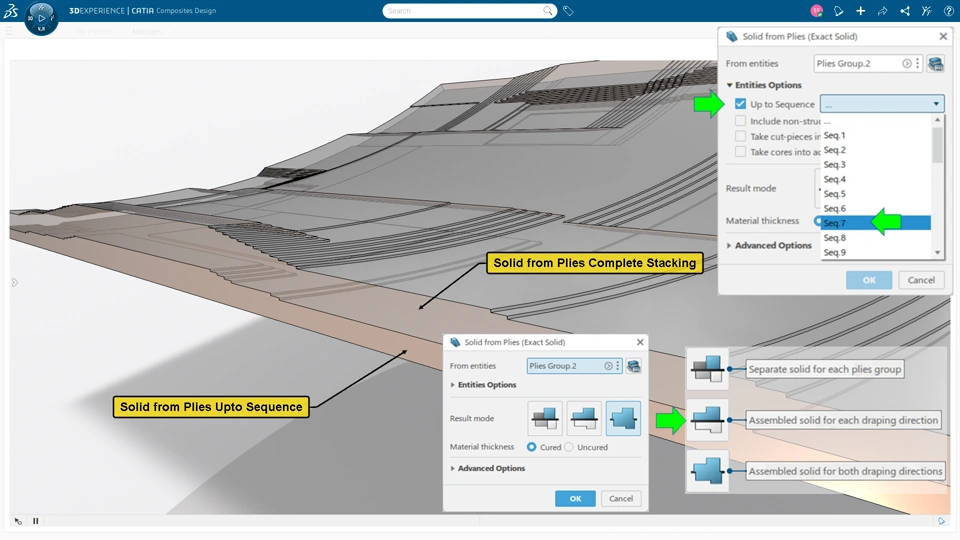

Generate solid from plies up to required sequence and manage options to merge depending on the plies group and the draping direction

I

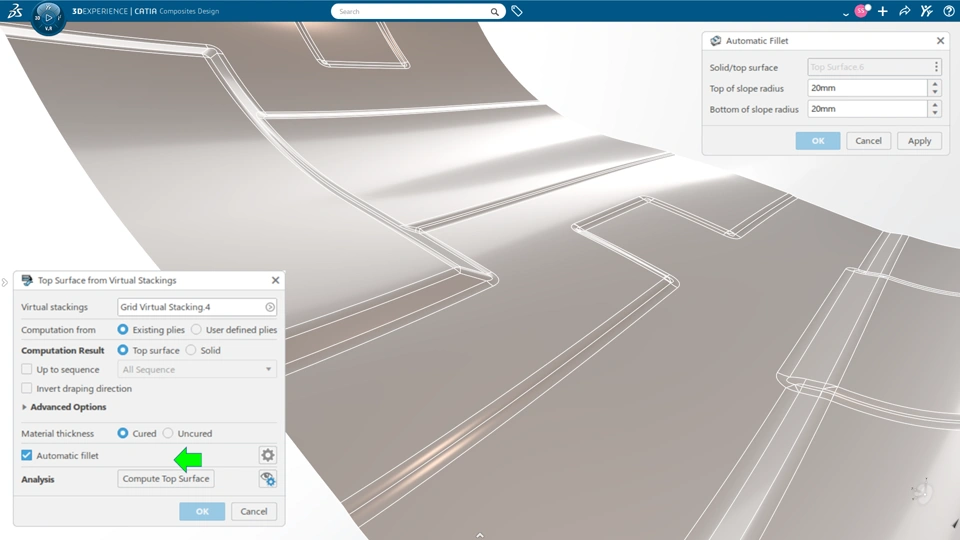

Automate the smoothing of the Top Surface from Virtual Stacking and Top Surface from Iso Thickness Area thanks to a dedicated auto fillet command

I

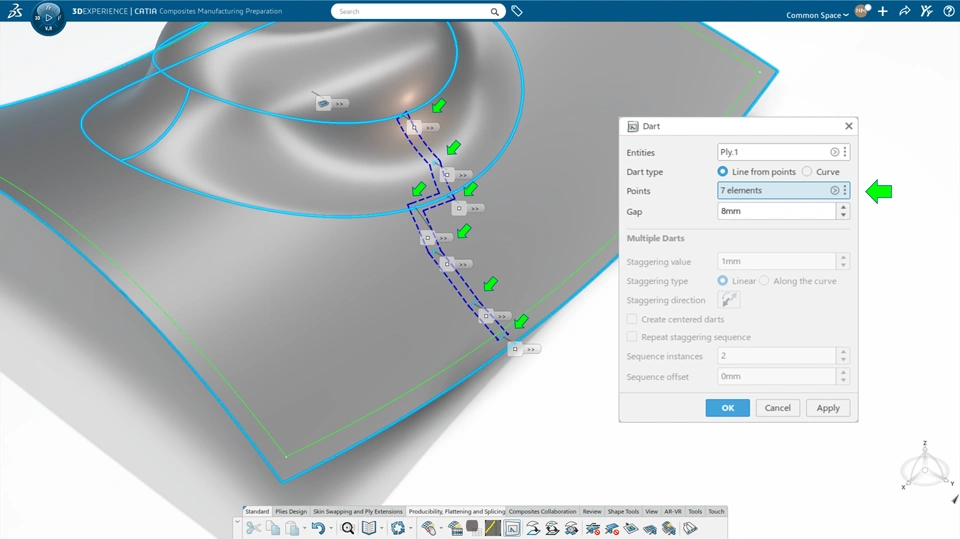

Quick and easy creation of complex darts with on-the-fly geometry creation or polyline creation with indication points

I

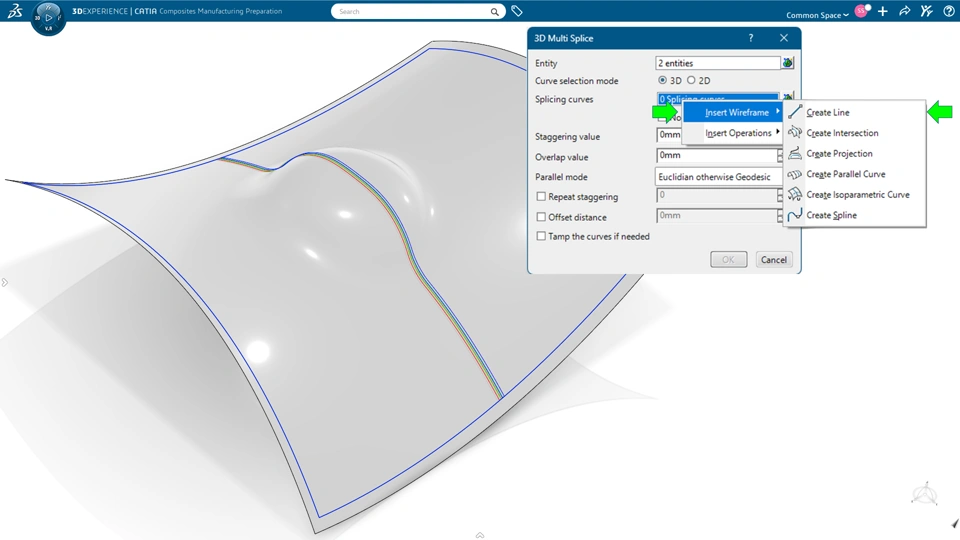

On-the-fly creation of input wireframe geometry in the 3D Multi Splice command

I

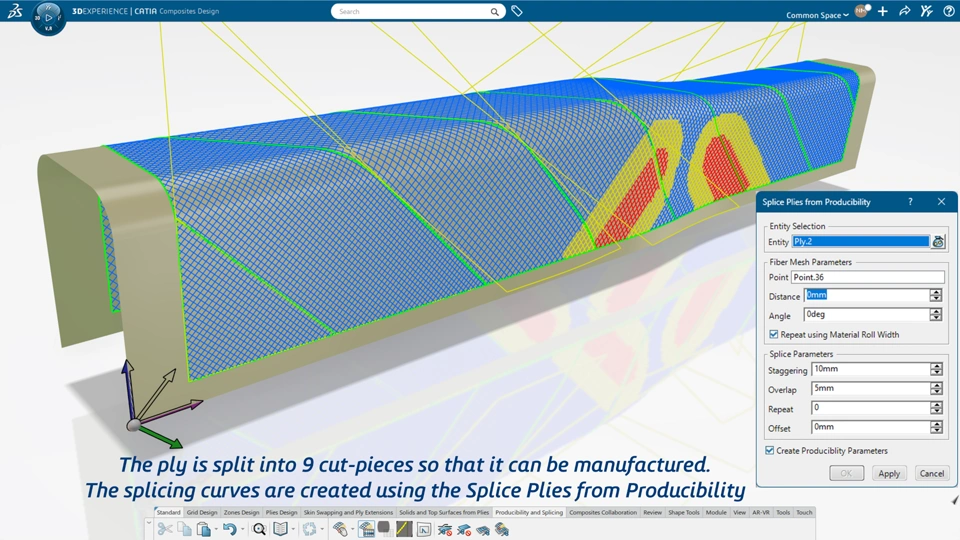

Automatic alignment of the splicing curves along the fiber direction

I
Automatic producibility analysis creation for each cut-piece with a double guide curve constraint
