[CATIA] Building Designer

Functional Value

Optimize bar distribution with the new Rebars Partition command, allowing users to dispatch bars across layers based on custom criteria.

Enhance rebar detailing by enabling the creation of rebar sketches directly within the Rebar Creation command, improving accuracy and workflow efficiency.

Improve coordination by enabling associativity with level elevations when importing structures from IFC, ensuring accurate alignment and offering on-demand synchronization.

Simplify wall shape creation by enabling delimitation with geometric elements or other features.

Enhance design flexibility by extending creation of steel connections at feature level.

User Experience Value

Customize your workflow with new Preferences options, allowing couplers to match rebar colors and controlling 3D Tag visibility for new rebar layers.

I
Highlights of the new features and improved user experience of Building Designer.

I

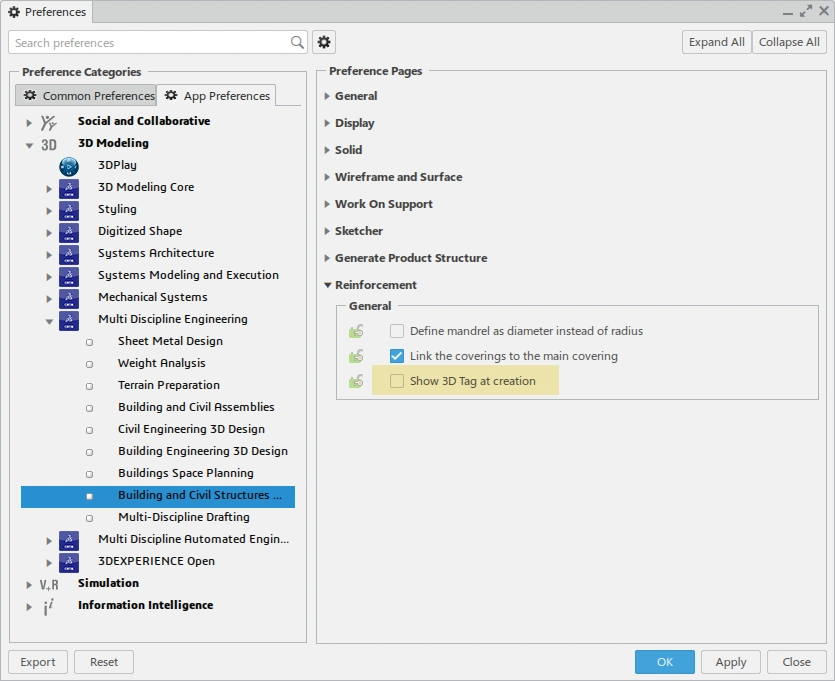

Customize your workflow with new Preferences options, controlling 3D Tag visibility for new rebar layers.

I

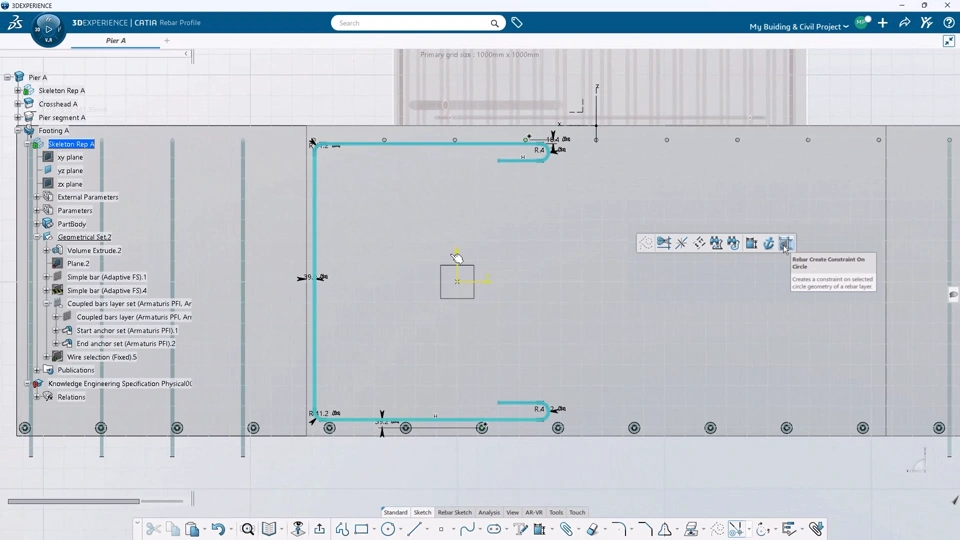

Enhance rebar detailing by enabling the creation of rebar sketches directly within the Rebar Creation command.

I

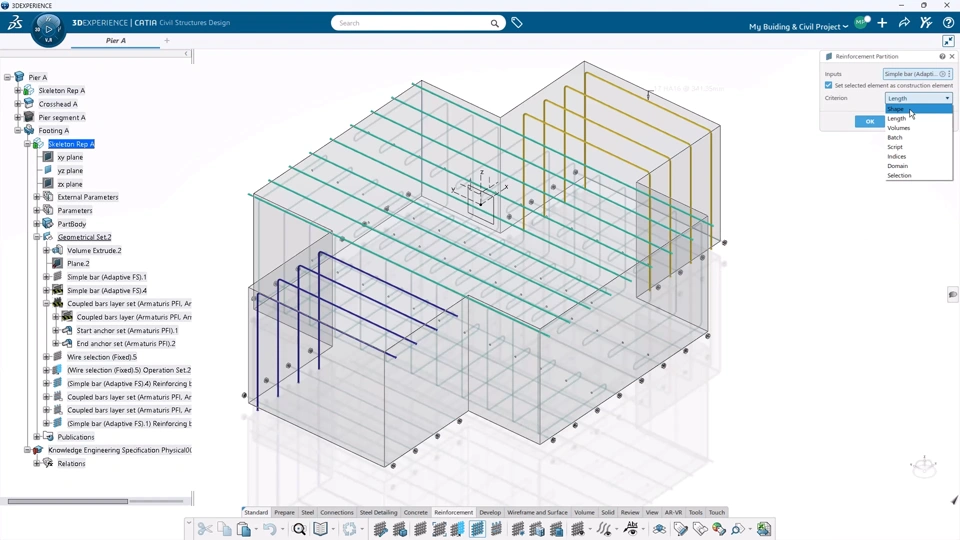

Optimize bar distribution with the new Rebars Partition command, allowing users to dispatch bars across layers based on custom criteria.

I

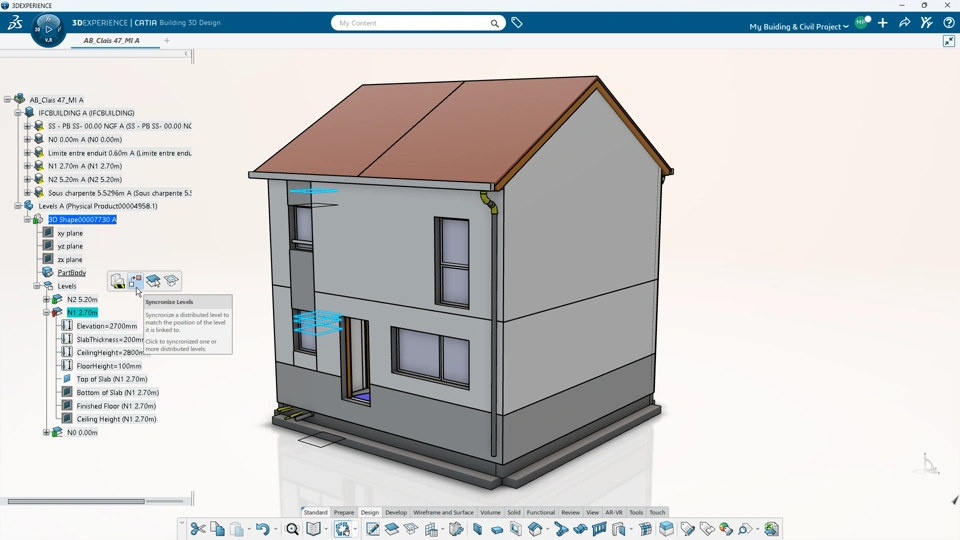

Improve coordination by enabling associativity with level elevations when importing structures from IFC.

I

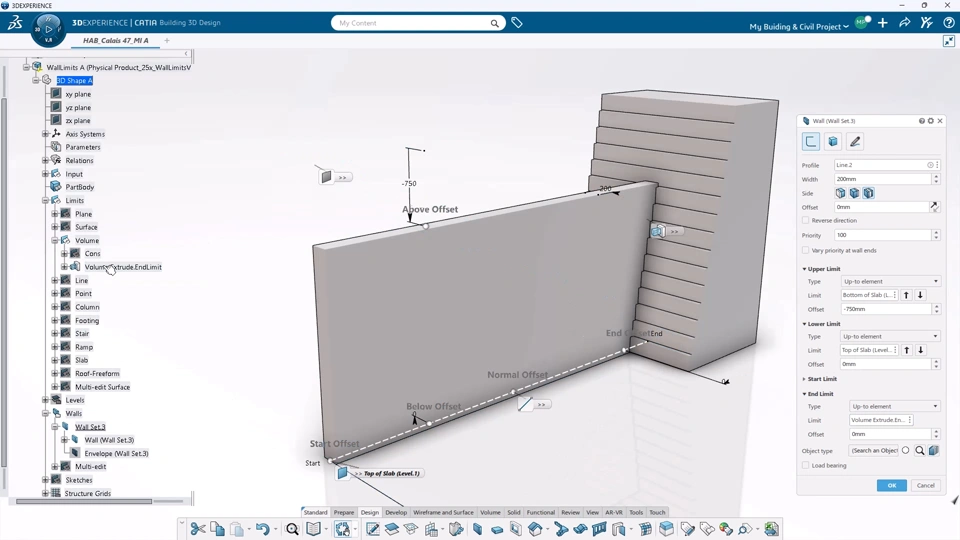

Simplify wall shape creation by enabling delimitation with geometric elements or other features.

I
Enhance design flexibility by extending creation of steel connections at feature level.
