[CATIA] 3D Pattern Shape Creator

Functional Value

​​​​​​​

In CATIA xGenerative Design:

1. Extend your design capabilities with new operators (Nesting on 2D Surface and 3D text)

2. ​​​​​Extend your design capabilities by working on polyhedral objects with main geometry operators

User Experience Value

In CATIA xGenerative Design:

1. Simplify your workflow on single screen or tablet device with the graph editor overlay mode

2. Improve your productivity with new immersive & direct manipulations, directly available from 3D or graph node selection

3. Simplify design exploration with grouping & re-ordering main parameters of your model (“controllers”)

I

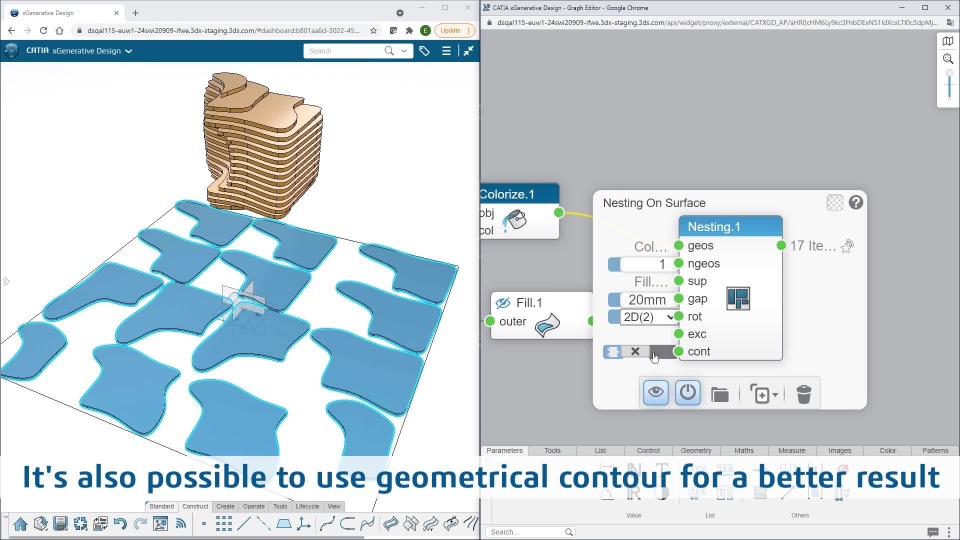

Extend your design capabilities with new operators (Nesting on 2D Surface and 3D text)

I

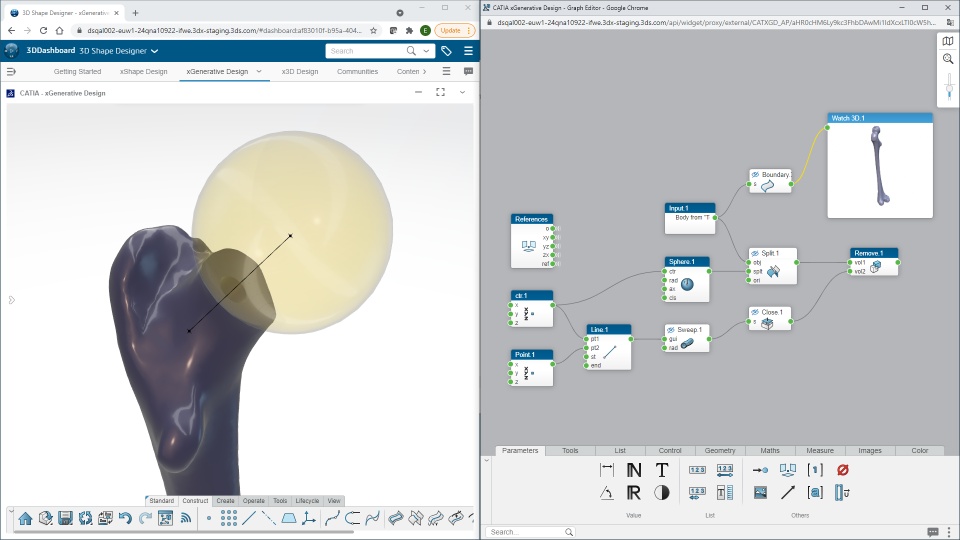

Extend your design capabilities by working on polyhedral objects with main geometry operators

I

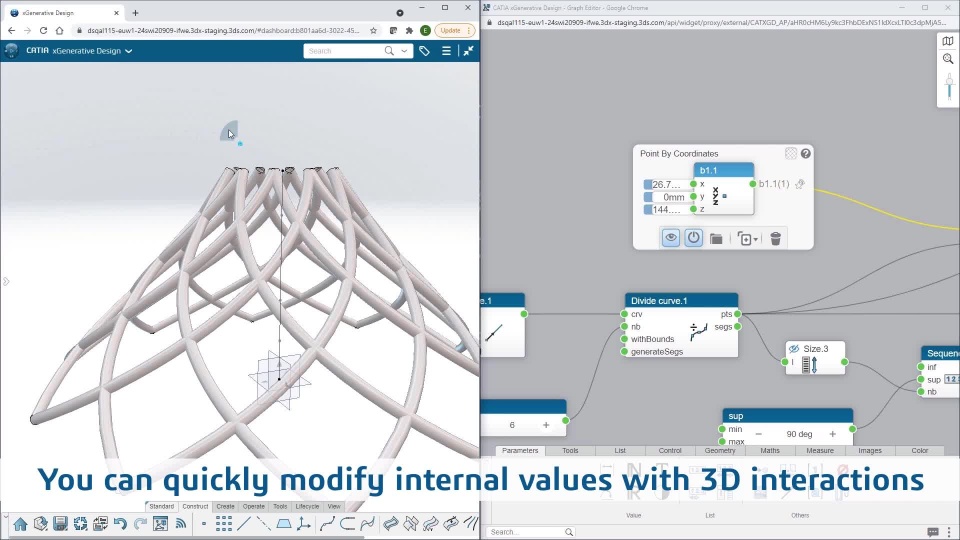

1. Simplify your workflow on single screen or tablet device with the graph editor overlay mode 2. Improve your productivity with new immersive & direct manipulations, directly available from 3D or graph node selection 3. Simplify design exploration with grouping & re-ordering main parameters of your model (“controllers”)
