DELMIA (New Roles available!)

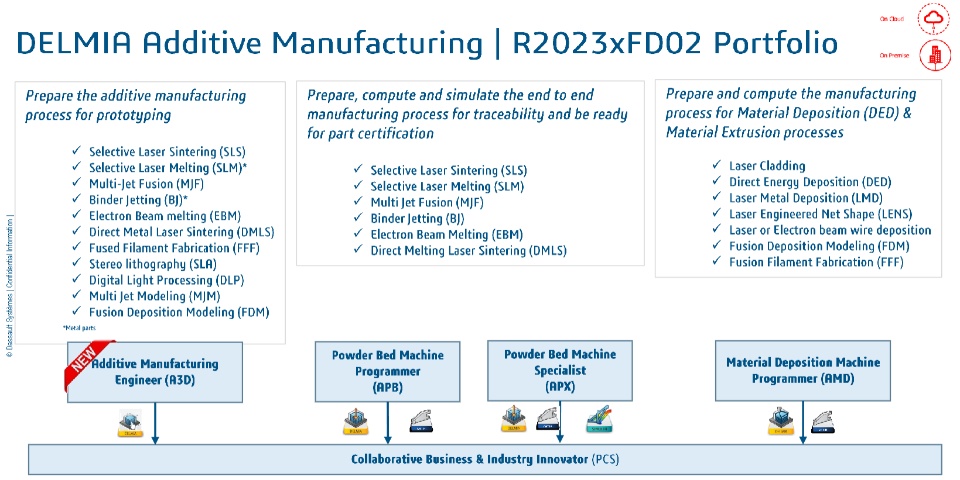

ADDITIVE MANUFACTURING ENGINEER (aka A3D)
Now available with 3DEXPERIENCE Engineer and Production Engineer Packs

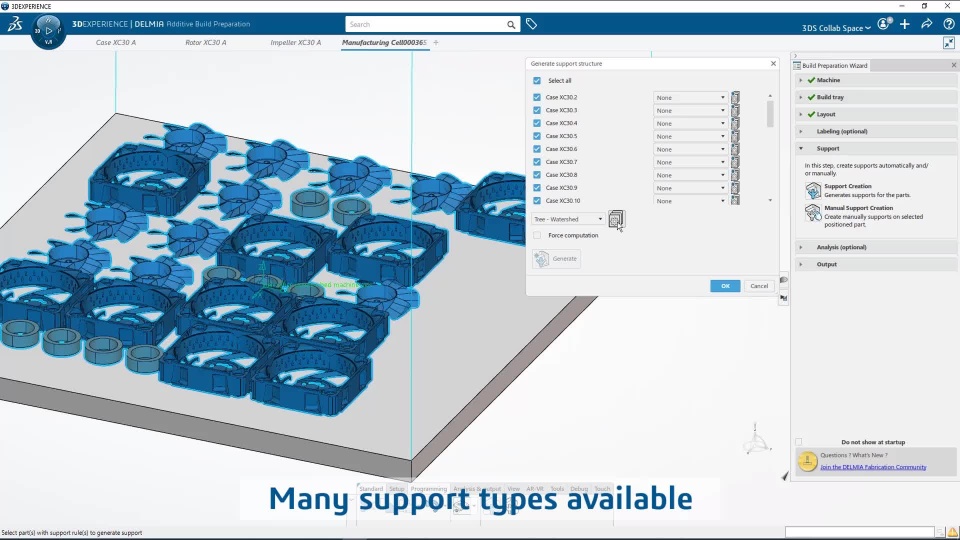

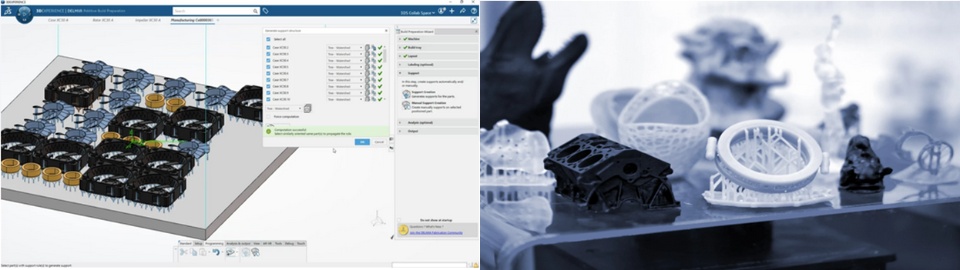

Prepare and compute the additive manufacturing process for the most common polymer 3D printing techniques for all users.
Benefits:
- Optimize print time and material usage by validating AM process before to print it.
- Ensure print success by re-using company know-how for process definition
- Extend additive manufacturing process coverage and use cases to cover: Fused Filament Fabrication / Stereolithography / Digital Light Processing / Binder Jetting / Multi-Jet Fusion / Selective Laser Sintering & Selective Laser Melting technics
- Create a scalable portfolio outside of Powder Bed and Material Deposition
NC template DESIGNER (aka NPX)
Now available with Production Engineer Pack

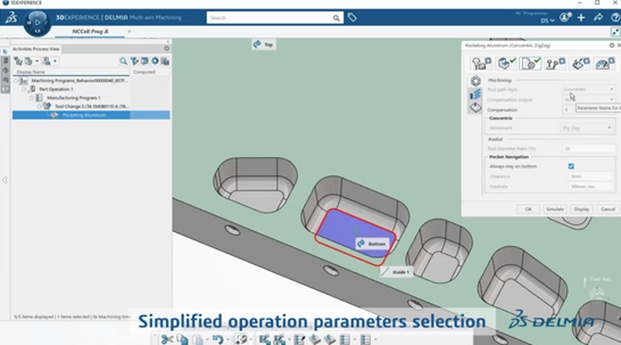

Allow to define the customers’ standards and to share it through templates & predefined operations to the NC Programmers.
Creation and authoring of Machining Cell Templates
Benefits:
- Save the customers know-how in the 3DExperience Platform
- Create Machining Cell Template associated to geometry features and resources

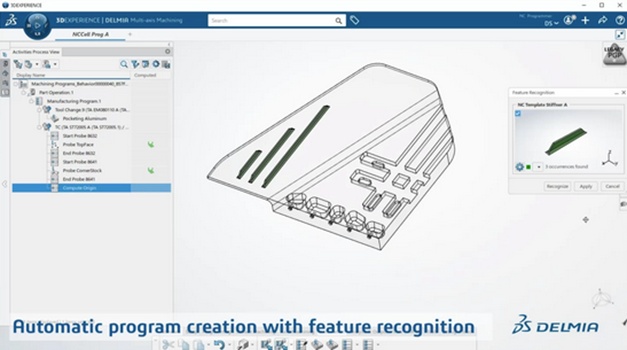

- The templates will be reused by NC Programmer to generate the NC program following the defined standard
- Customized Templates help to reduce potential errors for NC programmers

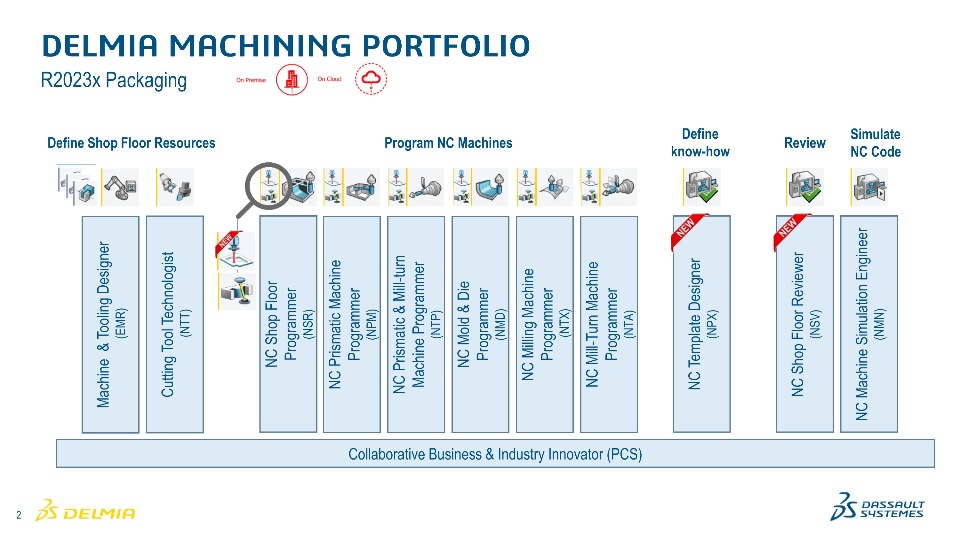

Please Click here to refer to DELMIA Machining Portfolio Document for Context
NC Shop Floor Reviewer (aka NSV)
Enable any user to review in detail a NC Program content stored in 3DEXPERIENCE from mobile device or computer.
Similar application as NC Programming Apps without authoring capabilities.
Benefits:
- From any browser access to the contain of a NC program stored in the 3DEXPERIENCE Platform
- Review operations sequence
- Review Tools & Tool Assemblies list
- Review In Process model at each operation step
- Display definition of tools, programs, activities, features, NC code, …
- Simulate tool path with or without material removal and machine kinematics
- Check detected faults (out of limits, collisions, gouges, …) and analyze the material removal results -
- Not possible :
change tools, activities, tool path computation, NC code generation
Please click document below for details on NC Shop Floor Reviewer and NC template Designer
Social/ Web-Apps
3DDashboard

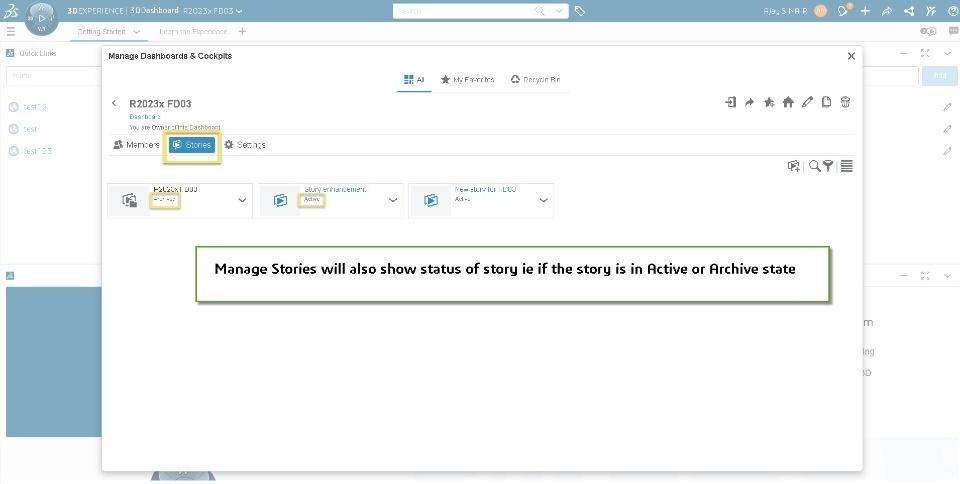

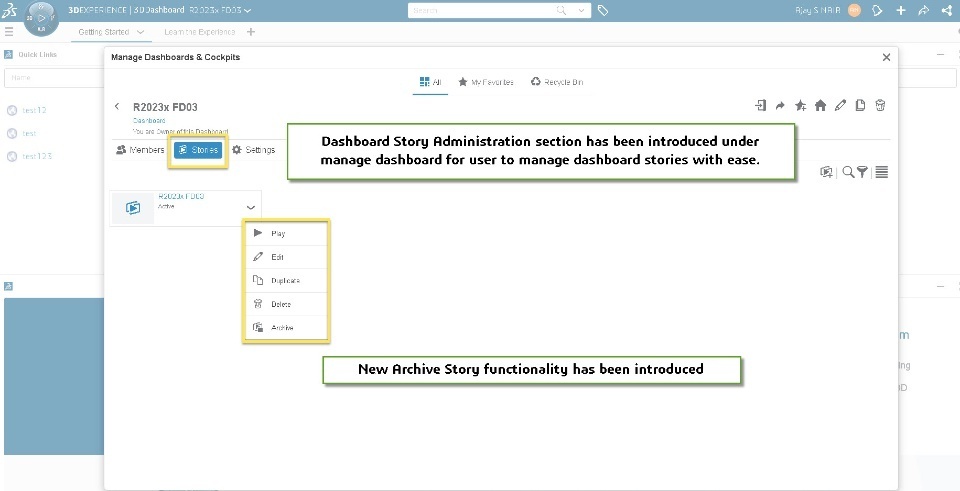

The stories administration section has been introduced under manage dashboard for users to manage Dashboard Stories with ease. New Archive functionality in 3DDashboard Story is also available Manage Stories will also show the status of listed stories ie if the story is Active or Archived. |
3DSearch & 6Wtags

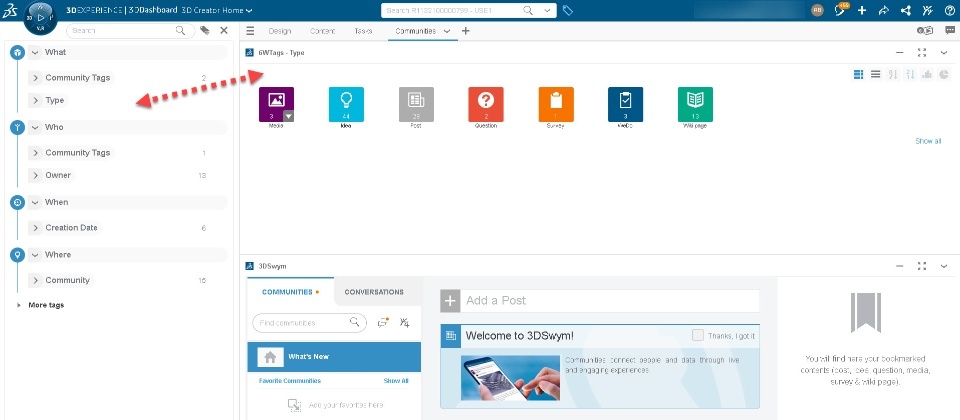

To maximize productivity, the ability to have relevant tags in close proximity to the application on the dashboard tab is crucial. These tags can be displayed in formats such as Pie, Bar, or a Flat list, allowing application users to quickly access the required results. To achieve this, users can easily drag and drop the relevant tags onto the dashboard tab, placing them conveniently near the application |
3DPlay
|
3DStory
|
Project Planner

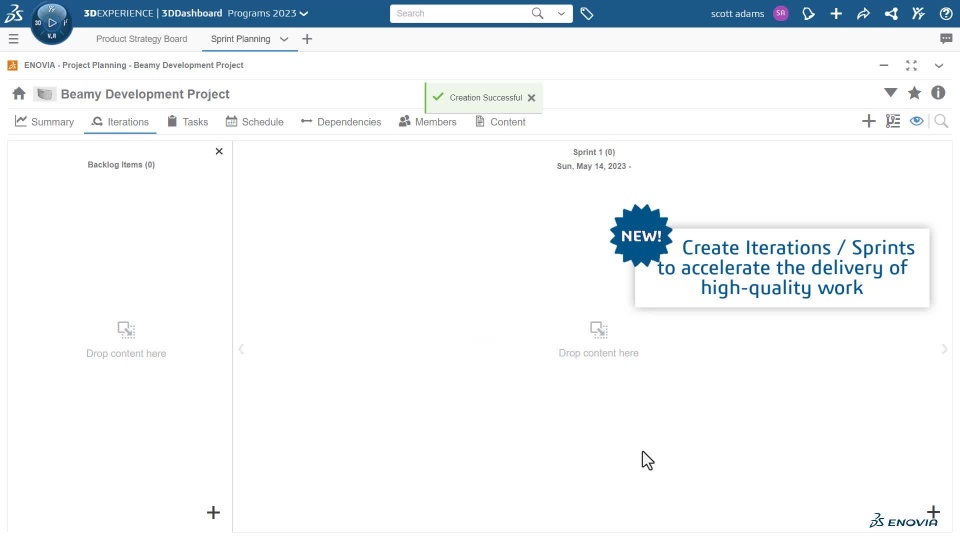

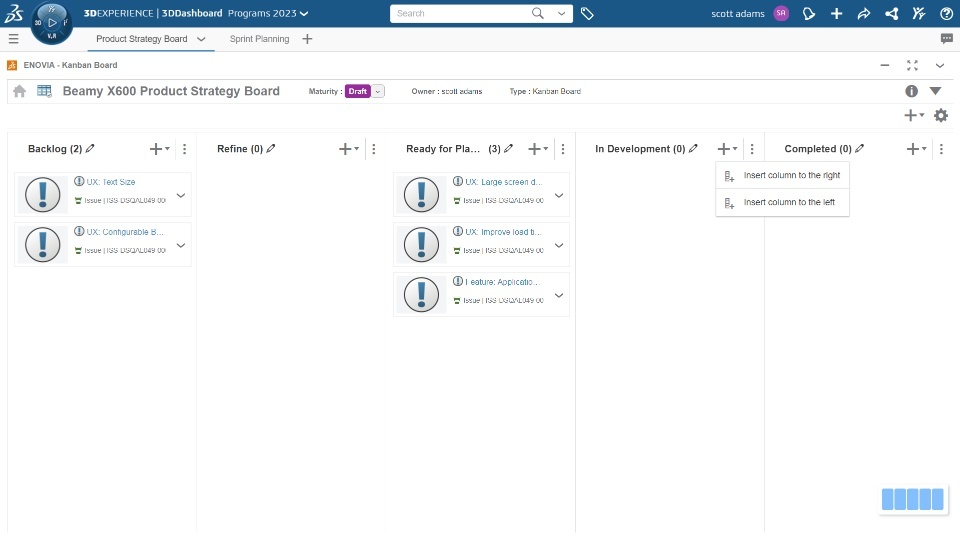

Embrace Agile planning methodologies and improve time to market by allowing users to schedule Sprints directly within the master schedule. Visualize and mature all actionable work activities to improve team efficiency by allowing the creation of Kanban Boards.

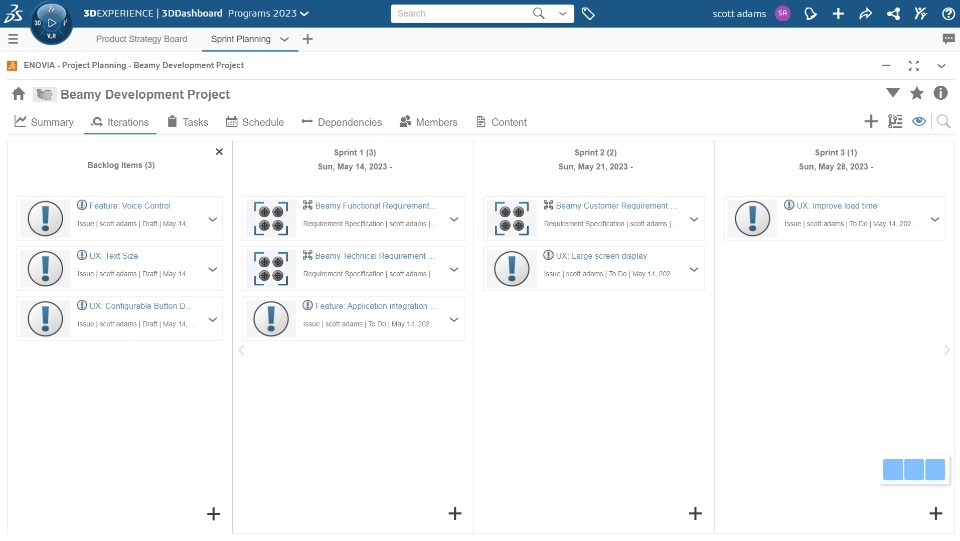

Agile Project Iterations Kanban Board |
CATIA
Structural Generative Designer

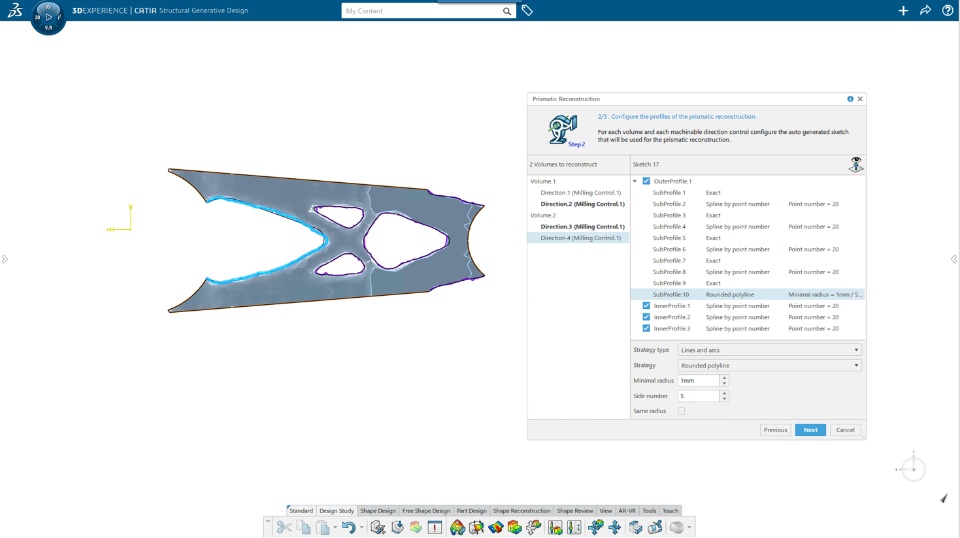

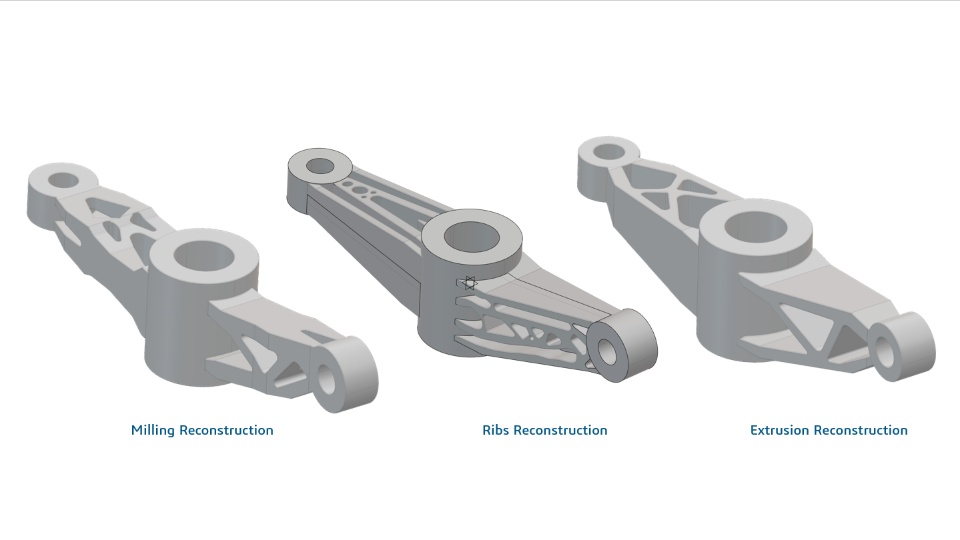

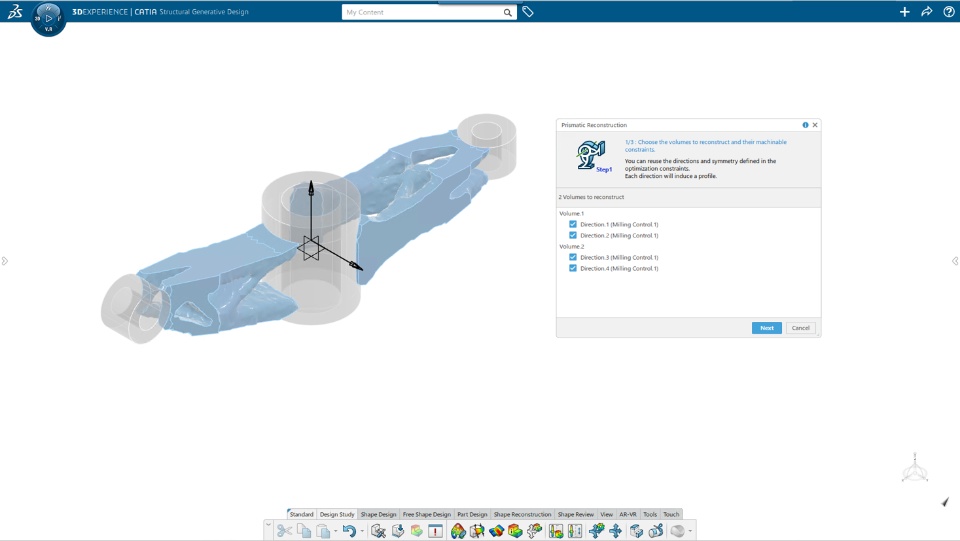

Produce manufacturing-ready detailed generative design, thanks to a dedicated completion assistant for milling, extrusion, and ribs.
x3D Design

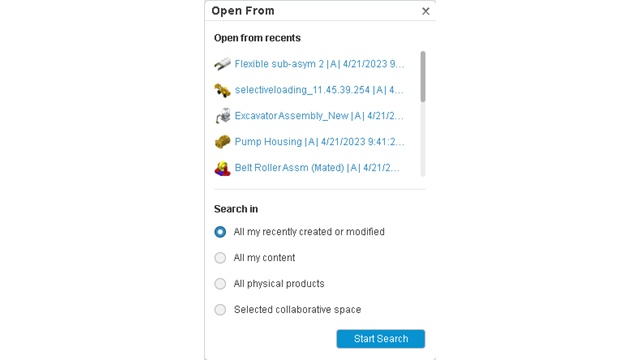

- Open and insert components efficiently with more focused search
- Ease the collaboration with the other users with the display of the lock status in the feature tree.
- Utilize your existing geometry in new creative ways with an improved insert geometry experience

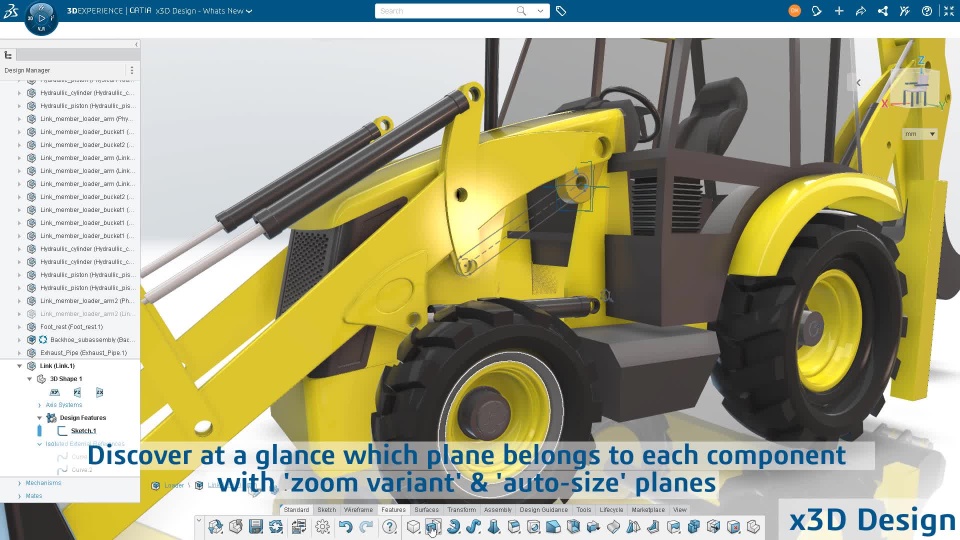

- Discover at a glance which plane belongs to each component with 'zoom variant' & 'auto-size' planes.
- Add bookmarks while importing data for quick retrieval, easy navigation and collaboration.
xDesign
Lock Icon
The Design Manager Tree displays the lock icon on physical products or 3D Shapes that are locked by you or others in an active session.
If you hover over locked objects, a tooltip displays the name of the reservation owner. You can click the lock icon to send a request to unlock the reserved objects to the reservation owner.
Benefits: You can quickly see the locked status of components in the tree at a glance.
For more information, see Locking and Unlocking Components.
Search in Widget
You can filter a specific item in the Design Manager Tree using the new Search in Widget option on the 3DEXPERIENCE Platform.
Benefits: This enhancement connects the widget search feature on the dashboard with the Design Manager Tree to help you find tree elements.
For more information, see Working in the Design Manager Tree.
Enhancing Design Assistance for Sketch

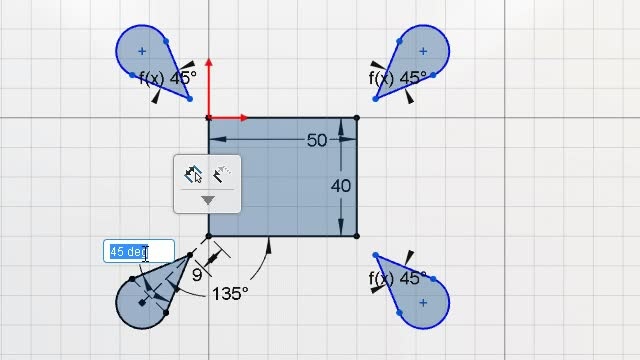

You now have constraint options when using Design Assistance for Sketch, and if you edit angles in the seed entity, the duplicated entities automatically update.
Benefits: The Design Assistance for Sketch shortcut menu provides a menu where you can select which constraints in the entities to duplicate. After editing the sketch seed entities, the entities created with Design Assistance for Sketch automatically adjust to the changes.
For more information, see Duplicating Sketch Entities.
Viewing the Mechanism Status
You can view the status of the degrees of freedom applied in your mechanism.
Benefits: Use Mechanism Status to review the number of degrees of freedom in your mechanism.
For more information, see Mechanism Degrees of Freedom Status.
xDrawings
Creating Cutlist Tables

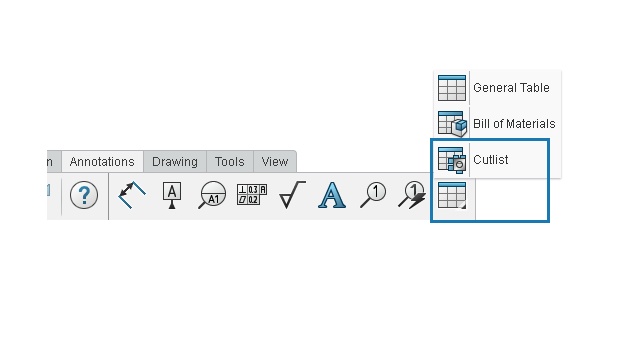

You can create cutlist tables that lay out the components of frames such as component profile, material, size, length, and other important information.
Benefits: Cutlist tables are useful in creating weldment and other types of frames.
For more information, see Creating and Editing Cutlist Tables.
SOLIDWORKS Connected
Offline Mode
You can enter and exit offline mode without closing open documents. In earlier releases, you had to first close all open documents.
Benefits: You can quickly enter and exit offline mode because you can keep your documents open.
Construction, Cities, Territories
City discover:
- New in-scene refresh to review the updated version of the design in context in city discover
- Automated color styling properties based on attributes
- New info Card available to facilitate data inspection directly in the scene
City Prepare:
- Preview a raster data source by drag’n dropping it into the City Prepare app to determine if the received data is of expected quality before import
- Save data source document directly into Collaborative Space
- Preview a polygon data source by drag’n dropping it into the City Prepare app to determine if the received data is of expected quality before import
- Add an ID column with create Auto-Incremental Attributes processor
- Select for elements only from area of interest based on an administrative polygon layer
- Convert coded attributes to end-user friendly values for easy data consultation
City Play:
- Share snapshots directly on 3Dswym from city play
Piping & Tubing 3D Design:
https://r1132100503382-eu1-3dswym.3dexperience.3ds.com/#community:4/wiki:tewa8BaGQK6kjAE7EuWhVw
- Copy attributes from reference pipe
Building 3D Design:
https://r1132100503382-eu1-3dswym.3dexperience.3ds.com/#community:4/wiki:L82_IoxeT12-axyXC1Wg8g
- Create conceptual design phase that evolves into the detailed design
Civil 3D Design:
https://r1132100503382-eu1-3dswym.3dexperience.3ds.com/#community:4/wiki:RLLbOqMJTY2uWgTzsjWfiw
- Design rebar taking into account concrete pouring phases (thanks to new couplers and anchors, rebar phasing)
- Water supply & Drainage pipe networks design
SIMULIA (New Enhacements Available)
Durability and Mechanics Engineer
Maximize mesh data reuse and automate connection realization aided by the connection rules in Assembly of Mesh simulation models
Benefits:
- Maximize simulation efficiency with automated mesh data reuse and connection realization.
- Improve user experience through enhanced manual mesh editing tools.

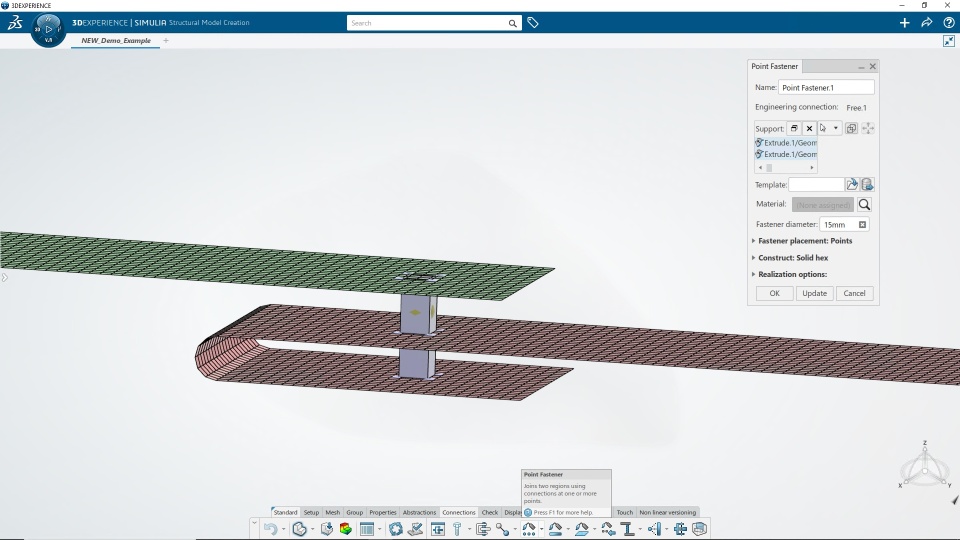

- Streamline fastener creation with self-detection and realization.
- Achieve accurate connection modeling and higher mesh quality.
- Gain a competitive edge with efficient design optimization and collaboration.
Fluid Dynamics Engineer

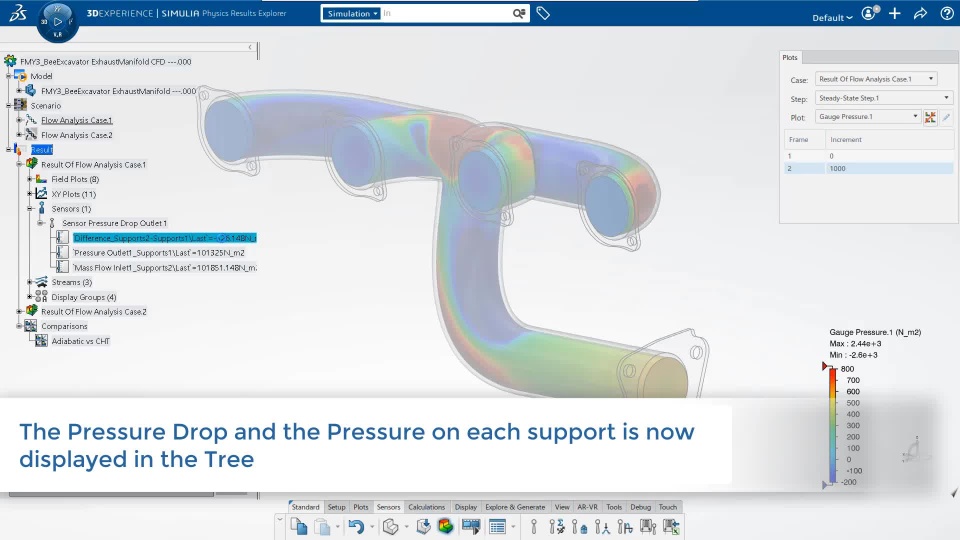

Benefits:
- Streamlined user experience enables faster information exchange between structural and fluid simulations, saving time and effort.
- Efficient setup for bearing thermal simulations is achieved by referencing local coordinate systems within user subroutines for heat source specification.

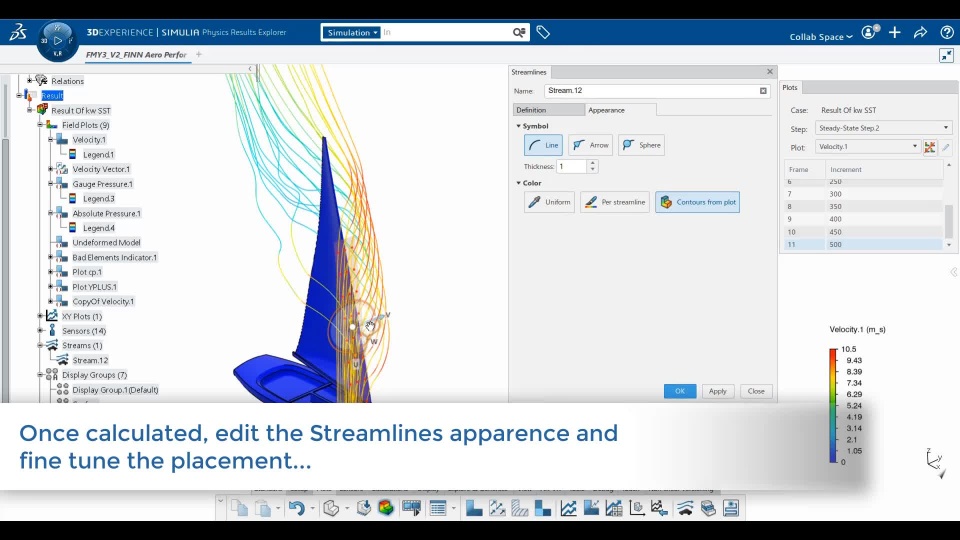

- Users can now easily interrogate external flow simulation results through 3D viewer-authored fluid streamlines, leading to increased intuitiveness and reduced task time.
- Improved user experience allows for effortless setup of history sensors to analyze fluid flow and heat transfer simulation results effectively.
- Experience enhanced productivity and accuracy in fluid simulations, thanks to the improved user experience and intuitive features provided.
Plastic Injection Engineer
Benefits:

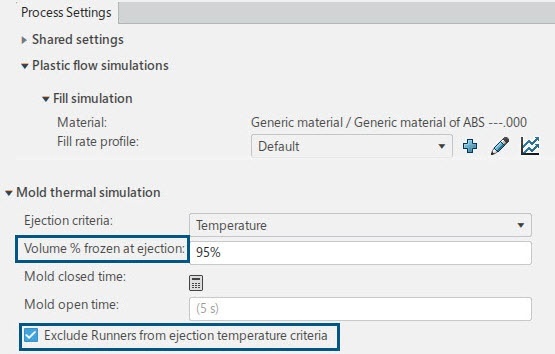

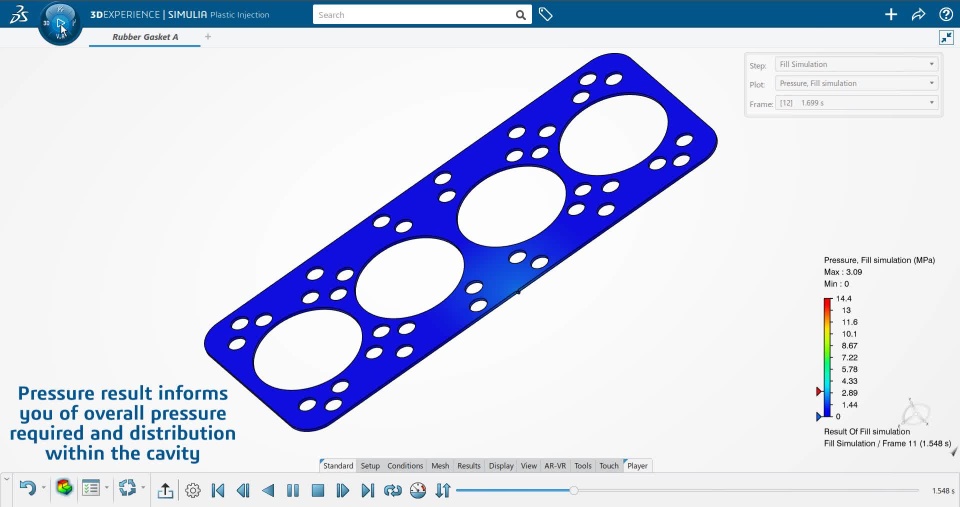

- Realistic plastics mold thermal simulations via ejection temperature criteria.

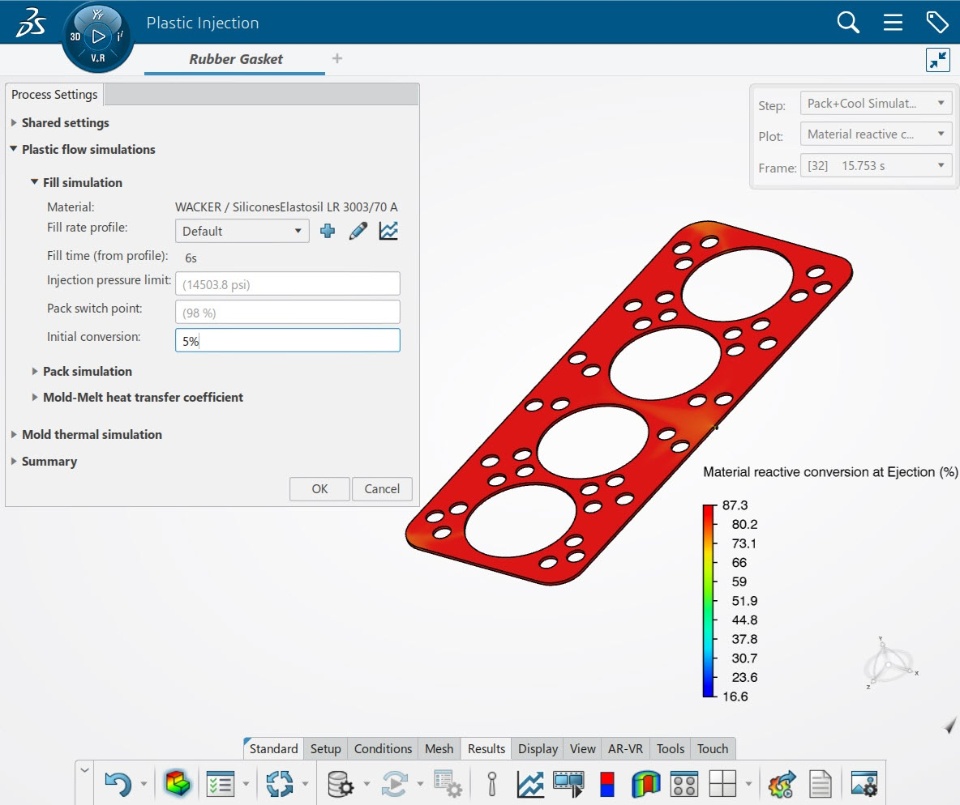

- Accurate thermoset injection molding simulations considering material's initial curing state.
- Precise structural simulations accounting for weld-lines in injection molded plastics.
- Comprehensive simulation solution for optimized manufacturing decisions.
- Advanced criteria for accurate and reliable results.
