Hello,

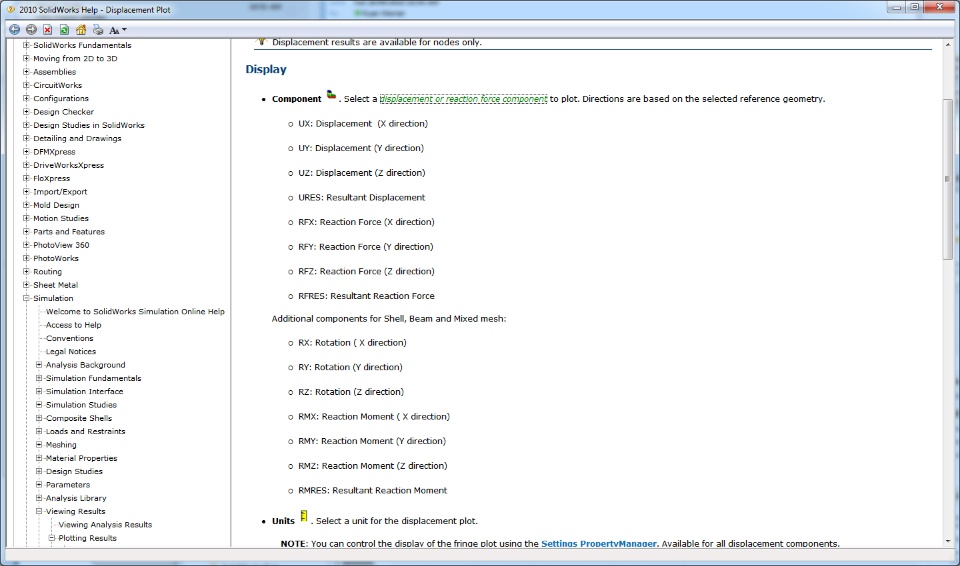

I seem to be unable to get Soldworks to produce certain kinds of plots for the simulation results. These specifically are the rotation and moment plots that should be a subset of the "Displacement" type plot. I have tried setting the default plot options in the Simulation>Options>Default Options box/tab and in there I can tell it to produce default plots with any of the X-Y-Z-Res displacement/ X-Y-Z-Res rotation/ X-Y-Z-Res moment/X-Y-Z-Res reaction force options. However when running the simulation, only the resultant displacement plot shows up. When I try to manually define/create a new plot by right clicking on the results folder in the simulation "tree" it only gives me options to select X-Y-Z-Resdisplacement and X-Y-Z-Resreaction force. Can anyone tell me what might be going on?

Running SW2010 Premium  64bit with Sim Pro on win XP 64

-Mike
