Hi,
I am designing an intake system for a single seater race car (central inlet - plenum - four outlet pipes).
I have the model generated and have run steady state flow simulation (air entering inlet at velocity and dispersing, four outlets set at ambient pressure). The flow works fine but I need to set a time dependant pressure drop from the outlets.

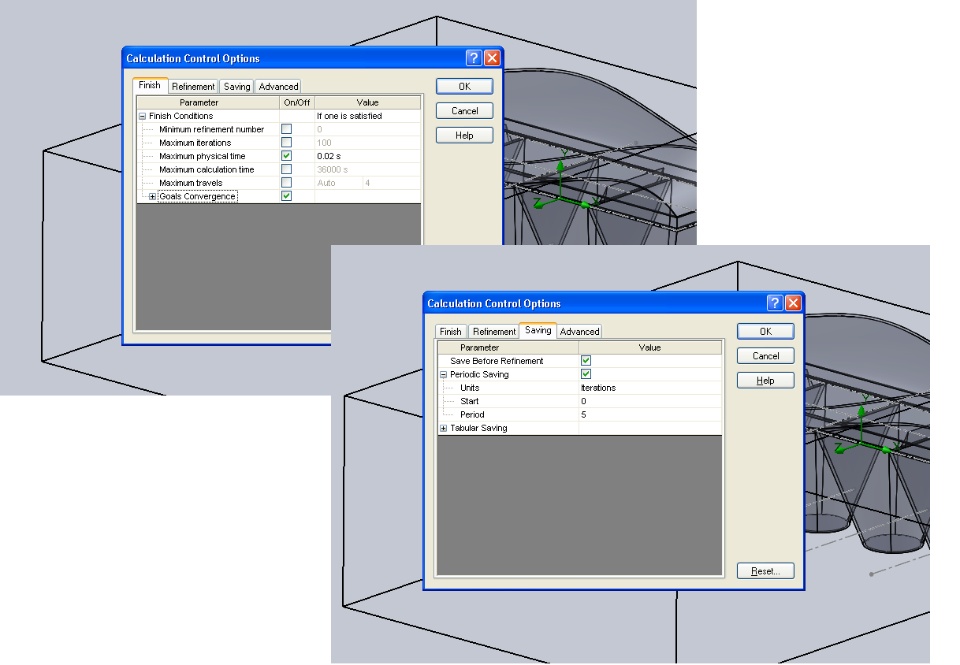

I specified everything as per this video on youtube http://www.youtube.com/watch?v=vIxK6K-XSGU

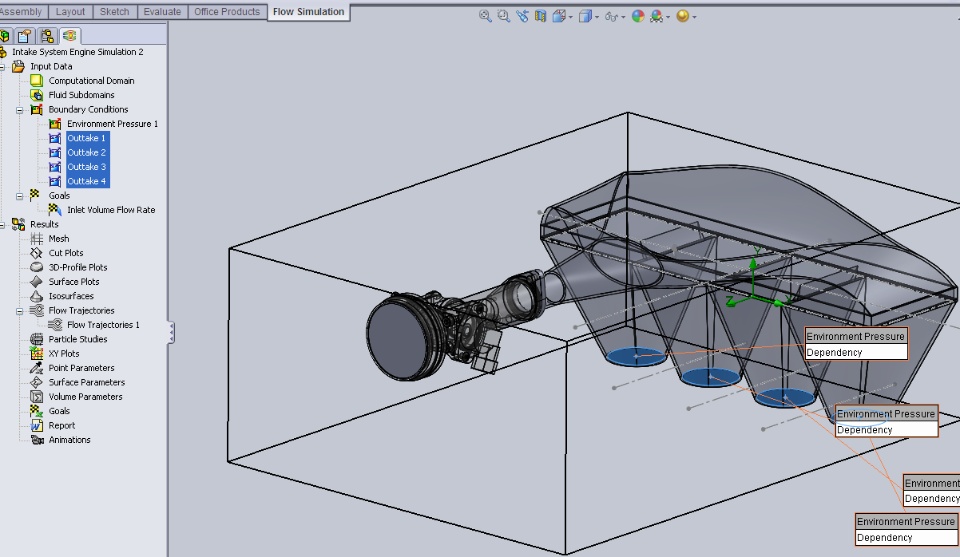

and specified the dependancies on the outlet lids.

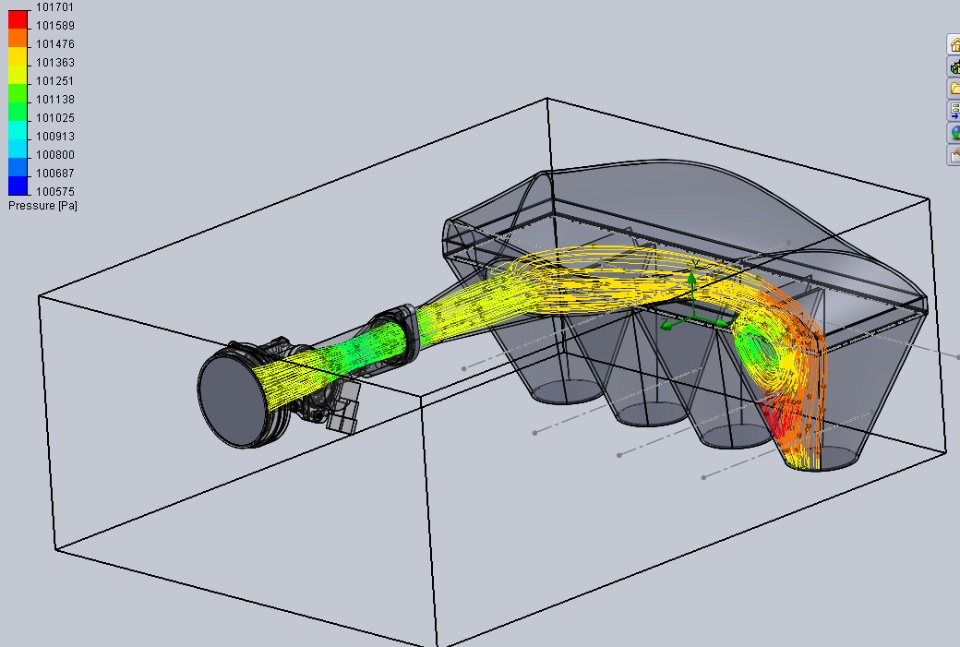

I ran the simulation but the flow trajectory that returned was as if it was just showing the very last air flow path, straight to outlet no.4.
What am I missing to get an animation of the complete cycle

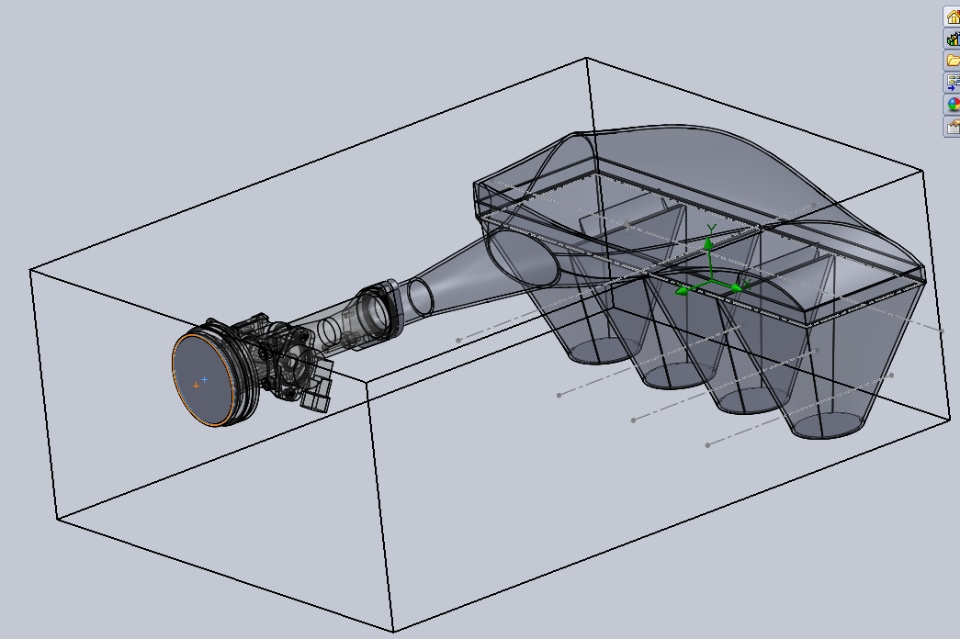

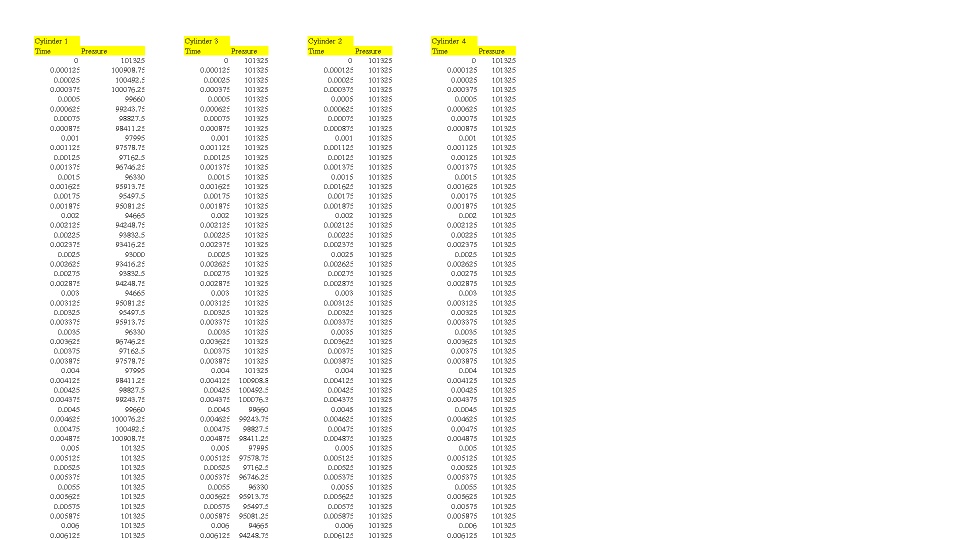

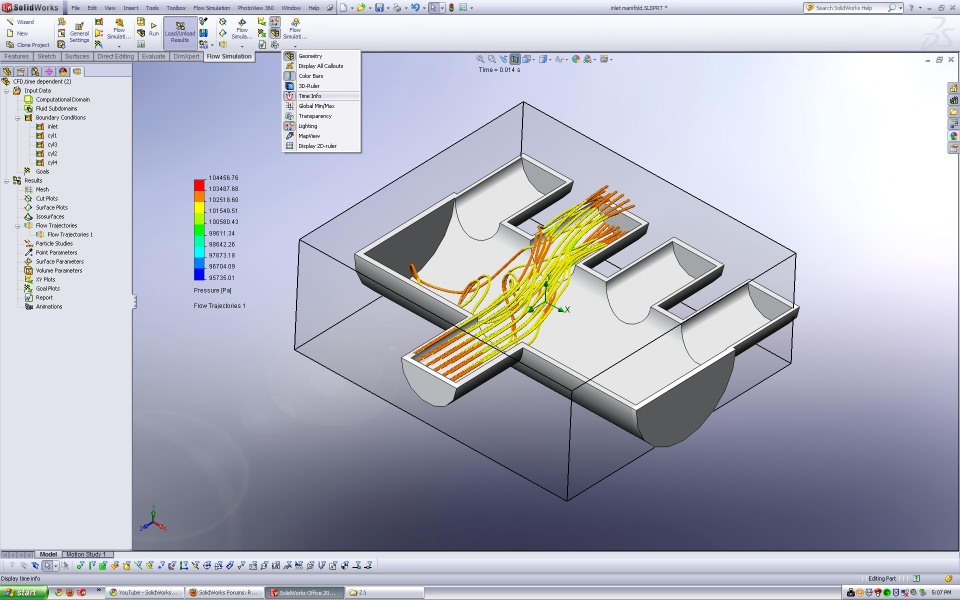

Attached is the excel data for the pressure drops and a picture of the intake system and the flow trajectiry that returned.
SolidworksFlow Simulation
