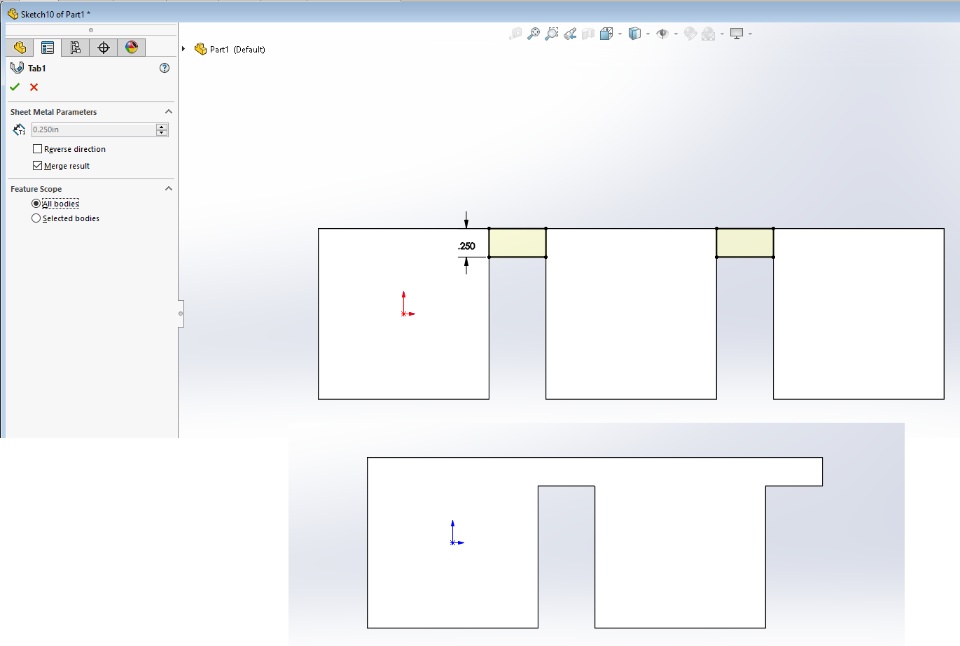

Can anyone explain my before and after image here?
Is this just a limitation of sheet metal features, or the "Merge result" functionality? The 3 bodies were created via Base flange, Linear pattern (of the body).
Is it because I am using a linear pattern?
Can anyone reproduce this result?
I am certain I can create this another way if necessary, this is just a simplification of an issue I am seeing. Basically I wanted to do something similar so I could pattern 3 existing mounting plates and merge them into a single part.
SolidworksSheet Metal
