For the life of me I cannot figure out what is going on.

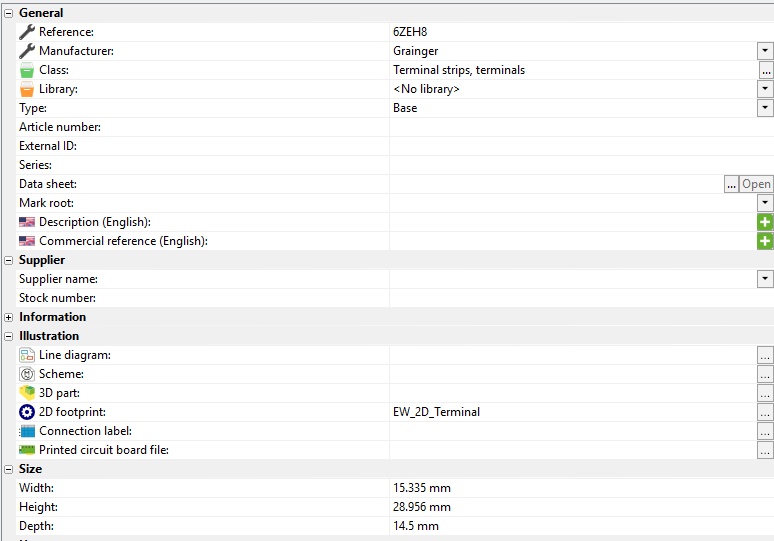

I have 18 terminal blocks that I want to add. I have associated a manufacturers part with each terminal block.

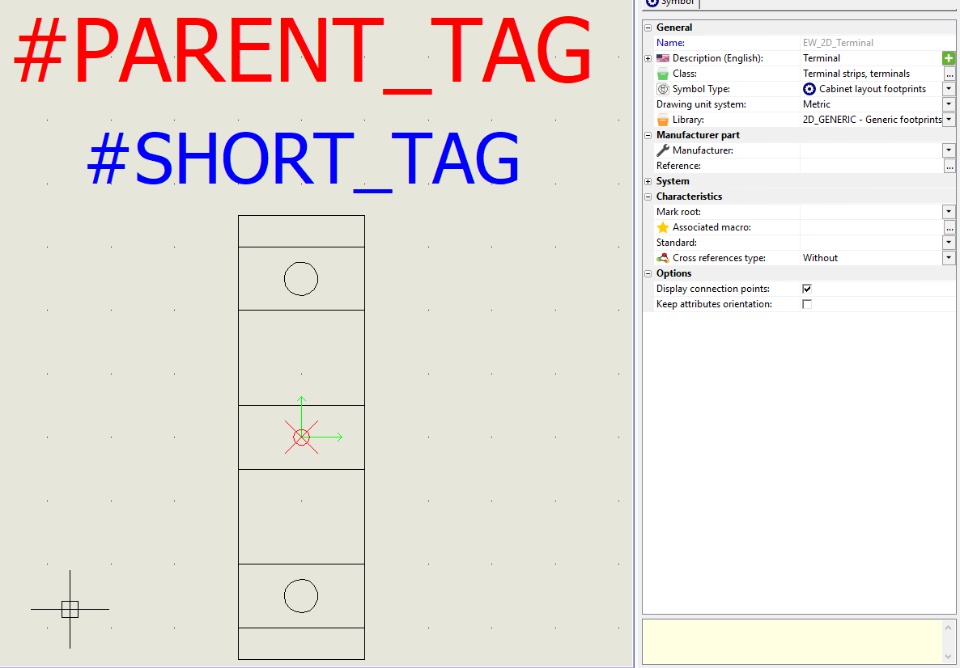

I have a drawing 2D footprint associated with that part that is drawn i believe to the correct scale.
But whenever I attempt to place the terminal block into the cabinet layout drawing the individual terminal block ends up being stretched to the size i am expecting all of the terminal blocks to be.
I am right on the edge of finalizing this design packet but this is the last issue standing in my way. I have tried removing the dimensions from the manufacturer part, changing the 2D layout. I am going to try and change the scaling in the cabinet drawing but I am about at my wits end here what am I doing wrong?
SolidworksElectrical
