i have solved this problem using ansys software. in this problem we have been given a cantilever beam with one side fixed and other side free to move.
values give dia of semicircle 150mm , depth- 0.25 and width -0.15mm ,and A1 ,A2,A3,A4 forms a square with its center at the un-displaced point A and its length is -60mm

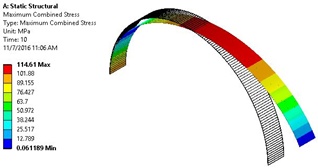

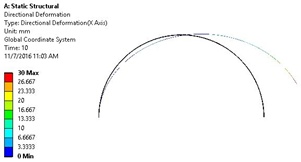

this kind of initial diagram we get.
i am trying to do this in solidworks but i am not getting how to use the undisplaced length -60mm and get the stress and the find the forces in X and Y direction.
i tried but reached only till the simulation part with one end fixed.please can somebody help me with this. thank you
it will be really helpfull.
