I have difficulties figuring this out:

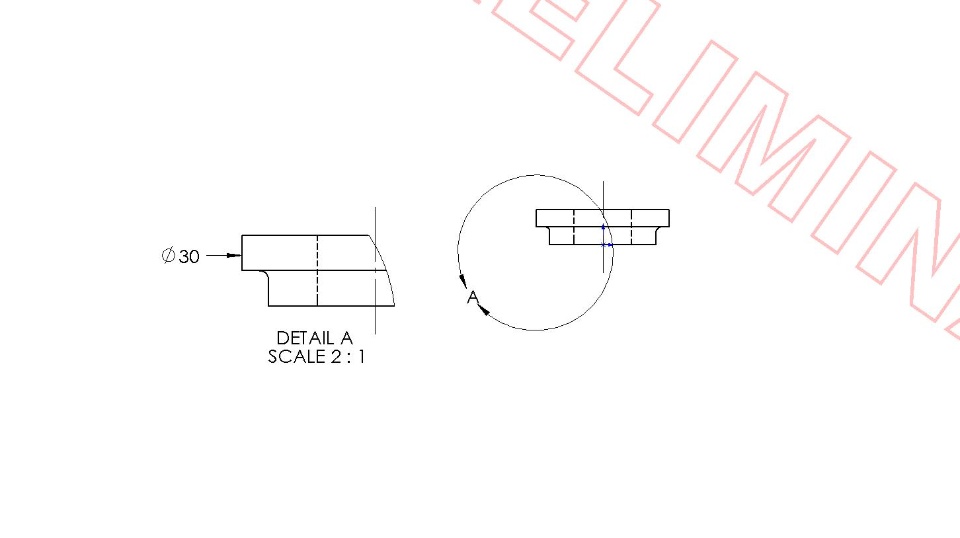

I have a detail view of an edge of a flange and I need to show a diameter but being a scaled up detailI only want to show one arrow with the dimension, as the full diameter dimension line will extend beyond the boundary of my format. Is there a way to show that in a detail view or the only way would be a note with the dimension?
Thank you
