I have an issue with a curved sheet metal piece whereby the flat pattern is angled when creating a 2D drawing.
The flat pattern was created by selecting a side.

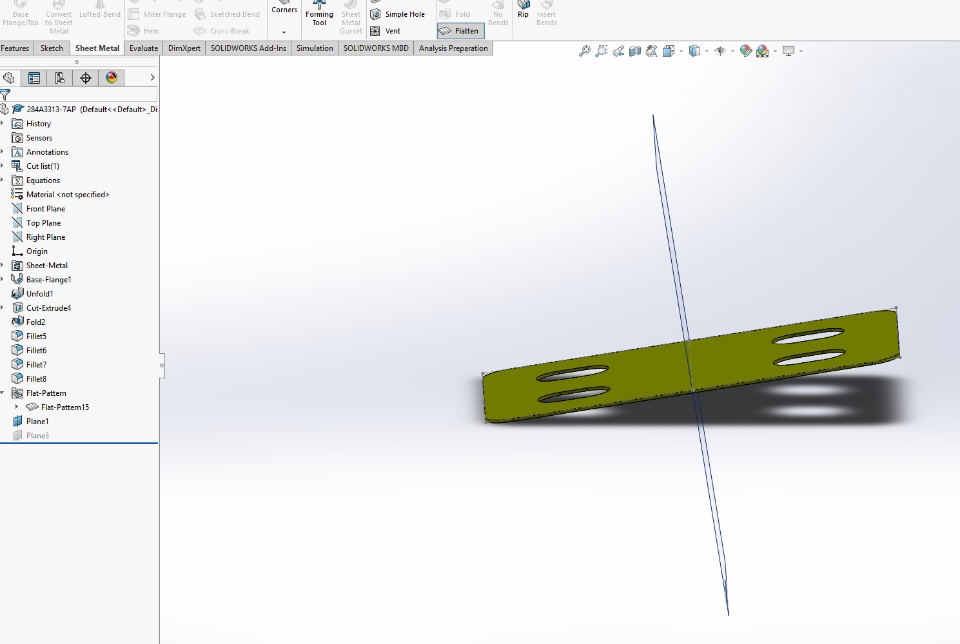

As you can see, this results in an angled view.
In the view manager, the flat pattern shows the curved version.
Help?
Thanks!
