Hi
Atattched is a Zip file with a PDF file with a simple 30mm thkshape with a 11 deg chamfer this = a 6mm bevel.

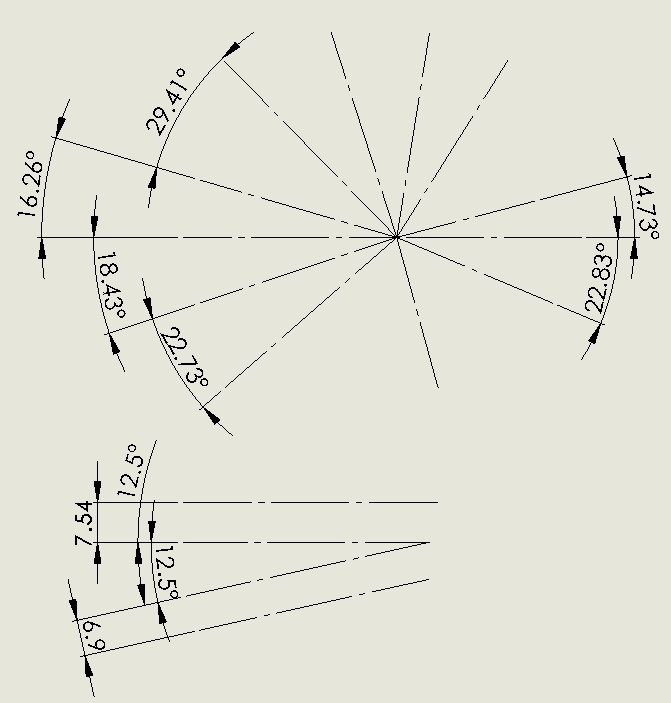

The dimensions on the section view look upside down in relation tothe view, what i would like is to be able to do is dimension likethe hand sketch next to it.
I know this is contary to the draughting standard (ISO), but is itpossible.
Or what would you surgest as a work around. I do not want to rotatethe view, and have been placing a line under the dimension (thiswas also missed)
The reason for asking is one of our burners read the 6mm dimensionas 9mm and burnt a 20 meter plate incorrectly.
Thanks
