Good PM,

Please allow me to request for your expertise in Flow Simulation using Solidworks.

We have this 12"Ø x 4200mm Mixing Spool design I want to know the expected flow paths of the fluid from inlet to outlet of the spool.

We consider the following parameters:

Fluid: Geothermal Brine (Saturated around 2-5% Steam)

Design Pressure: 457 psig

Design Temperature: 222 ºC

Operating Pressure:175 psig

Operating Temperature: 184 ºC

Viscosity: 0.140 Cp

Density: 875 kg/m3

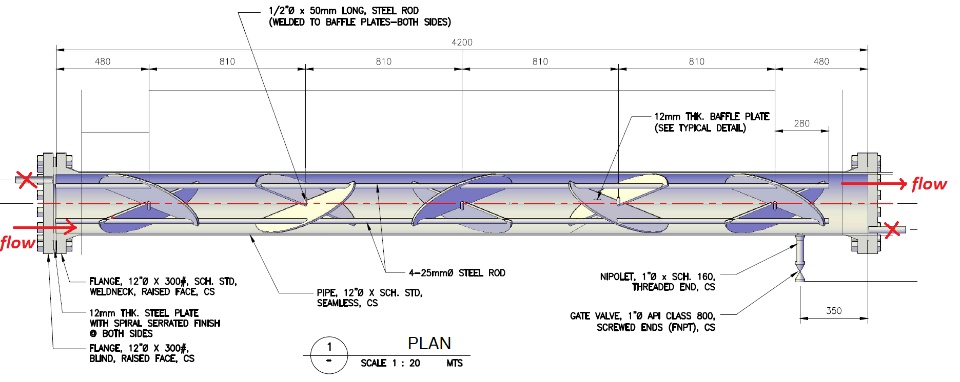

Attached is a CAD File of the design.

Hope someone could help me get a representation or preview of the flow paths for this design.

Thank you.
