Hi,
I have an assembly on which I have run a Motion Analysis, and Ihave attached the ZIP file to this post. I am having troubleplotting the distance between two faces as a function of time and Iwas hoping one of you could help me a little...
If you go into Motion Study 1 and take a Section View using theFront Plane then you will be able to see the two faces in question.I have added two screenshots to make it a little clearer.
The maximum distance apart these two faces go is roughly 90mm, andthe minimum is 0mmm when they are in contact. As such the plotshould be a graph going from 0mm to 90mm...
Can anyone show me how to accomplish this?
How would one plot the closing speed between these two faces?
Any help is much appreciated!SolidworksMotion Studies
I have an assembly on which I have run a Motion Analysis, and Ihave attached the ZIP file to this post. I am having troubleplotting the distance between two faces as a function of time and Iwas hoping one of you could help me a little...

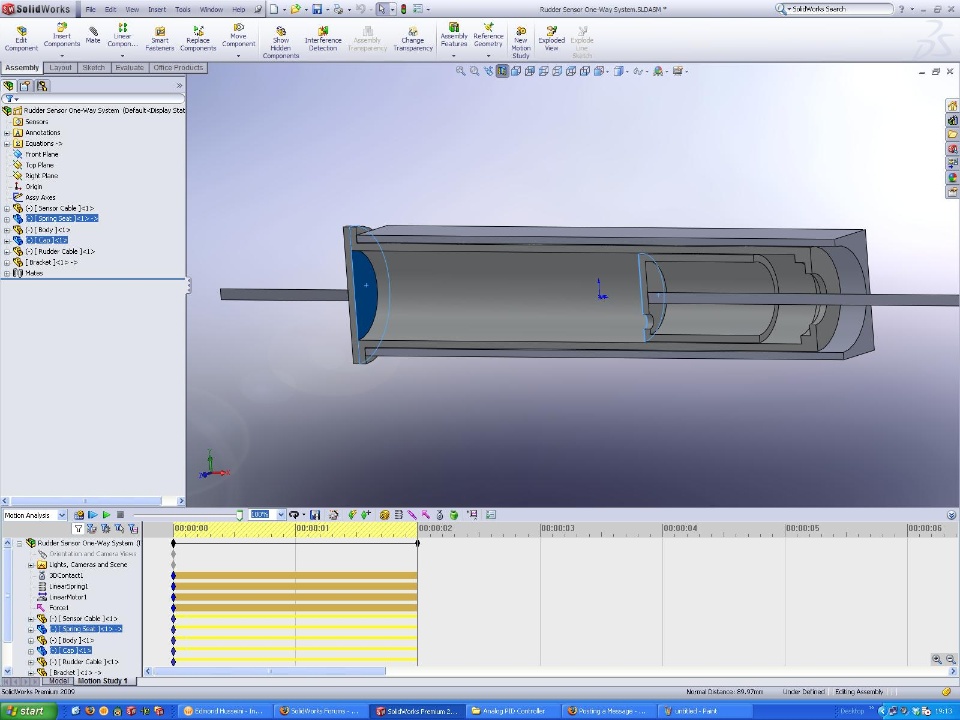

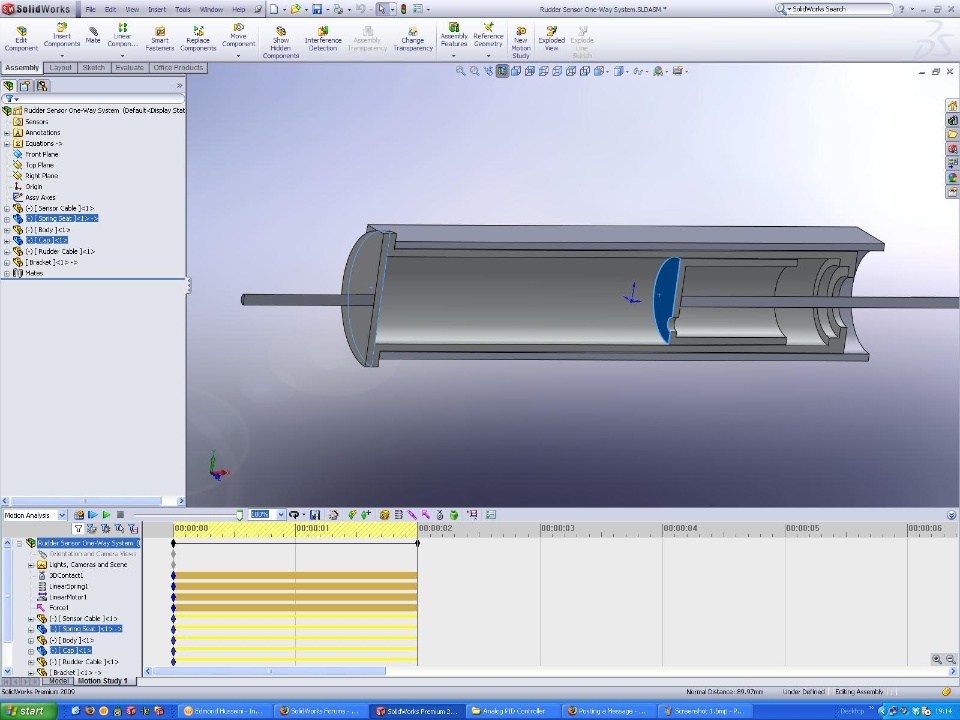

If you go into Motion Study 1 and take a Section View using theFront Plane then you will be able to see the two faces in question.I have added two screenshots to make it a little clearer.
