Re: Custom Properties - Using Drawing Values in Properties Tabs

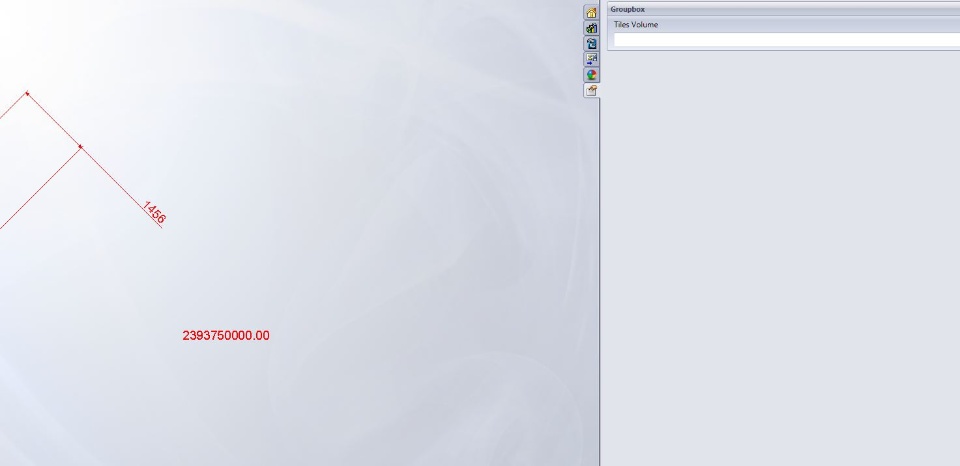

Heres the picture and now i managed to wipe the info i put up..

Basically, Im trying to Get a Mass or Volume, or any other standard solidworks Custom property onto the Drawing Level Custom property tab.

So i have linked The StandardVolume of a part within a drawing as a annotation, this is shown in the picture.

The other Is a diamention.

Now if i click in the property tab field, then on the diamention it fills in the black.

However if i do it on text. or on the Volume shown it does not.

This means so far i cannot really do it.

The only way i have managed to do it is By a really big work around.

Go to part properties, Copy the formula from tha PART property sw-volume@partname etc and paste that into a new property on the Assembly and then link the Assembly property in the drawing.

Any help/other ideas?

SolidworksDrawings And Detailing
