Dear Flow Simulation Forum Members,

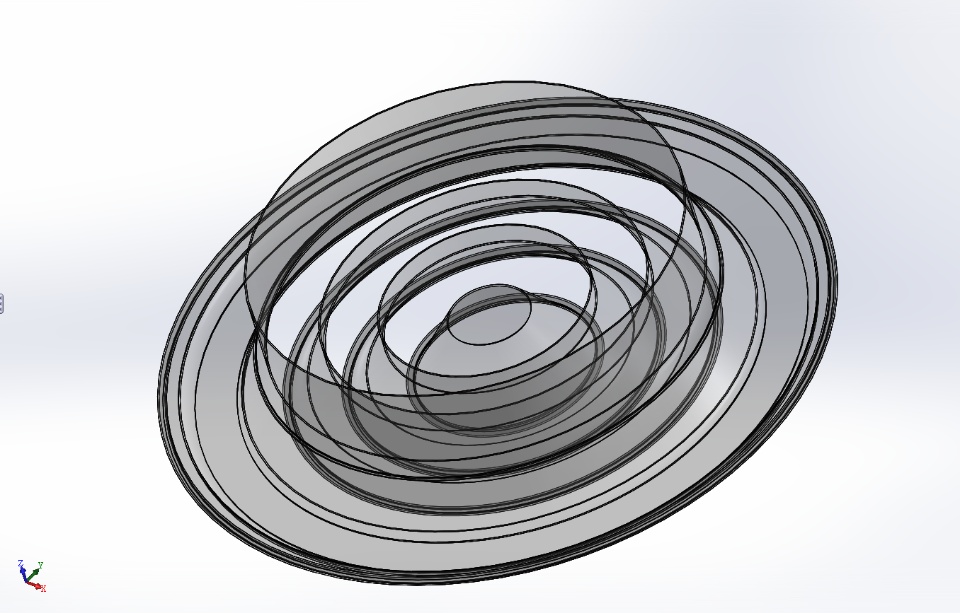

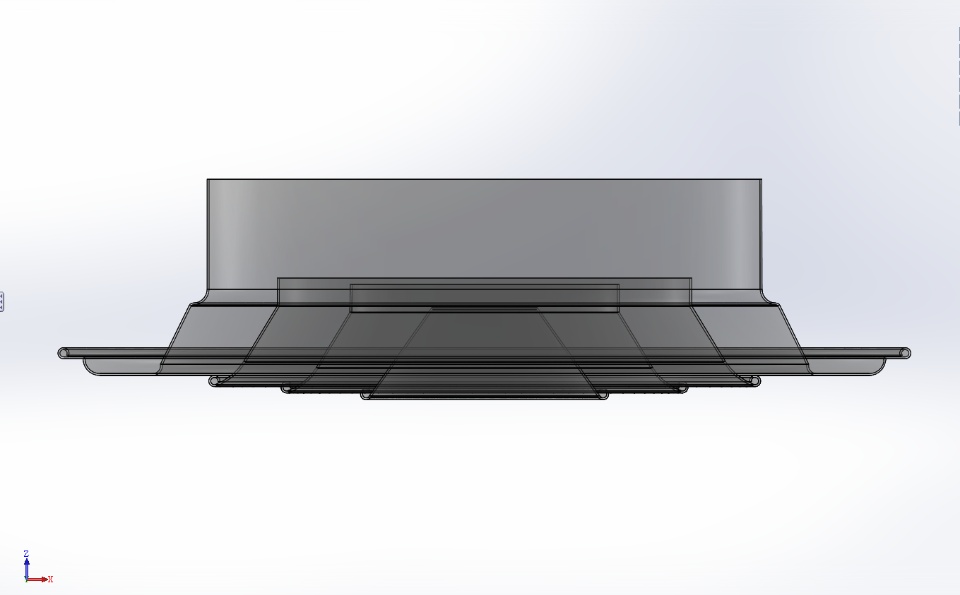

I am a new user of the Flow Simulation. I tried to use it to simulate the flow field of a circular air diffuser.

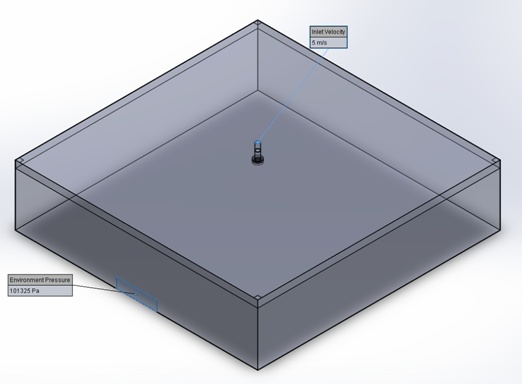

The dimensions of the room are 12m*12m*3m. The position of the diffuser is in the center of the roof. The inlet velocity is 5m/s.

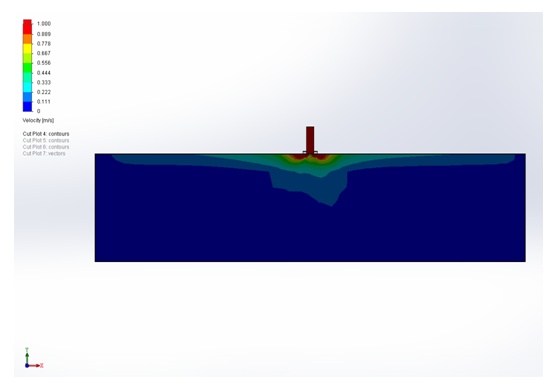

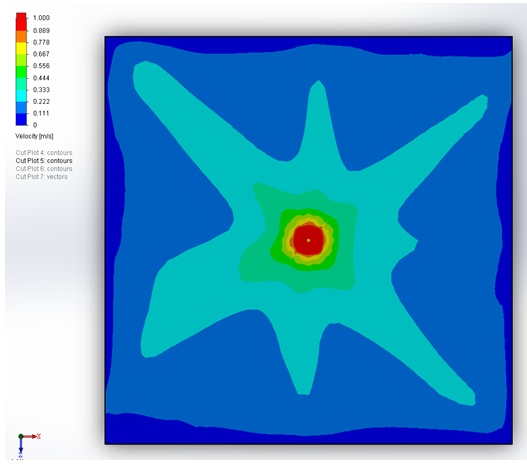

The following are the results (velocity contour, horizontal and vertical views).
Since the shape of diffuser is circular and the shape of room is symmetric with diffuser’s axis, I think the results should be concentric circles around the center point. But it looks quite strange. Are these results right? Or I miss something when running Flow Simulation.
Hope someone can give me your opinions.
Thank you.
