Good morning, I'm trying to create a sheetmetal part of conical with tabs on the radius and and a interlocking tab in Solidworks 2014 with a flattpatern. I have tried several approaches and have searched for an answer already on the forums.
I have already scanned these topics:
The last one was the closest but i was unable to open the file in 2014

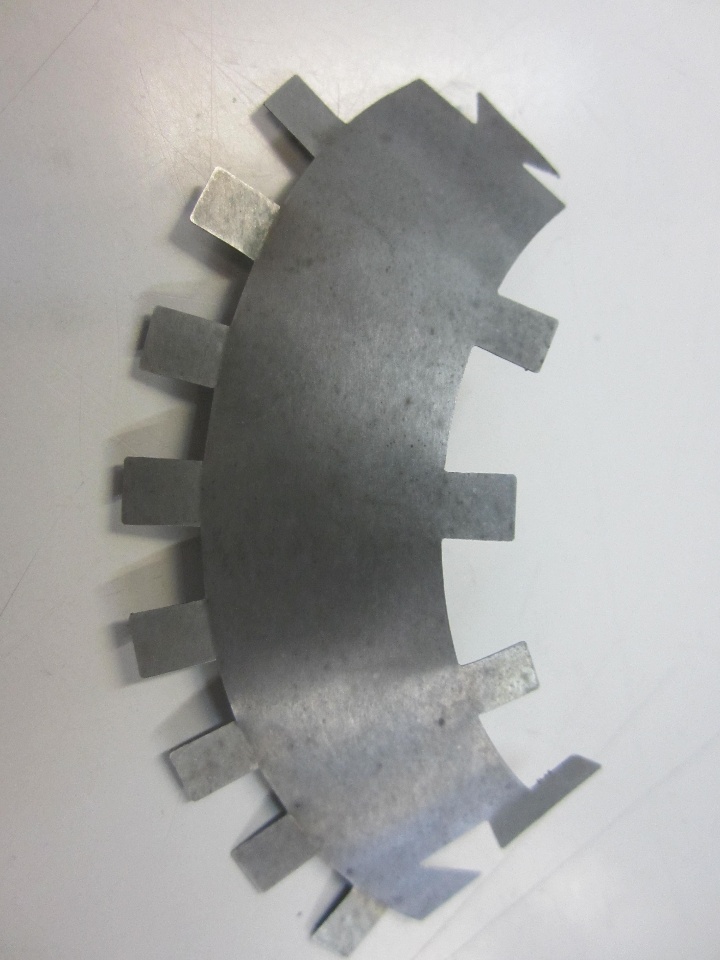

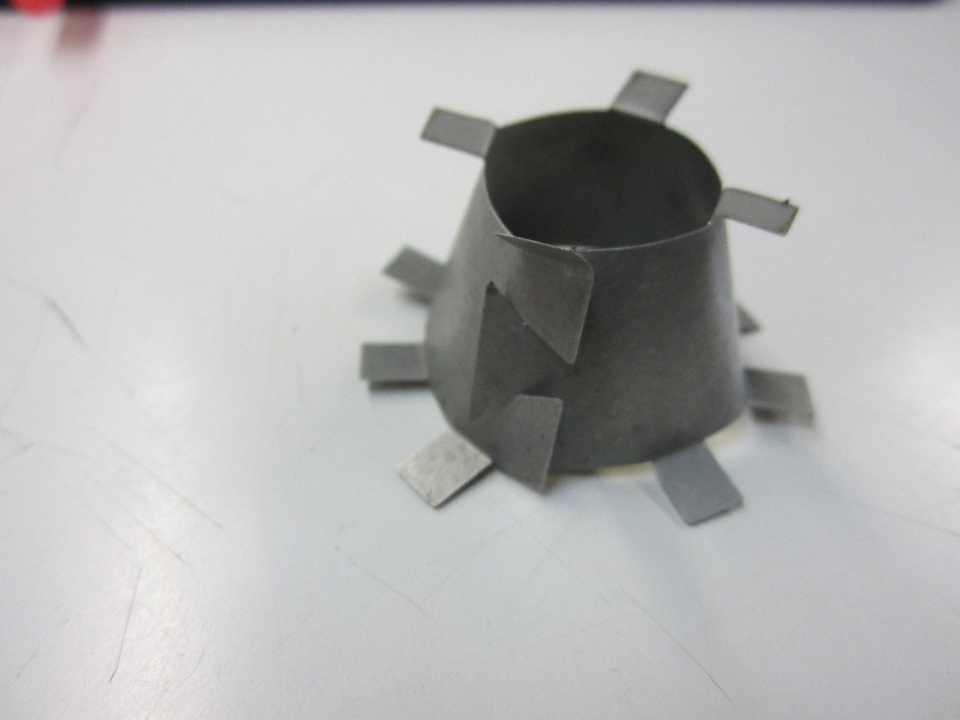

Here is an example of the part im trying to model up
So this is what i have tried:
I tried to do a sweep flange, and make cut-outs for the tabs, but they don't display in the flat view. I also was not able to unfold it to add the cuts in the unfolded position.
I also tried with a formed loft bend with added segments to act as a straight edge, thinking SW would let me add an edge flange. However that was not the case. I also tried unfolding it and adding a tab on the straight edge area, but it would not fold up.
Thanks in advance for any help.
