Hello community,

I like to mill a part via visuaMlILL.

Therefore I need to export the top view in a DXF format.

The part (top view)

DXF export in SolidWorks (still OK no SolidWorks Educational Edition added)

Unfortunately a line is getting destroyed during this process (see pictures). My assumption is that the adding of the “SolidWorks Educational Edition” is responsible.

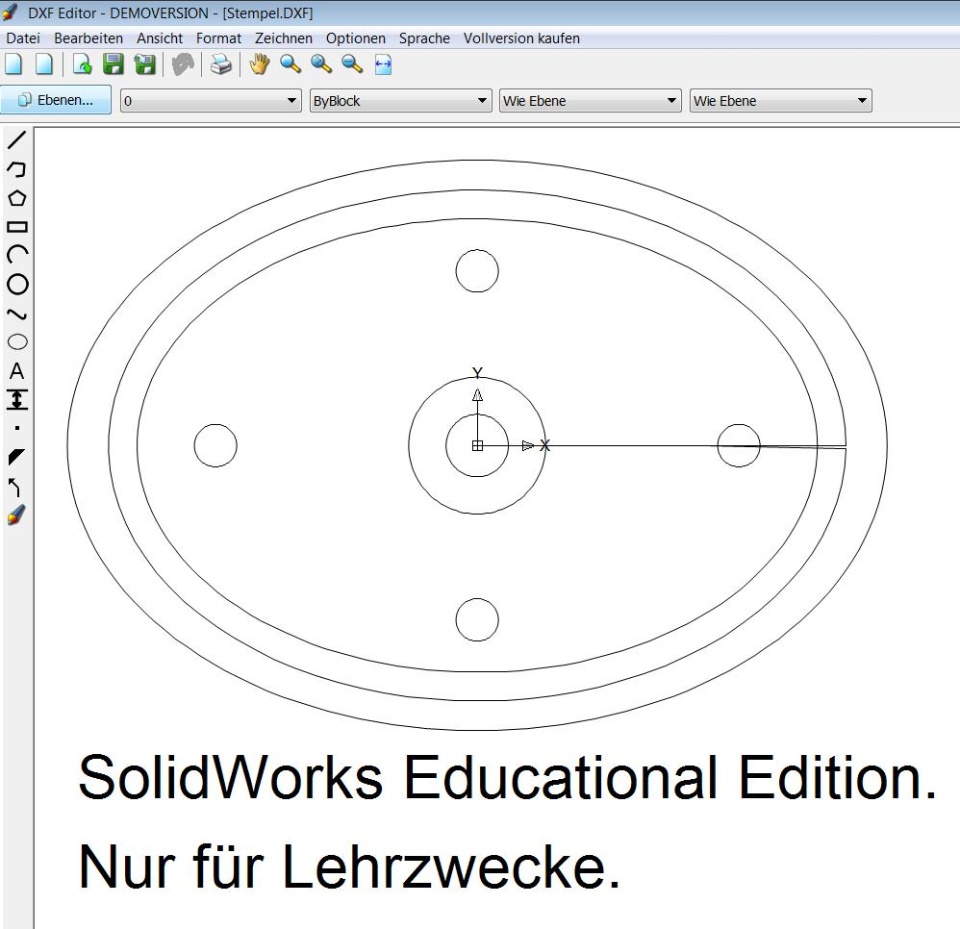

DXF file opened in DXF-Editor (geometry destroyed, last line set to (0;0)?)

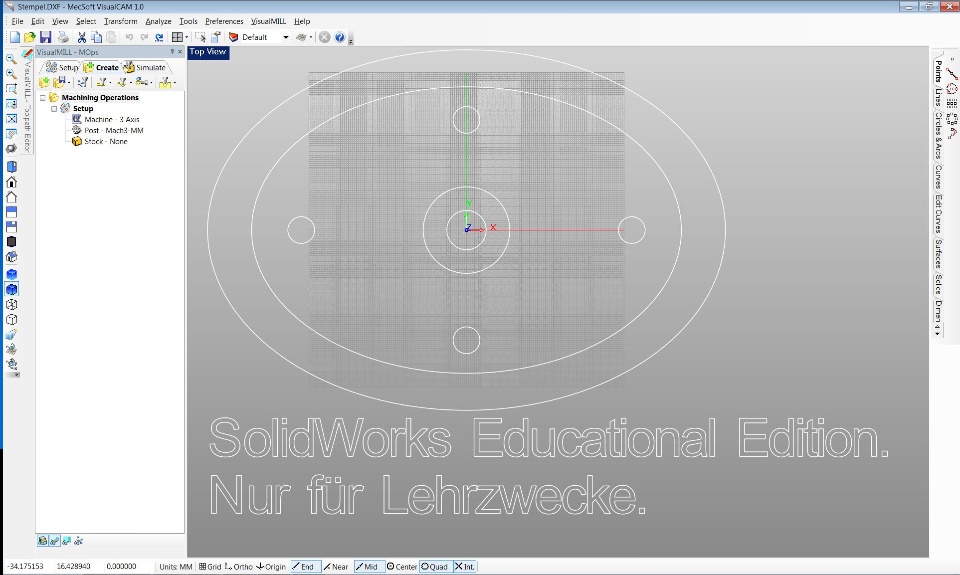

VisualMill (line is completly gone, no milling of the grove possible)

Is this a known bug? Is there a work around? Maybe someone could try to export the view in a non educational Edition (see attached file) .

Thank you for your help.

Best regards,

Sebastian
