How can I add a mate reference to an imported screw that has a fillet edge so that it mates nicely with a hole feature?

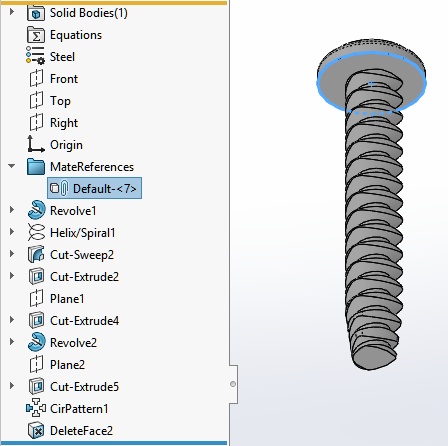

For example, this works fine:

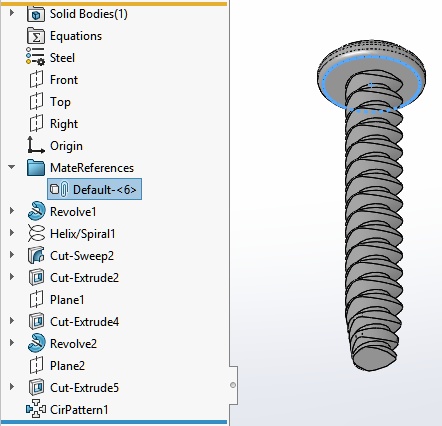

But this does not work:
A screw like the example doesn't have a clean circular edge where the thread and head meet so that is not an option either.
I know I could change the geometry to make an edge that works but I'd like to avoid that. As far as I understand, the second image should work but it's not. Any ideas what's going on?
Examples attached now.
