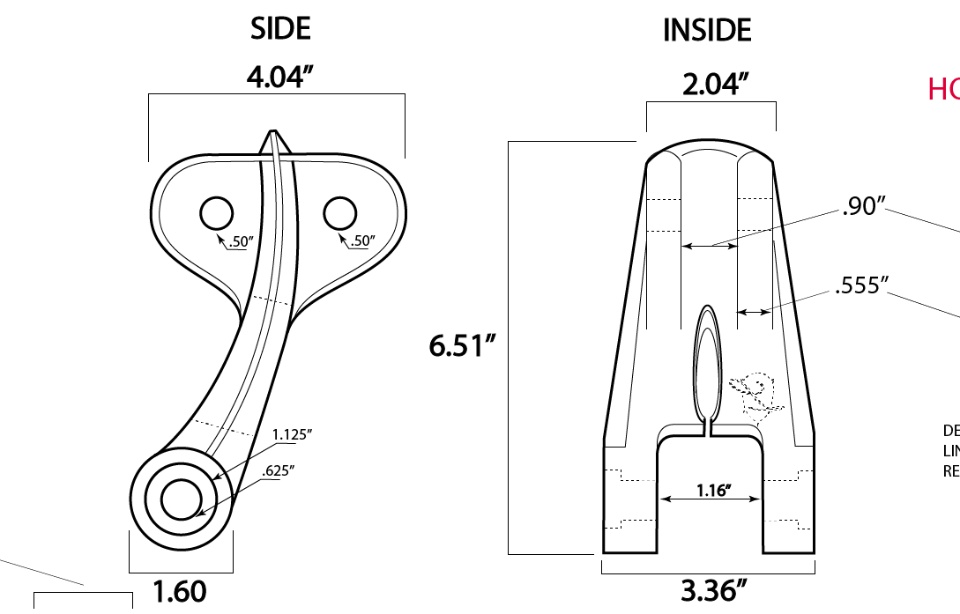

This project may be slightly over my head but could someone provide insight to creating the feature in red line on the attached.   There are no dimensions provided, just going by eyeballing it and coincident relationships.
