Hi everyone,

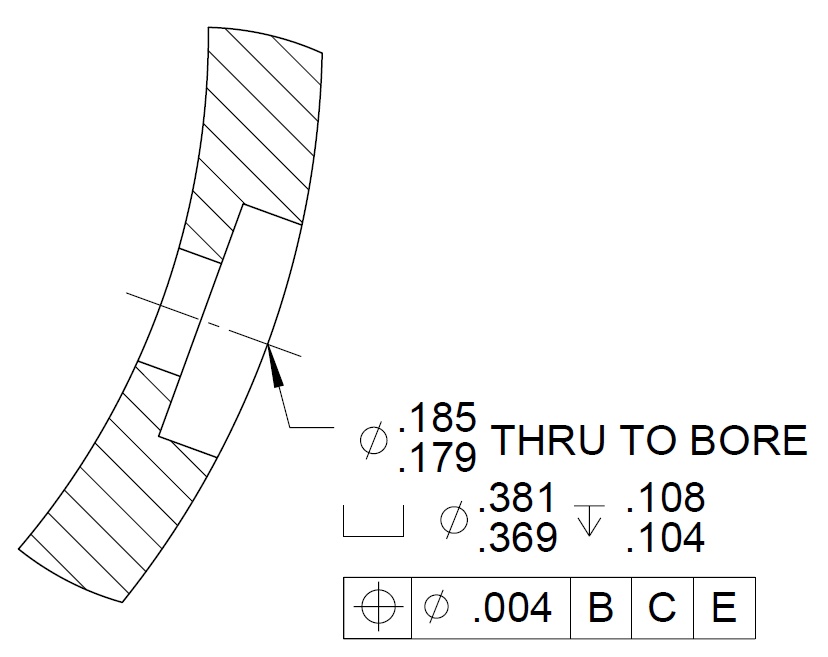

I'm attempting to dimension a counter-bored hole in a section view that shows the hole's cross-section. The hole was not modeled using the hole wizard, but rather a revolved cut. The attached image shows what I'm trying to achieve, with limit tolerances for each of the dimensions. How can I recreate the dimension situation in the attached image? Is there a way to use a note and manually enter the values? If so, how about alignment of the diameter symbol with the limit tolerances?

Thanks,

Andrew
