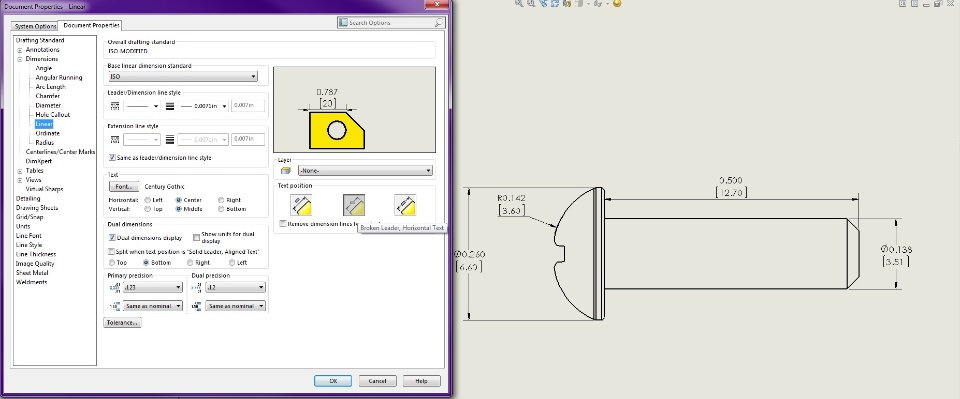

I'm setting up a new drawing template and in testing my settings, I get the scenario below. If I choose Broken Leader, Horizontal Text, my vertical dimensions (the 0.138 diameter and 0.260 diameter) are placed how I want it but the .500 length dimension shows above the dimension line.
If I choose Broken Leader, Aligned Text, my vertical dimensions (the 0.138 diameter and 0.260 diameter) are now obviously aligned along with the .500 dimension but the .500 length dimension shows between the dimension line, which is also what I want.
Is this a bug or is it user error?? I'd like to see all the dimensions reading horizontally and between the dimension lines.
