Hi,

Can anyone please enlighten me on this.

I`m trying to create a section view from a broken drawing view,

but the line is inserted on the wrong position.

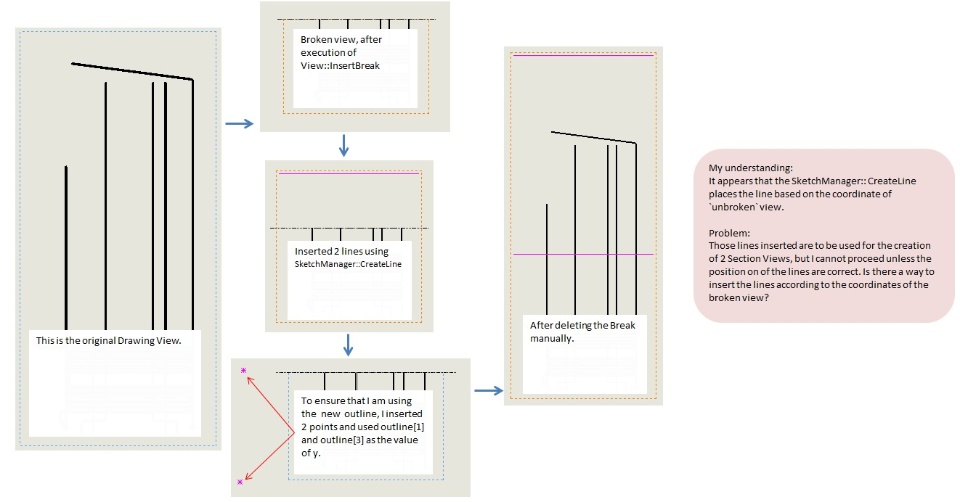

I attached an image for the summary of the process.

If my explanation is not clear, please let me know.

Here`s my code snippet.

double[] viewROutline = ViewR.GetOutline();
SketchSegment sViewALine;
isSuccess = swDrawing.ActivateView(ViewR.Name);
sViewALine = swDocDraw.SketchManager.CreateLine(-(((viewROutline[2] - viewROutline[0]) / 2) * scale[1]), 0, 0, (((viewROutline[2] - viewROutline[0]) / 2) * scale[1]), 0, 0);
// dummy SW line for testing
sViewALine = swDocDraw.SketchManager.CreateLine(-(((viewROutline[2] - viewROutline[0]) / 2) * scale[1]),
                                                                    viewROutline[3] * scale[1], 0, (((viewROutline[2] - viewROutline[0]) / 2) * scale[1]), viewROutline[3] * scale[1], 0);

Thanks in advance.

Joecel
