Hi all,

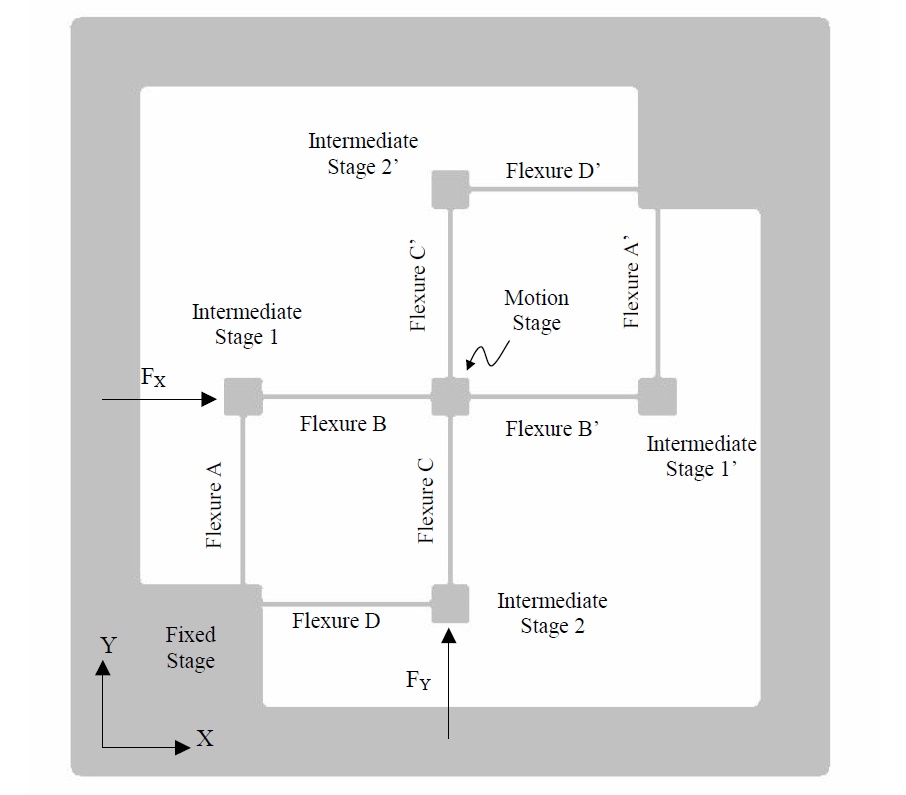

I am using solidworks to simulate the deflection of my stage. The sketch of my stage is shown in the picture. The flexure (thin beam)  shown in the pictureworks like spring and will deflect under forces. When giving Fx or Fy to the stage according to the picture, the moving stage will move as well as rotage.

I want to directly measure moving angle of the stage, how can I do that?

Thanks

best
