Hello,

I want to create a single line 10x inspection template used to verify a profile of a finished part.

Is there a way to detail a selected profile so that there is only a single "Trace" of the feature?

I wanted to keep the associated link to the parent part so i created a drawing from that part.

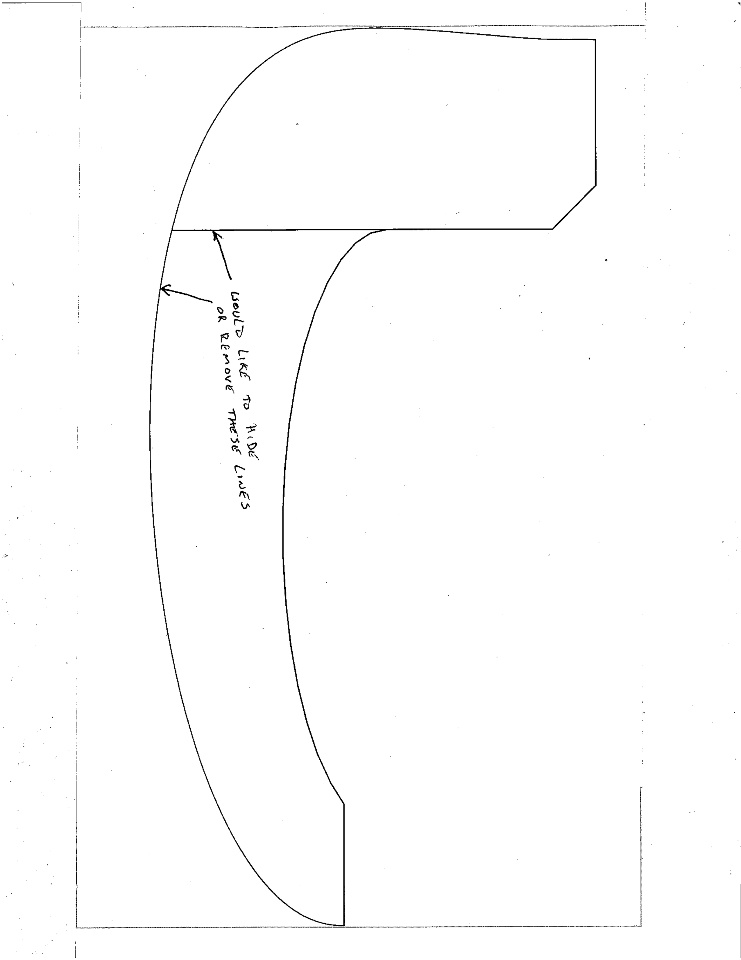

Did a crop detail, it is close but it shows the outline of the crop as well as edge lines.

I was able to hide most of the edge lines but could not hide all as they are part of the resultant profile.

Was hoping for an alternate method.

Any help would be greatly appriciated. Attached is what i have so far.

Thanks
