Hello, this is Lee.
I'm learning to make a plastic mold and injection.

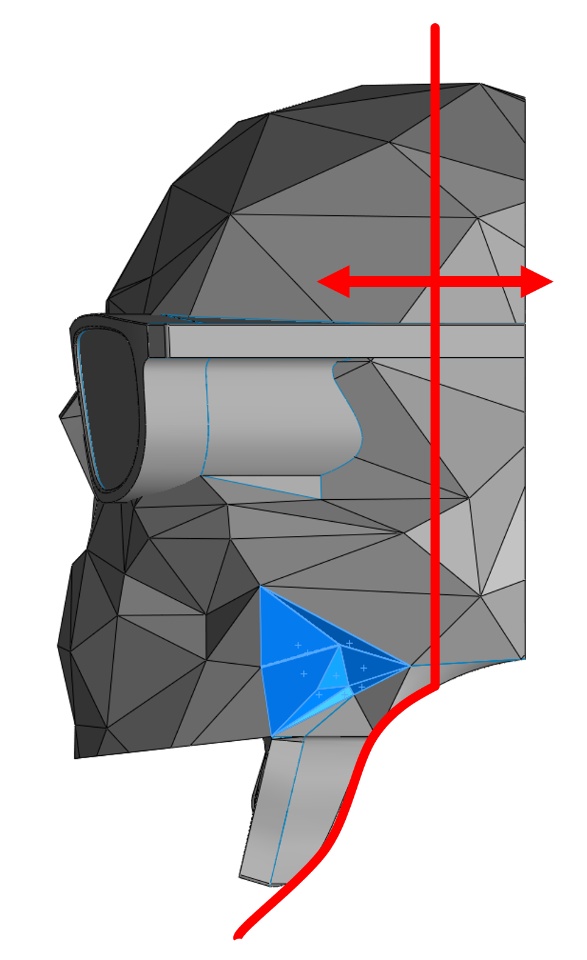

But before going to cavity process, on the way to make product model, I actually couldn't find how to check the angles from core line(Red line on the image) and undercuts(Blue area on the image)
When I handle complicated designs like this, It is hard to check those every problem manually.
I've seen before someone checking those problems for injection mold automatically.
I also attached the modeling file below.
I need your help, smart guys.
Best regards :-)
SolidworksPlastics And Mold Design
