Hi all,

Im trying to create a drawing with part of the model in cross section to show detail. I can get the part to look how I want in the assembly but cant match the cross section in drawings. Any idea how I can get the cross section or even better, is there any way to save the assembly cross section and bring it over to drawings. I know I can save the orientation/view but the cross section doesnt come accross with it.

Any help would be great thanks

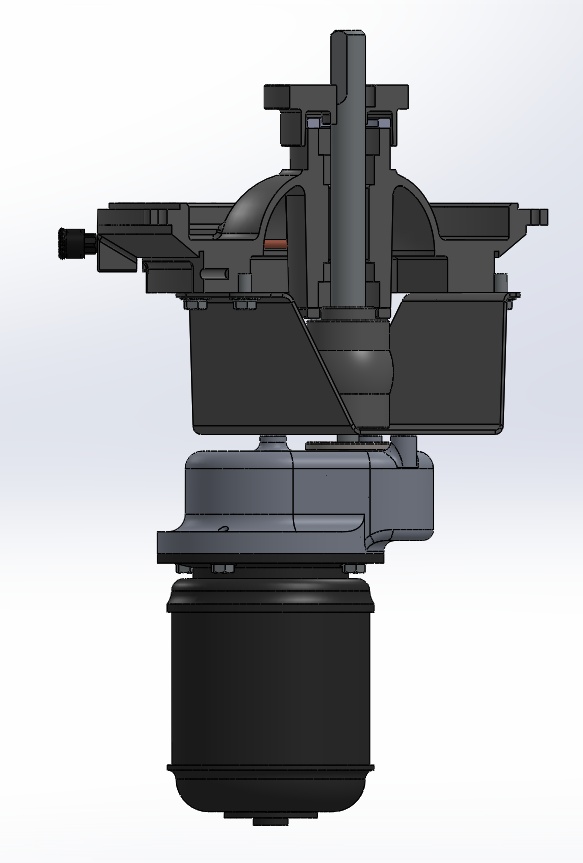

See the pics for detail of the cross section trying to be achieved.

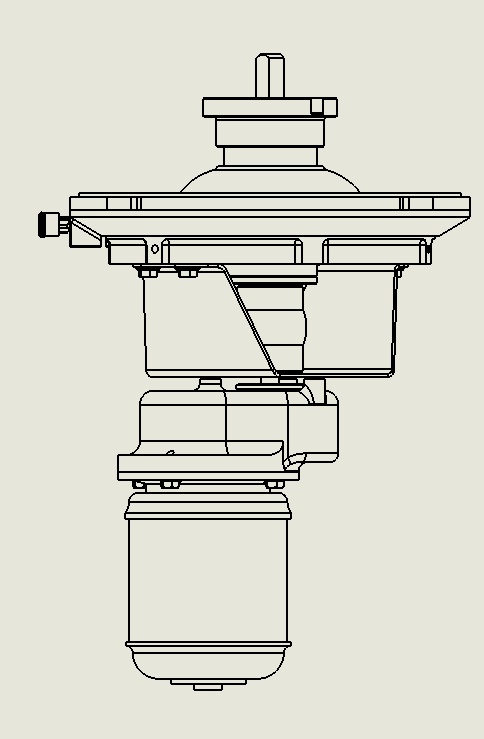

As you can see when inserted onto a drawing the cross section detail is lost.
