hello,

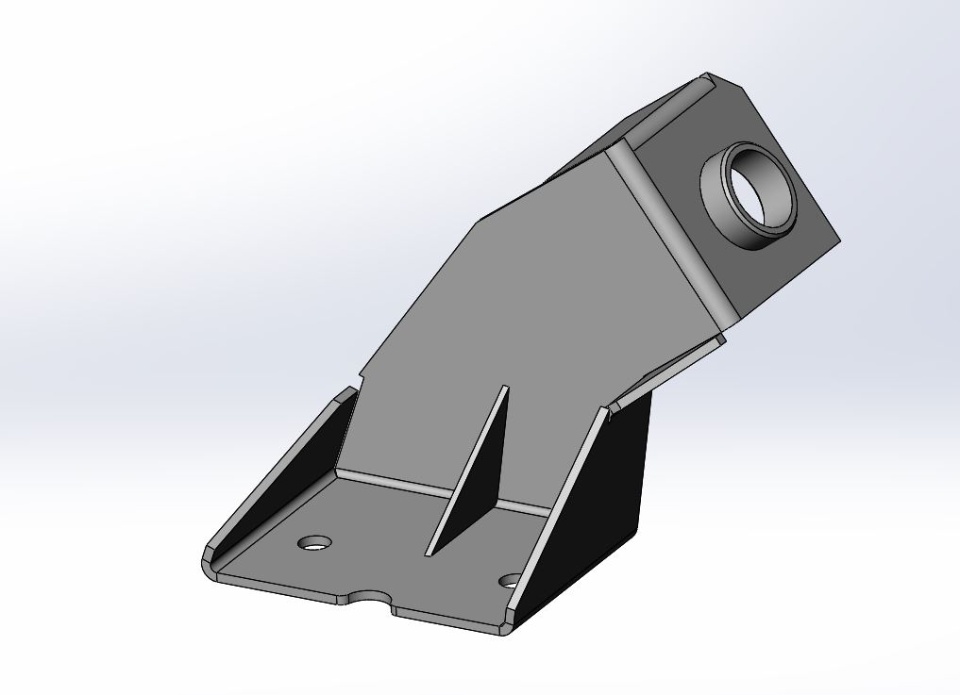

i have the following sheet metal part that has one rib as seen in the pic..

1.the drawing cannot show the flattened part unless i suppres the rib. is it normal?

2. ok. i suppressed the rib and flattened the part , now i want to add the rib to the drawing .HOW do i do that?i want the part and its rib at the same drawing.

can someone please help?

thanks
