Exploded View Route Line not lining up?

SW2017SP2.0, in a simple assembly I tried placing a couple of Route Lines for the drawing. What SW delivers is not what I was expecting.

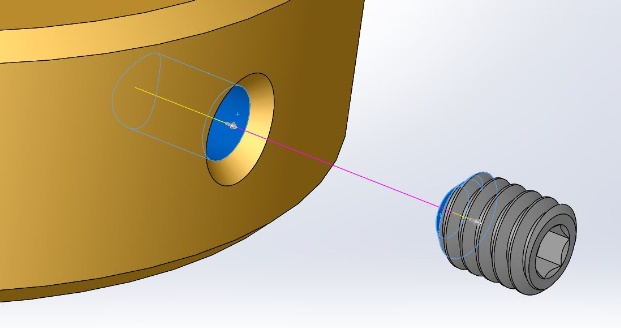

This...

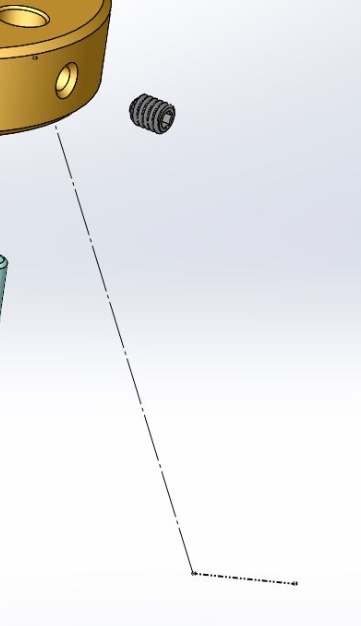

gives this...

All parts are constrained except for axial rotation on the set screw.

Any ideas?

thanks

SolidworksAssemblies
